KEP MS735 Series Instructions Manual

Minibatcher with line frequency time base

Advertisement

Quick Links

Description
:
The MS735 is a special version of our Minibatcher series
batch counter. The standard Minibatcher is modified to bring
a 60Hz (50 Hz)* signal to pin 10 (AC powered units only).
The user has the option of connecting this signal through the
B relay and into the A input. By entering the proper scaling
factor, the user can scale the input to read the desired time
base. EXAMPLE: If the unit is powered with 115VAC @
60Hz, The scaling factor for A can be set to yield different
time bases: i.e. 60 yields seconds, 360 yields minutes & 1/
10, 3600 yields minutes, etc. With a little imagination, this
special can be used in many applications involving batch
timing control. To order this special, add the prefix "MS735"
to the standard Minibatcher part number, i.e. MS735MB2A3.

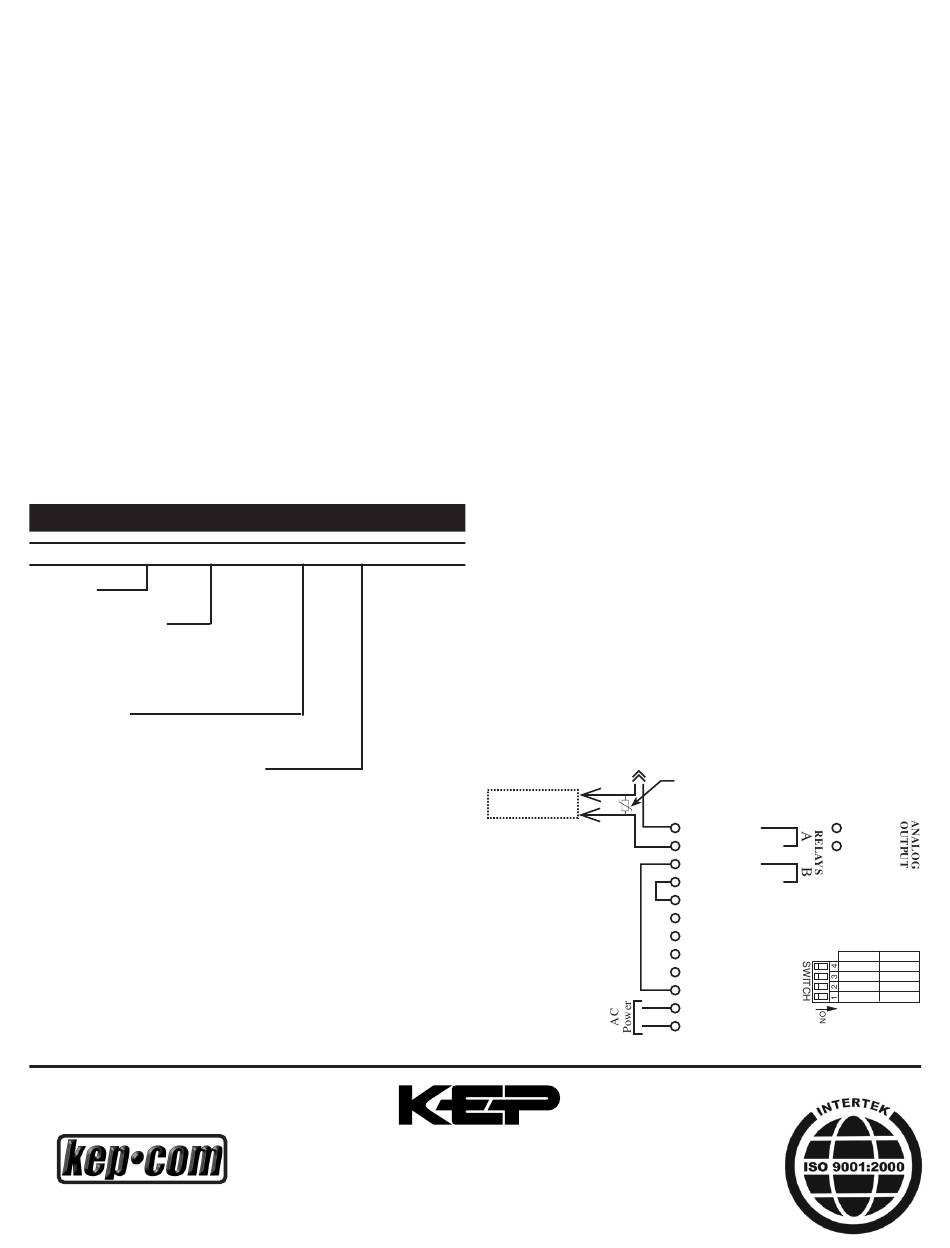

ORDERING NUMBER
Example: MS735MB2
A
Special:
Operating Voltage:
A= 110 VAC ± 15%
B= 220 VAC ± 15%
C= 24 VAC ± 15%
Count Inputs:
Standard, 4-30 VDC pulse inputs.
3 =
Options (Multiple Options Available)
1= RS232 Communications
2= RS422 Communications
A= Analog Output (4-20/0-20 mA)
* NOTE: If the unit is powered with 50 Hz line frequency,
the scaling factor should be adjusted accordingly.
Examples:
50 yields seconds
300 yields minutes & 1/10
3000 yields minutes
http://www.kep.com
99888 07/31/03
MS735 INSTRUCTIONS
MINIBATCHER WITH LINE FREQUENCY TIME BASE
3
1 A
KESSLER-ELLIS PRODUCTS
10 Industrial Way East
Eatontown, NJ 07724
800-631-2165 • 732-935-1320
Fax: 732-935-9344
Application:
This product is useful as a preset time controller with start /
stop function from the front keypad or from a remote location.
The MS735 is used in applications where a process run
time must be controlled and started and/or stopped at the
request of the operator. The Run Time is entered into
Preset A of the MS735. The start button is pressed and
Relay A energizes sending power to the machine
controller. The process begins and the machine runs for
the set run time. When the timer reaches zero, Relay A will
de-energize and turn the machine off. If for any reason
the process needs to be stopped, the Stop button on the
MS735 can be pressed to temporarily stop the process.
The operator can press the Start button to resume the
process or press reset to abort the process and prepare for
a new sequence.
The unit is programmed as follows:
Factor: factor of A = 3600, (Time base for Minutes)
Set Pr (Set to Preset), bA tot ( Batch total = how
Count:
many times the timer was ran), Hi CPS (0-10KHz
input speed).
PrE W ( Pre Warn )
Relay:
Presets: Preset A = Desired run Time, Preset B = 0
Wiring:
To 115 VAC
To Machine Run
Controller
MOV
Recommended
for AC Loads
1- COMMON
13- V+
2- N.O.(N.C./NPN)
14- I SINK
3- COMMON
4- N.O.(N.C./NPN)
5- COUNT
6- START
7- +12VDC OUT/+DC IN
8- -DC (GROUND)
OFF
RUN
9- STOP/RESET
4-20mA
RATE
10- 60Hz 15V OUT
RUN
11- A.C. INPUT
12- A.C. INPUT
ON
CAL.
0-20mA
COUNT
SET
