figure 5.5a
figure 3c
Keep all fuel and fuel fumes away
from the unit when grinding or weld-
ing. Work only in a well ventilated
area.
figure 5.5b
Lip
Overlap
Piece
Stop
Weld
Piece
Weld
ODB COMPANY
Service Section

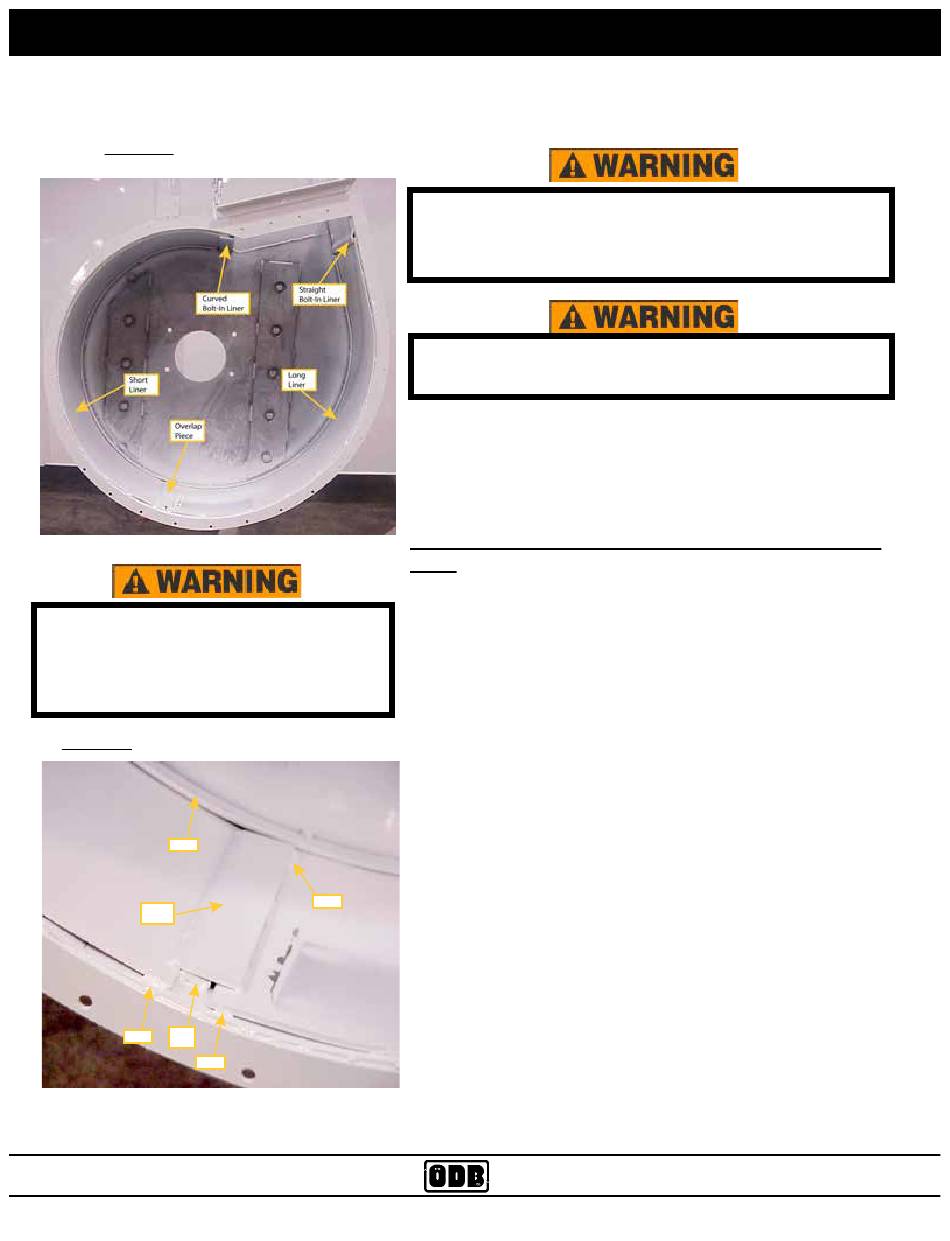

5.5 Replacing the Blower Housing Liners; continued,

Thoroughly read and understand the safety and
pre-operating sections of this manual before work-
ing on the unit.
Make sure the negative battery cable is discon-
nected before opening the blower housing.
Review the safety section of this manual before attempt-
ing these procedures. To gain access to the interior of the
blower housing please see the previous sections.
Installing the Liners (refer to 5.5a and 5.5b), contin-
ued;
3.
4.
5.
Weld
Install the long liner the same way as the short
liner except the long liner should slip under the
overlap piece. Make sure the liner slips under the
rear lip and the overlap piece.
Tack weld the long liner to the overlap piece and
tack weld around the liner as you did on the short
liner.
Install the two bolt-in liners just as they were
removed.
800-446-9823
71
SCL800SM3X
