Iqan Display System And Controls - Overview - ODB SCL800SM-3X Owner's Manual

Emergency
Stop Button
IQAN Display
System
Up Button:
This button is used to navigate through the various display pages, menus and lists. Also used to in-
crease the throttle of the engine.
OK Button Switch:
This button is used to confirm selections as well as go the main menu. NOTE: Pressing the OK button
when take you to the Startup Greeting page (Shown above) on most screens.
Down Button:
This button is used to navigate through the various display pages, menus and lists. Also used to de-
crease the throttle of the engine.
Menu Button:
This button is used to access the System menu.
ODB COMPANY
Pre-Operating Section

2.1 IQAN Display System and Controls - Overview

Control Station:
F1 Button F2 Button F3 Button F4 Button
Function Buttons

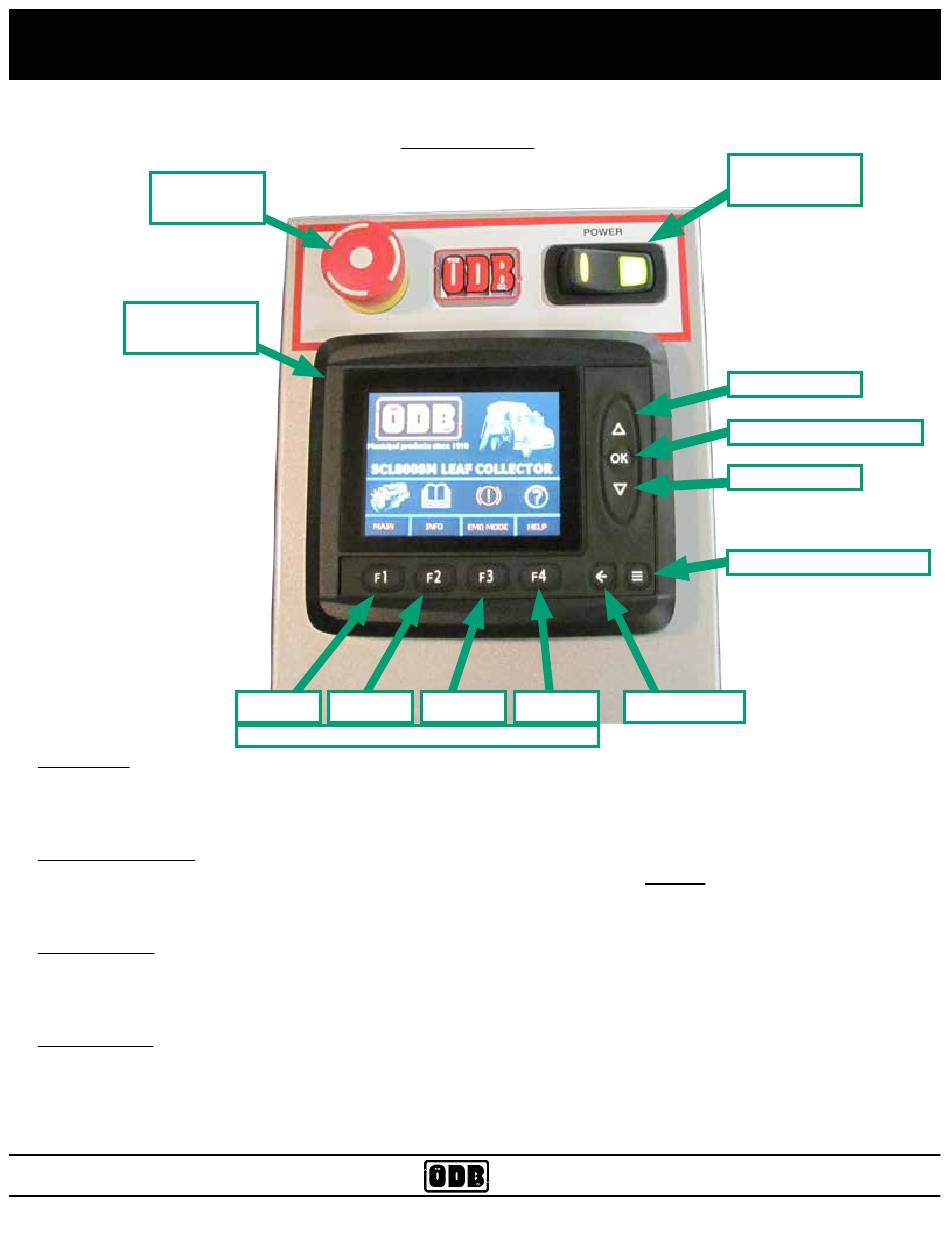

Figure 2.1A
800-446-9823
Power Switch
Up Button
OK Button /Greeting
Down Button
System Menu Button
Return Button
SCL800SM3X
