Maxxair 5100KI Installation Instructions, Information And Operating Manual

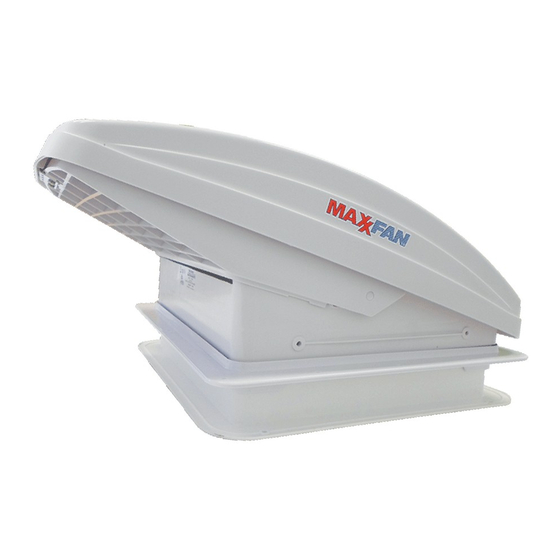

MAXXFAN
INSTALLATION INSTRUCTIONS,
Information And Operating Guide
5100KI40 • 6200KI40 • 7000KI40 • 7500KI40
READ AND SAVE THESE INSTRUCTIONS
NOTE: Refer to supplied Operating Instructions regarding the model you have purchased.
The MAXXFAN installs into a standard RV roof opening of 355mm x 355mm for KI models
and 400mm x 400mm for KI40 models.
To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish
trim ring of your existing roof vent and measure the ceiling opening or verify the opening is
large enough by sliding the MAXXFAN interior garnish trim ring into the opening.
Due to the EXHAUST / INTAKE LOUVERS that face the rear of the vehicle, the MAXXFAN
requires a roof area clear of obstructions such as air conditioners, storage boxes, etc. for at
least 203 mm to the rear of the existing standard roof vent flange outer rear edge.
The MAXXFAN is designed for a minimum roof thickness of 25mm to a maximum of
90mm. If your roof thickness is less than 25mm, build additional thickness at the ceiling
opening using wood or other suitable material. Longer Ganish Rings are available to allow
installation in caravans with thicker roof sections.
The MAXXFAN is designed for a nominal 12 Volt DC system and requires a circuit capable
of supplying a minimum of 5 amps to the MAXXFAN. Confirm that the circuit you intend
to use will accommodate the additional load.
electrical connections.
WARNING!
in the manner intended by AIRXCEL, INC. Should you have questions, please contact
your AIRXCEL/MAXXAIR Distributor.
FOR MAXXFAN
5100KI • 6200KI • 7000KI • 7500KI
To reduce risk of fire, injury to persons or damage to property, use only
"More information https://www.caravansplus.com.au"
Deluxe MODELS
®
Use the proper gauge stranded wire for
®
P/N: 11-90001KI
REV NEW, 05-08-2015
