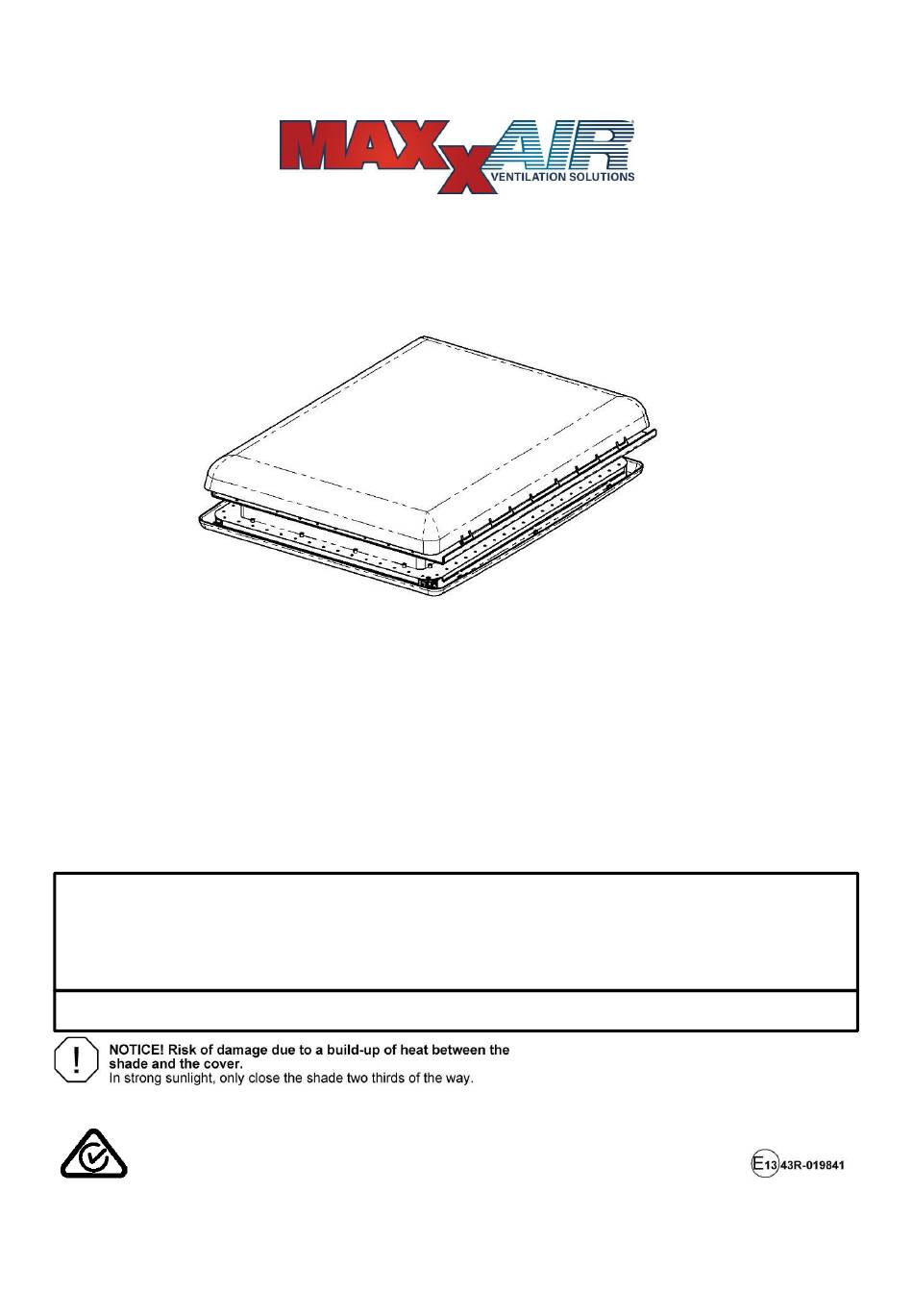

INSTALLATION, OPERATION AND MAINTENANCE
®
MAXXAIR
NOTE: Refer to Installation Instructions, Information and Operation Guides regarding the model you have purchased.

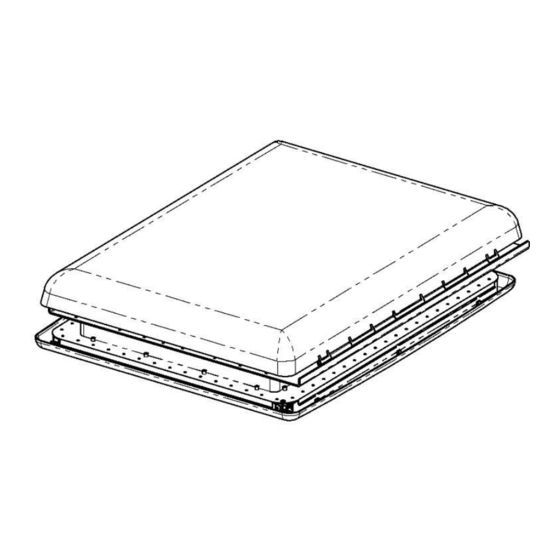

The SKYMAXX Rooflight installs into a roof opening of 700 mm x 500 mm (27.56 in. x 19.70 in.).
To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish trim ring of your existing roof vent and
measure the ceiling opening or verify the opening is large enough by sliding the Rooflight interior ceiling flange into the opening.
The 97100iA & 97110iA Rooflight is designed for a minimum roof thickness 23 mm to 42 mm maximum. (1.0 inch to 1.65 inches).
The 97000iA & 97010iA Rooflight is designed for a minimum roof thickness 42 mm to 60 mm maximum. (1.65 inches to 2.36 inches).
The LED lighted Rooflight requires a minimum 12 Volt DC, 2 amp service. Confirm that the circuit you intend to use will accommodate
the additional load. Circuit must be fused and use appropriate gauge, stranded wire for electrical connections.
NOTE: Wall Control for LED lights must be provided by installer.
NOTE: THE ROOFLIGHT MUST BE CLOSED PRIOR TO TRANSPORTING OR MOVING THE CARAVAN.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a) Use this unit only in the manner intended by AIRXCEL, INC. If you have questions, contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means
to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag, to the service panel.
CAUTION! FOR GENERAL VENTILATION USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS OR VAPORS
INSTRUCTIONS FOR
SKYMAXX LX
READ AND SAVE THESE INSTRUCTIONS
.
P/N: 11C90029iA
More information https://www.caravansplus.com.au
97000iA, 97010iA, 97100iA, 97110iA
10-2019
Advertisement
Related Manuals for Maxxair SKYMAXX LX 97000iA
Summary of Contents for Maxxair SKYMAXX LX 97000iA
- Page 1 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR ® MAXXAIR SKYMAXX LX 97000iA, 97010iA, 97100iA, 97110iA READ AND SAVE THESE INSTRUCTIONS NOTE: Refer to Installation Instructions, Information and Operation Guides regarding the model you have purchased. The SKYMAXX Rooflight installs into a roof opening of 700 mm x 500 mm (27.56 in. x 19.70 in.).
- Page 2 This page intentionally left blank More information https://www.caravansplus.com.au...
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS STEP 1 SKYMAXX Model Roof Opening 00-97000iA, 00-97100iA 700 mm x 500 mm 00-97010iA, 00-97110iA Refer to the above table for roof size opening. If you are replacing another type already installed, remove the old existing roof vent. Remove all old roof sealant for a minimum of 5 cm (2 inches) entirely around the roof opening. - Page 4 Interior Shroud. This ensures that the clips on the Interior Shroud will engage the channels on the Ceiling Flange to lock it in place. This completes the installation of the MAXXAIR SKYMAXX ROOFLIGHT More information https://www.caravansplus.com.au...
- Page 5 NOTE: THE ROOFLIGHT MUST BE CLOSED PRIOR TO TRANSPORTING OR MOVING THE CARAVAN. USER SERVICING INSTRUCTIONS Cleaning of your MAXXAIR SKYMAXX ROOFLIGHT may be achieved with mild soap and water only. DO NOT USE ABRASIVE CLOTH ON ROOFLIGHT COVER. It is advisable when the Rooflight is open to keep the screen and/or shade covering the Rooflight opening.
- Page 6 CAUTION! Disconnect main vehicle power before connecting 12 volt DC power to the MAXXAIR ROOFLIGHT! STEP 10 Insert the 12 volt DC power supply wires into the large diameter hole in the interior flange, allowing 4 to 6 inches of wire to hang out.
- Page 7 The amount of screen versus shade can be adjusted to your preference. Cleaning of your MAXXAIR SKYMAXX ROOFLIGHT may be achieved with mild soap and water only. DO To close the SKYMAXX ROOFLIGHT, move the handle...
- Page 8 PLACE CONSUMER LABEL HERE For additional product information please visit www.AIRXCEL.com AIRXCEL, INC. - RV Products Division / MAXXAIR More information https://www.caravansplus.com.au...
