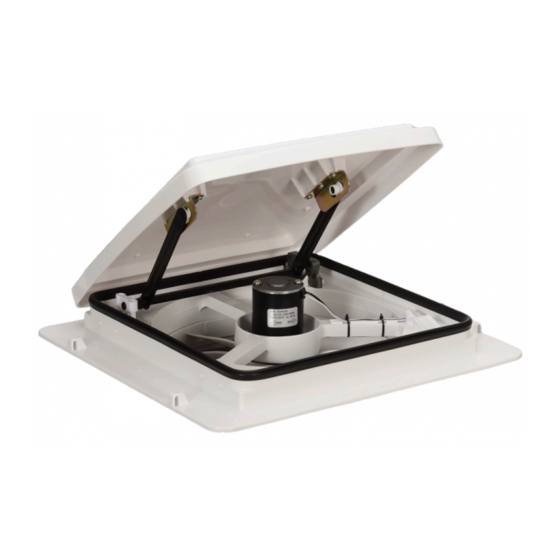

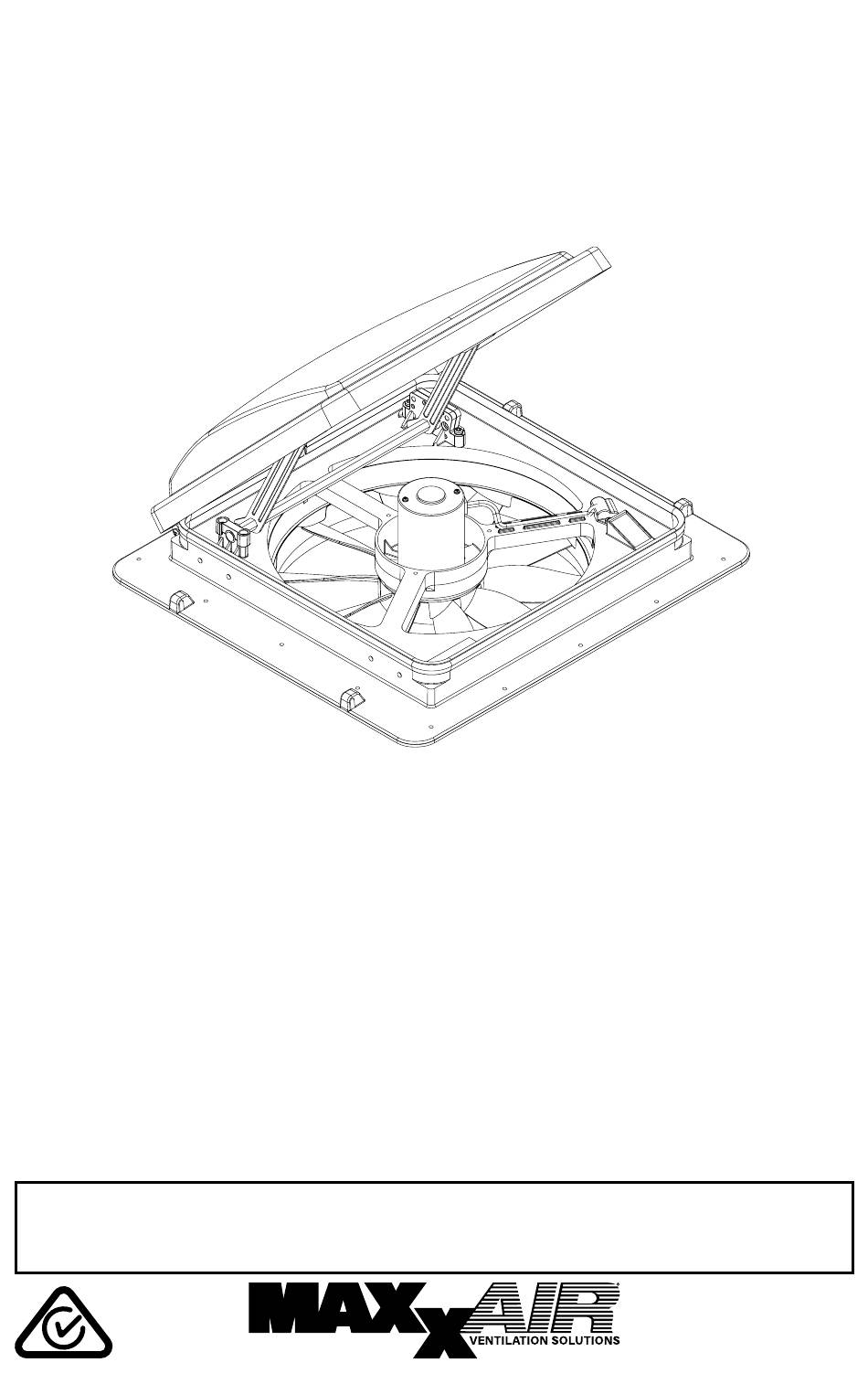

Maxxair MAXXFAN Plus 4000KI Installation Instructions, Information And Operating Manual

MAXXFAN
INSTALLATION INSTRUCTIONS,
Information And Operating Guide
FOR MAXXFAN
READ AND SAVE THESE INSTRUCTIONS
NOTE: Refer to supplied Operating Instructions regarding the model you have purchased.
The MAXXFAN installs into a standard Caravan roof opening of 355mm by 355mm.
To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish
trim ring of your existing roof vent and measure the ceiling opening or verify the opening is
large enough by sliding the MAXXFAN interior Garnish trim ring into the opening.
The MAXXFAN is designed for a minimum roof thickness of 50mm to a maximum of
110mm. If your roof thickness is less than 50mm, build additional thickness at the ceiling
opening using wood or other suitable material. Longer Garnish Rings are available to allow
installation in caravans with thicker roof sections.
The MAXXFAN is designed for a nominal 12 Volt DC system and requires a circuit capable
of supplying a minimum of 5 amps to the MAXXFAN. Confirm that the circuit you intend
to use will accommodate the additional load.
electrical connections.
WARNING!
in the manner intended by AIRXCEL, INC. Should you have questions, please contact
your AIRXCEL/MAXXAIR Distributor.
Plus MODELS 4000KI • 4500KI • 4540KI
®
To reduce risk of fire, injury to persons or damage to property, use only
Use the proper gauge stranded wire for
®
P/N: 11C90000KI
REV C, 01-2016
