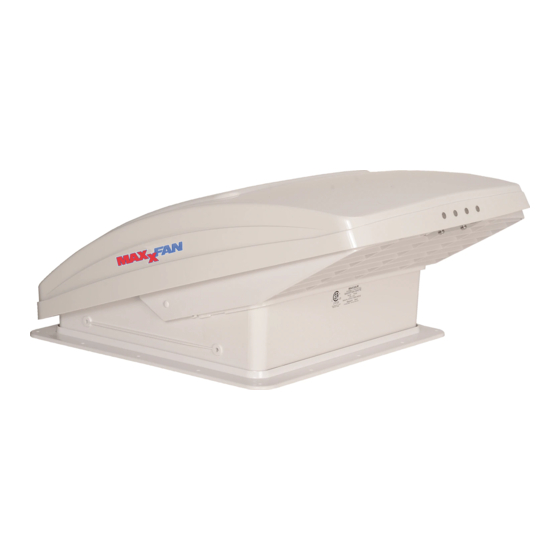

MAXXFAN

INSTALLATION INSTRUCTIONS,

INFORMATION AND OPERATING GUIDE
FOR ALL MAXXFAN
5100K, 5101K, 5301K, 6200K, 6201K, 6401K,
7000K, 7001K, 7500K, 7501K, 8000K, 8001K,
8500K, 8501K, 8700K, 8751K, 8900K, 8951K
READ AND SAVE THESE INSTRUCTIONS
NOTE: Refer to supplied Operating Instructions regarding the model you have purchased.
The MAXXFAN installs into a standard RV roof opening of 14" x 14".
To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish
trim ring of your existing roof vent and measure the ceiling opening or verify the opening is
large enough by sliding the MAXXFAN interior garnish trim ring into the opening.
Due to the EXHAUST / INTAKE LOUVERS that face the rear of the vehicle, the MAXXFAN
requires a roof area clear of obstructions such as air conditioners, storage boxes, etc. for at
least 8" to the rear of the existing standard roof vent flange outer rear edge.
The MAXXFAN is designed for a minimum roof thickness of 1 1/8" to a maximum of 6 1/2".
If your roof thickness is less than 1 1/8", build additional thickness at the ceiling opening
using wood or other suitable material.
The MAXXFAN requires a minimum 12 Volt DC, 5 amp service. Confirm that the circuit
you intend to use will accommodate the additional load. Use the proper gauge stranded
wire for electrical connections.
WARNING!
in the manner intended by AIRXCEL, INC. Should you have questions, please contact
AIRXCEL/MAXXAIR VENTILATION SOLUTIONS Customer Service at 316.832.4357.
To reduce risk of fire, injury to persons or damage to property, use only
Deluxe MODELS
®
®
P/N: 11C90001K
07-2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXXFAN Deluxe 5100K and is the answer not in the manual?

Questions and answers

Summary of Contents for Maxxair MAXXFAN Deluxe 5100K

  • Page 1: Installation Instructions

    WARNING! To reduce risk of fire, injury to persons or damage to property, use only in the manner intended by AIRXCEL, INC. Should you have questions, please contact AIRXCEL/MAXXAIR VENTILATION SOLUTIONS Customer Service at 316.832.4357. P/N: 11C90001K 07-2016...
  • Page 2 INSTALLATION INSTRUCTIONS - ALL MODELS STEP 1 showing (+) must be connected to the vehicle 12 volt (+) MAXXFAN requires a roof opening of 14” x 14”. If you positive supply. are replacing another type already installed, remove the old existing roof vent. Remove all old roof sealant for a STEP 4 minimum of 2”...
  • Page 3 STEP 6 The interior Garnish Trim Ring must be trimmed to fit your particular RV roof thickness. To accomplish this, measure the distance from the vehicle ceiling surface to each corner of the MAXXFAN Control Plate. Most RV roofs have some slope, so measuring each corner is necessary.
  • Page 4: Year Limited Warranty

    We invite your comments and suggestions regarding our products. Any information you supply is for AIRXCEL / MAXXAIR’s internal use and will not be shared or sold to others. The Serial Number for your MAXXFAN is located on the back page of this booklet and on the fan control plate under the round insect screen frame.
  • Page 5: Keypad Controls

    INFORMATION AND OPERATING GUIDE KEYPAD FOR MAXXFAN Deluxe MODELS ® 5301K • 6401K KNOB, VENT LID OPEN/CLOSE Manual Opening Pull to unlock prior to turning. Rotate Knob clockwise to Close Vent Lid; Rotate Knob counter-clockwise to Open Vent Lid. Push “IN”...
  • Page 6: Serial Number Label

    INFORMATION AND OPERATING GUIDE KEYPAD FOR MAXXFAN Deluxe MODELS ® 5100K, 5101K, 6200K, 6201K, 7000K, 7001K, 7500K, 7501K, 8000K, 8001K, 8500K, 8501K KNOB, VENT LID OPEN/CLOSE Manual Opening Models Pull to unlock prior to turning. Rotate Knob clockwise to Close Vent Lid; Rotate Knob counter-clockwise to Open Vent Lid.
  • Page 7 KEYPAD CONTROLS KEYPAD CONTROLS KEYPAD FOR KEYPAD FOR MAXXFAN Deluxe MAXXFAN Deluxe ® ® INTAKE/EXHAUST MODELS EXHAUST ONLY MODELS 5100K, 6200K, 7000K, 7500K, 5101K, 6201K, 7001K, 7501K 8000K, 8500K 8001K, 8501K NOTE: A beeping sound will confirm each key press ON/OFF: Use this key to start the fan or to turn off the fan.
  • Page 8: Low Battery Indicator

    REMOTE CONTROL OPERATING GUIDE WIRELESS REMOTE CONTROL FOR MAXXFAN Deluxe MODELS 7000K • 7500K ® Optional for 8000K, 8500K, 8700K, 8900K Models FAN ON & POWER OFF - Press this button: Remove protective film from • To start the fan Display Screen •...
  • Page 9 REMOTE CONTROL OPERATING GUIDE WIRELESS REMOTE CONTROL FOR MAXXFAN Deluxe MODELS 7001K • 7501K ® Optional for 8001K, 8501K Models FAN ON & POWER OFF - Press this button: Remove protective film from • To start the fan Display Screen •...
  • Page 10 OPERATION GUIDE - 1-SWITCH WALL CONTROL FOR USE WITH MAXXFAN Deluxe MANUAL OPENING Models ® 5100K, 5101K, 5301K, 6200K, 6201K OPERATION OF 1-SWITCH WALL CONTROL When Fan is running, select LOW, Turns the fan motor ON at the last MEDIUM or HIGH Speed. Once FAN 1-2-3 selected speed and OPENS the...
  • Page 11 OPERATION GUIDE - 5 KEY WALL CONTROL OPTIONAL FOR MAXXFAN Deluxe Models 7001K • 7501K • 8001K • 8501K ® OPERATION OF 5 KEY WALL CONTROL Turns the fan motor ON at the last selected speed and OPENS the Vent Lid. Turns the fan motor OFF and CLOSES Vent Lid.
  • Page 12 . . . reinventing comfort! PLACE CONSUMER LABEL HERE For additional product information please visit www.AIRXCEL.com AIRXCEL, INC. - RV Products Division / MAXXAIR 3050 N. St. Francis St. • Wichita, KS 67219 • 316.832.3400...
