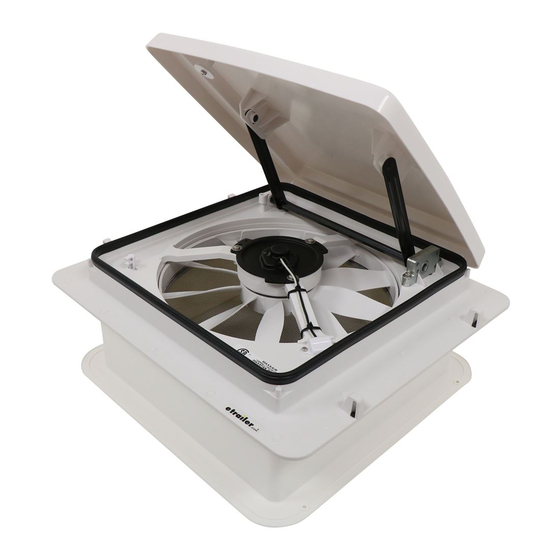

MAXXFAN
INSTALLATION INSTRUCTIONS,
INFORMATION AND OPERATING GUIDE
for MAXXFAN
for MAXXFAN
4000K, 4001K, 4002K, 4050K, 4201KW, 4251KW,
4301K, 4401K, 4500K, 4501K, 4541K, 4700K, 4751KS,
4761KS, 4800K, 4801K, 4900K, 4951KS
READ AND SAVE THESE INSTRUCTIONS
NOTE: Refer to Installation Instructions, Information and Operation Guides regarding the
model you have purchased.
The MAXXFAN installs into a standard RV roof opening of 14 by 14 inches.
To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish
trim ring of your existing roof vent and measure the ceiling opening or verify the opening is
large enough by sliding the MAXXFAN interior Garnish trim ring into the opening.
The MAXXFAN Mini is designed for a minimum roof thickness of 1 inch to a maximum
of 6 1/2 inches.
The MAXXFAN/MAXXFAN Plus is designed for a minimum roof thickness of 2 inches
to a maximum of 6 1/2 inches. If your roof thickness is less than 2 inches, build additional
thickness at the ceiling opening using wood or other suitable material.
The MAXXFAN requires a minimum 12 Volt DC, 5 amp service. Confirm that the circuit
you intend to use will accommodate the additional load. Use the proper gauge stranded
wire for electrical connections.
WARNING!
in the manner intended by AIRXCEL, INC. Should you have questions, please contact
AIRXCEL/MAXXAIR VENTILATION SOLUTIONS Customer Service at 316.832.4357.
Mini MODELS 4301M and 4401M
®
and MAXXFAN
®
To reduce risk of fire, injury to persons or damage to property, use only
Plus MODELS
®
®
P/N: 11F90000K
01-2018
Advertisement
Related Manuals for Maxxair Maxxfan Mini 4301M
Summary of Contents for Maxxair Maxxfan Mini 4301M
- Page 1 WARNING! To reduce risk of fire, injury to persons or damage to property, use only in the manner intended by AIRXCEL, INC. Should you have questions, please contact AIRXCEL/MAXXAIR VENTILATION SOLUTIONS Customer Service at 316.832.4357. P/N: 11F90000K 01-2018...
- Page 2 INSTALLATION INSTRUCTIONS - ALL MODELS STEP 3 STEP 1 MAXXFAN requires a 14” x 14” roof opening, if Using the insulated 16 gauge electrical connectors you are replacing another type already installed, provided, connect the vehicle’s 12 volt power to the two MAXXFAN power wires located on the remove the old existing roof vent.
- Page 3 STEP 6 IR RECEIVER The interior Garnish Trim Ring must be trimmed to fit your particular RV roof thickness. accomplish this, measure the distance from the vehicle ceiling surface to each corner of the MAXXFAN Control Plate. 3 1/2” Most RV roofs have some slope, so measuring each corner is necessary.
-
Page 4: Year Limited Warranty
We invite your comments and suggestions regarding our products. Any information you supply is for AIRXCEL / MAXXAIR’s internal use and will not be shared or sold to others. The Serial Number for your MAXXFAN is located on the back page of this booklet and on the fan control plate under the round insect screen frame. -
Page 5: Keypad Controls
INFORMATION AND OPERATING GUIDE FOR MAXXFAN MANUAL OPENING KEYPAD MODELS ® 4301M • 4401M • 4201KW • 4251KW • 4301K • 4401K KNOB, VENT LID OPEN/CLOSE Manual Opening - Pull to unlock prior to turning. Rotate Knob clockwise to Close Vent Lid;... - Page 6 INFORMATION AND OPERATING GUIDE FOR MAXXFAN Plus MODELS ® 4000K, 4001K, 4002K, 4050K, 4500K, 4501K, 4541K, 4761KS, 4800K, 4801K KNOB, VENT LID OPEN/CLOSE Manual Opening Models Pull to unlock prior to turning. Rotate Knob clockwise to Close Vent Lid; Rotate Knob counter-clockwise to Open Vent Lid.
- Page 7 KEYPAD CONTROLS KEYPAD CONTROLS FOR MAXXFAN FOR MAXXFAN Plus Plus ® ® INTAKE/EXHAUST MODELS EXHAUST ONLY MODELS 4000K, 4002K, 4050K, 4001K, 4501K, 4541K, 4500K, 4800K 4761KS, 4801K NOTE: A beeping sound will confirm each key press ON/OFF: Use this key to start the fan or to tum off the fan. On Automatic Opening Models the lid will also open or close when the fan is turned on or off.
- Page 8 REMOTE CONTROL OPERATING GUIDE WIRELESS REMOTE CONTROL FOR MAXXFAN Plus MODEL 4500K ® OPTIONAL for MAXXFAN Plus MODELS 4700K, 4800K, 4900K ® FAN ON & POWER OFF - Press this button: • To start the fan Remove protective film from •...
- Page 9 REMOTE CONTROL OPERATING GUIDE WIRELESS REMOTE CONTROL FOR MAXXFAN Plus MODELS 4501K, 4541K ® OPTIONAL for MAXXFAN Plus MODEL 4801K ® FAN ON & POWER OFF - Press this button: Remove protective film from • To start the fan Display Screen •...
- Page 10 OPERATION GUIDE - 1-SWITCH WALL CONTROL FOR USE WITH MAXXFAN MANUAL OPENING Models ® 4000K, 4001K, 4002K, 4050K OPERATION OF 1-SWITCH WALL CONTROL When Fan is running, select LOW, Turns the fan motor ON at the last MEDIUM or HIGH Speed. Once FAN 1-2-3 selected speed...
- Page 11 OPERATION GUIDE - 5 KEY WALL CONTROL OPTIONAL FOR MAXXFAN Plus Models 4501K, 4541K, 4801K ® OPERATION OF 5 KEY WALL CONTROL Turns the fan motor ON at the last selected speed and OPENS the Vent Lid. Turns the fan motor OFF and CLOSES Vent Lid. ON/OFF Pressing this key when in AUTO mode will cause the fan to exit AUTO mode.
- Page 12 . . . reinventing comfort! PLACE CONSUMER LABEL HERE For additional product information please visit www.AIRXCEL.com AIRXCEL, INC. - RV Products Division / MAXXAIR 3050 N. St. Francis St. • Wichita, KS 67219 • 316.832.3400...
