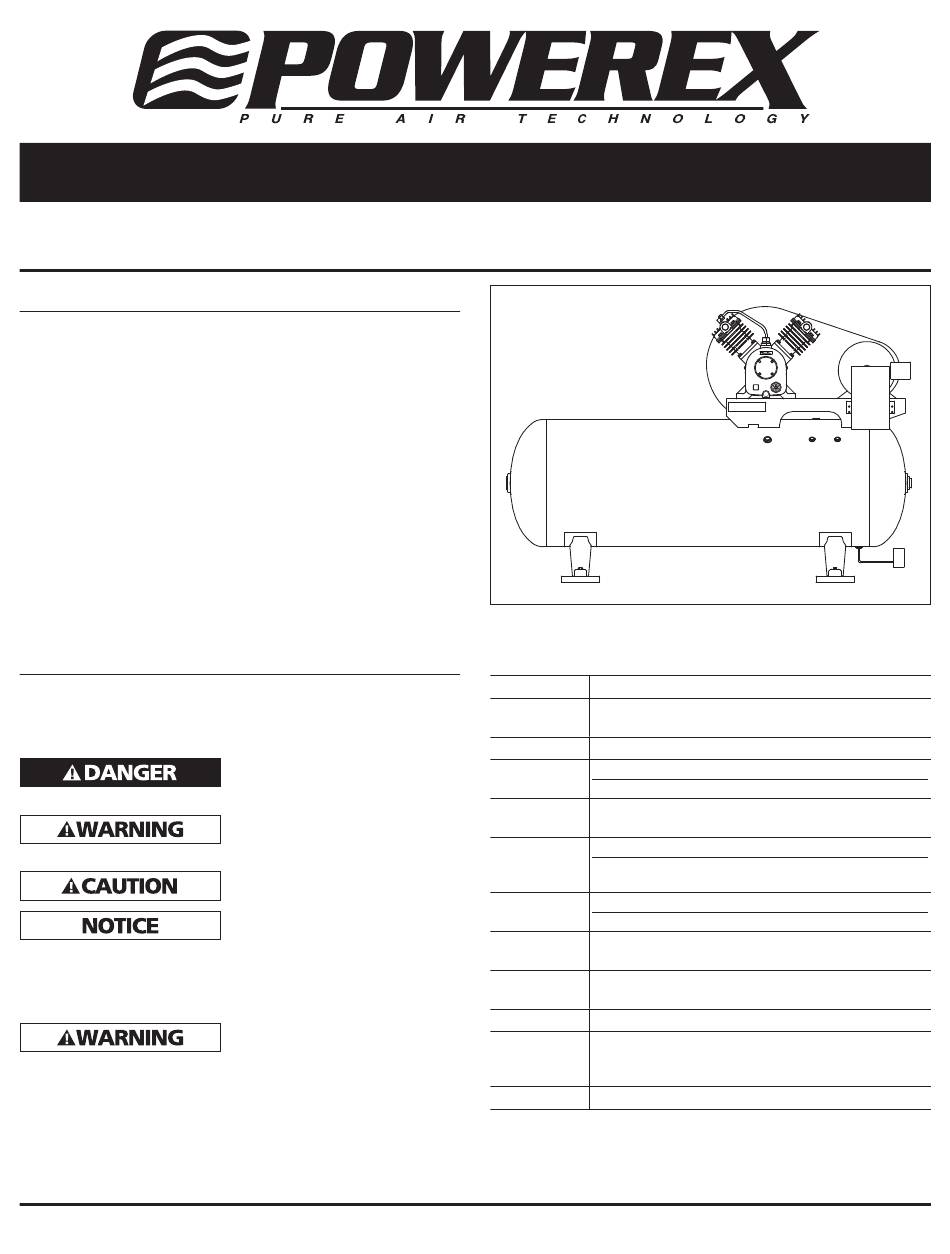

Powerex AS Series Manual

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product
described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage! Retain instructions for future reference.

Description

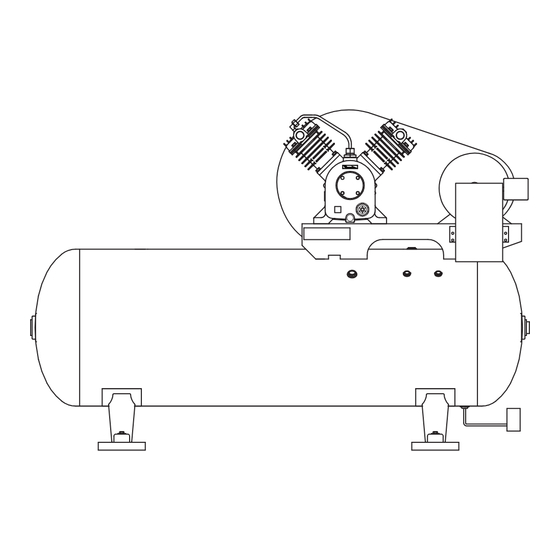

The AS Series Powerex Simplex Air Compressors have been
designed, broken-in and tested to meet the most demanding
specifi cations in the pneumatic climate control industry for
low oil carryover and long life.
All Powerex air compressors have reliable operation and
feature high quality construction and components. An
unloading feature is included on all compressors to provide
loadless starting. Oil entrainment is minimized by the use of
lap joint piston rings, low compressor speeds and a special
lubricating oil with a high fl ash point and low carbon
content.
Powerex compressor motors are NEMA Class B design. Single-
phase motors have built-in overload protection and a DPST
disconnect switch. Three-phase motors require a manual or
magnetic starter and three overload heater coils which may
be ordered as a factory mounted and wired option.

Safety Guidelines

This manual contains information that is very important
to know and understand. This information is provided for
SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help
recognize this information, observe the following symbols.
not avoided, WILL result in death or serious injury.
not avoided, COULD result in death or serious injury.
followed, may cause damage to equipment.
NOTE: Information that requires special attention.
CALIFORNIA PROPOSITION 65
to the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
The performance specifi cations are nominal and conform to acceptable industry standards. For application at conditions beyond these
specifi cations, consult the local Powerex offi ce. Powerex shall not be liable for damages resulting from misapplication or misuse of its products.
Powerex • 150 Production Drive • Harrison, OH 45030 • USA
1-888-769-7979 • www.powerexinc.com
Danger indicates an imminently
hazardous situation which, if
Warning indicates a potentially
hazardous situation which, if
Caution indicates a potentially
minor or moderate injury.
Notice indicates important
information, that if not
This product or its power cord
may contain chemicals known
Specifi cations
Product AS Series Powerex Simplex Air Compressors
Performance
See Page 2
Specifi cations
Lubrication Splash Lubrication System
Operating 1Ø 115 - 280 / 230 Volts, 60 Hz
Voltages 3Ø 280 - 230 / 460 Volts, 60 Hz
Compression
Single-Stage
Cycle
Motor 1Ø Built-in Thermal Overload (Standard)
Overload 3Ø Magnetic Starter and Three Thermal
Protection Overload Switches (Optional)
Pressure Cut-In: Factory Set at Approximately 70 psig (490 kPa)
Settings Cut-Out: Factory Set at Approximately 90 psig (630 kPa)
Overpressure ASME Safety Valve Factory Set and Sealed at
Protection Approximately 115 psig (805 kPa)
Outlet Air
3/4 inch NPT (30, 60, and 80 Gallon Tanks)
Connections
Tank Sizes 30 Gallon to 80 Gallon
California
Ordinance Meets Requirements of this Ordinance
462 (L) (2)
Tank Isolation Standard All Units
Climate Control Simplex
IN259604AV 1/14
