1hp simplex air compressor

Advertisement

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or prop-
erty damage! Retain instructions for future reference.
Features
• Guaranteed low oil carryover rate of
less than 2 PPM
• Three year warranty on compressor
pump
• Isolation pads
• Optional R134 dryer
• ASME tank
• UL listed controls
The AS-XXX Series Powerex Simplex Air
Compressors have been designed, bro-
ken-in and tested to meet the most
demanding specifications in the pneu-
matic climate control industry for low
oil carryover and long life.
All Powerex air compressors have reli-
able operation and feature high quality
construction and components. An
unloading feature is included on all
compressors to provide loadless start-
ing. Oil entrainment is minimized by
the use of lap joint piston rings, low
compressor speeds and a special lubri-
cating oil with a high flash point and
low carbon content.
All 1/2 through 10 hp models are also
equipped with an auxiliary cooling fan
and air control shroud to achieve low
head temperatures and further mini-
mize oil carryover.
Powerex compressor motors are NEMA
Class B design. Single-phase motors
have built-in overload protection and a
DPST disconnect switch. Three-phase
motors require a manual or magnetic
starter and three overload heater coils
which may be ordered as a factory
mounted and wired option.
Powerex • 150 Production Drive • Harrison, OH 45030 • USA

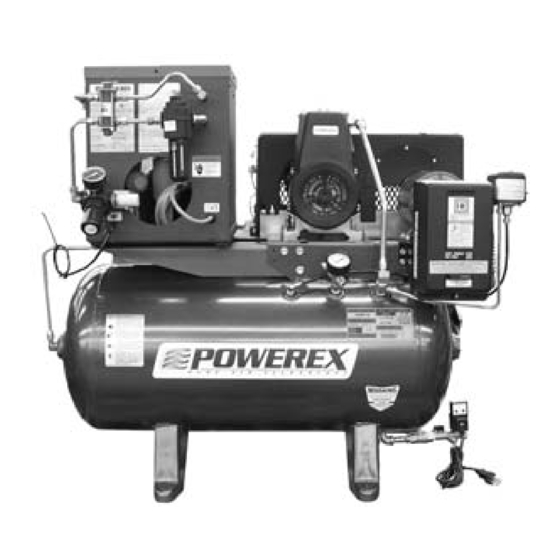

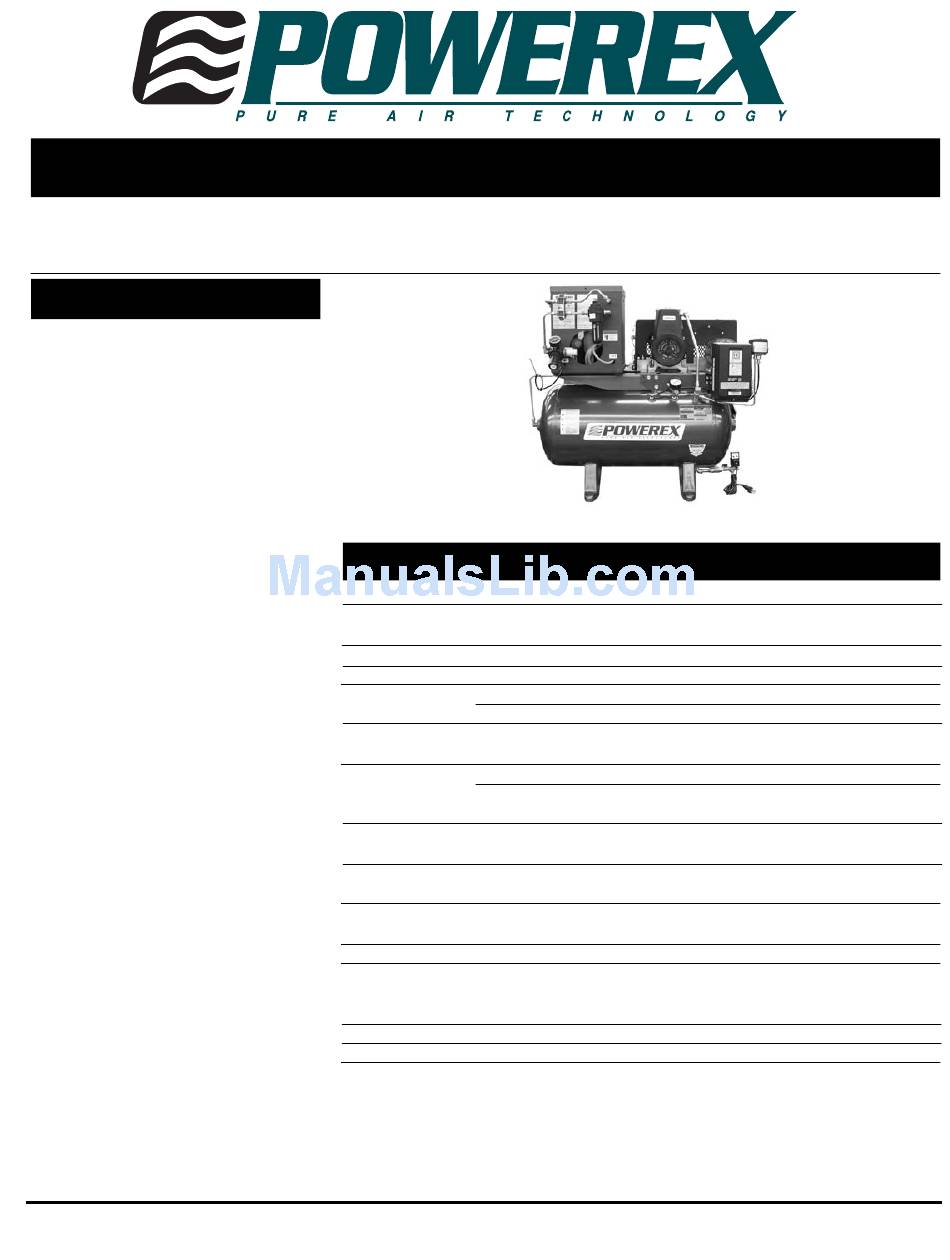

Figure 1 - AS-XXX 1 Hp Simplex Air Compressor
Product
Performance
Specifications
Models & Options
Lubrication
1/2 Through 10
Operating
Voltages
Compression
1/2 Through
Cycle
10 Hp Models
Motor Overload
Protection
Pressure Settings
Overpressure
Protection
Outlet Air
Connections
Tank Sizes
California
Ordinance 462
(L) (2)
Tank Isolation
Manuals
The performance specifications are nominal and conform to acceptable industry standards. For applica-
tion at conditions beyond these specifications, consult the local Powerex office. Powerex shall not be
liable for damages resulting from misapplication or misuse of its products.
Climate Control Simplex
Specifications
AS-XXX Series Powerex Simplex Air Compressors
See Table 1
See Table 2
Splash Lubrication System
115 - 208/230 Volts, 60 Hz
208-230/460 Volts, 60 Hz
Single-Stage
Built-In Thermal Overload (Standard)
Magnetic Starter and Three Thermal Overload
Switches (Optional)
Cut-In: Factory Set at Approximately 70 psig (490kPa)
Cut-out: Factory Set at Approximately 90 psig (630 kPa)
ASME Safety Valve Factory Set and Sealed at
Approximately 115 psig (805 kPa)
1/2" NPT on 30, 60 and 80 Gallon Tanks;
1" NPT on 120 and 200 Gallon Tanks
See Table 2
Meets Requirements of this Ordinance
Standard All Units
200 Page Service Manual Available
IN259601AV 10/04
