Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product
described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage! Retain instructions for future reference.

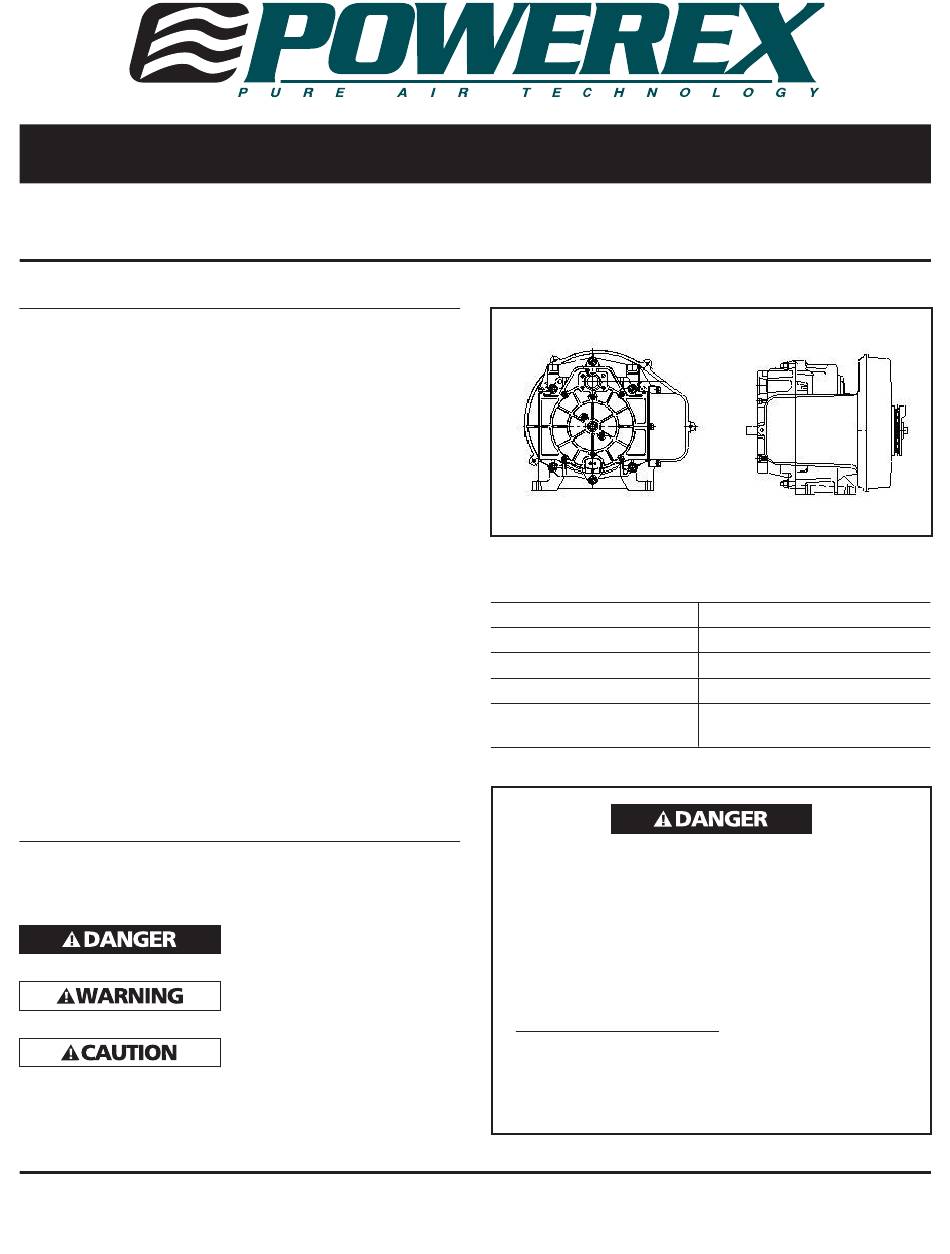

Description
The Powerex Oilless Rotary Scroll Air Compressor has ad-
vanced scroll compressor technology through the develop-
ment of a completely oilless unit.
The Powerex Scroll Compressor offers a dynamically balanced
air end which insures vibration-free operation. The rotary
design permits a continuous 100% duty cycle. No oil separa-
tion, oil fi ltration, or inlet valves are required on the Powerex
Scroll air compressor.

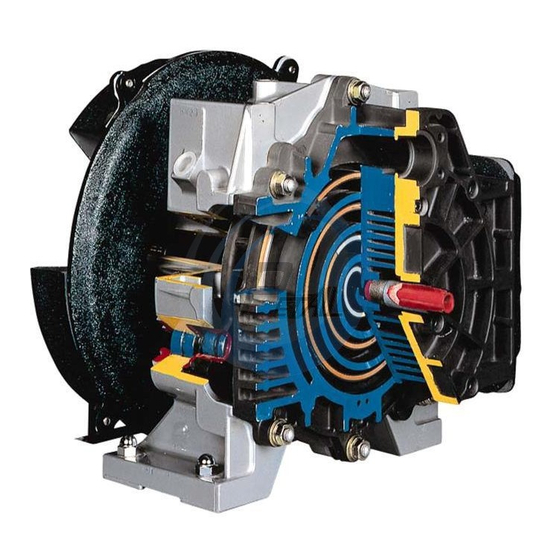

The Powerex oilless rotary scroll air compressor is based on
the theory of scroll compression. A scroll is a free standing,
intricate spiral bounded on one side by a solid, fl at plane or
base. A scroll set, the basic compression element of a scroll
compressor, is made up of two identical spirals which form
right and left hand parts. One of these scroll components
is indexed or phased 180° with respect to the other so the
scrolls can mesh.
Crescent-shaped gas pockets are formed and bounded by the
spirals and the base plate of both scrolls. As the moving scroll
is orbited around the fi xed scroll, the pockets formed by the
meshed scrolls follow the spiral toward the center and diminish
in size. The moving scroll is prevented from rotating during this
process so the 180° phase relationship of the scrolls is main-
tained. The compressor's inlet is at the outer boundary of the
scrolls. The compressed gas is discharged through the outlet at
the center of the fi xed scroll so no valves are needed.
Safety Guidelines
This manual contains information that is very important
to know and understand. This information is provided for
SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help rec-
ognize this information, observe the following symbols.
not avoided, WILL result in death or serious injury.
not avoided, COULD result in death or serious injury.
NOTE: This provides information that requires special attention.
Powerex • 150 Production Drive • Harrison, OH 45030 • USA
Danger indicates an imminently
hazardous situation which, if
Warning indicates a potentially
hazardous situation which, if
Caution indicates a potentially
minor or moderate injury.
Scroll Air Compressor Service and Maintenance
Specifi cations
Product
Disharge Pressure
Compression Cycle
Motor Overload Protection
Maximum Operating
Ambient Temperature
This compressor/pump is not equipped and should not be
used "as is" to supply breathing quality air. For any applica-
tion of air for human consumption, the air compressor/pump
will need to be fi tted with suitable in-line safety and alarm
equipment. This additional equipment is necessary to prop-
erly fi lter and purify the air to meet minimal specifi cations for
Grade D breathing as described in Compressed Gas Associa-
tion Commodity Specifi cation for air, OSHA, ANSI and/or
Canadian Standards Associations (CSA).
DISCLAIMER OF WARRANTIES
In the event the compressor is used for the purpose of breath-
ing air application and proper in-line safety and alarm equip-
ment is not simultaneously used, existing warranties shall be
voided, and Powerex disclaims any liability whatsoever for
any loss, personal injury or damage.
SLAE03E, SLAE05E, SLAE05HP
95-115 (125-145 optional)
Scroll
IEC Magnetic Starter
104° F
Breathable Air Warning
IN557302AV 10/07
