Russell Hobbs RHTEC1 Manual

Russell Hobbs RHTEC1 Manual

Stainless steel freestanding 60cm x 60cm twin cavity electric oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

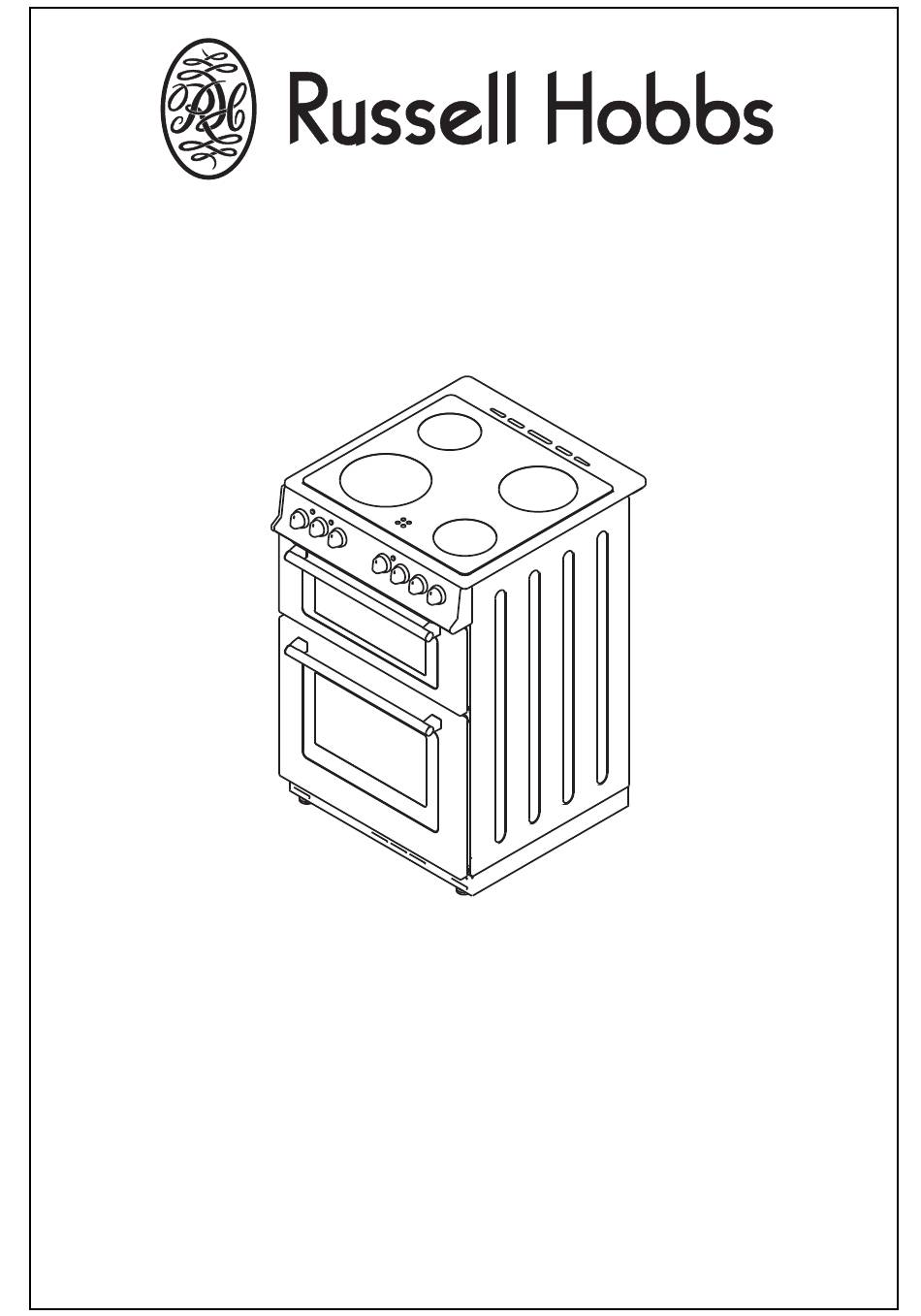

STAINLESS STEEL FREESTANDING
60CM X 60CM TWIN CAVITY
ELECTRIC OVEN
Model number: RHTEC1
Please read these instructions carefully and
keep them for future reference
For Customer Services, Spare Parts & Warranty Information
please call 0845 683 8717
Opening times: Monday - Friday 8am until 8pm
Saturday & Sunday 10am until 4pm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHTEC1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Russell Hobbs RHTEC1

Summary of Contents for Russell Hobbs RHTEC1

  • Page 1 STAINLESS STEEL FREESTANDING 60CM X 60CM TWIN CAVITY ELECTRIC OVEN Model number: RHTEC1 Please read these instructions carefully and keep them for future reference For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717 Opening times: Monday - Friday 8am until 8pm...
  • Page 2 Please keep this booklet in a safe place. It may be useful in future, either to yourself or to others in the event that doubts should arise relating to its operation. This appliance must be used only for its intended purpose, that is for the domestic cooking of foodstuffs.

  • Page 3: Table Of Contents

    CONTENTS: 1. PRODUCT SPECIFICATION 2. INTRODUCTION OF PRODUCT 3. WARNINGS 4. INSTALLATION AND PREPARATIONS FOR USE ENVIRONMENT WHERE THE APPLIANCE TO BE INSTALLED 4.2 INSTALLATION OF PRODUCT 4.3 ADJUSTMENT OF FEET 4.4 GENERAL WARNING AND MEASURES 5. USE OF PRODUCT 5.1 TECHNICAL SPECIFICATIONS FOR TOP AND MAIN OVEN 5.2 USE OF HOTPLATES 5.3 USE OF OVEN...

  • Page 4: Product Specification

    1: PRODUCT SPECIFICATION Electric FREESTANDING 60CMX60CM Cooker TWIN CAVITY ELECTRIC OVEN RHTEC1 SPECIFICATION SHEET Nominal Dimensions Height (Adjustable Feet max. +3.5cm) Width Depth Hob Features Ø145 mm Highlite Element 1.200 Ø180 mm Highlite Element 1.800 Hot Surface Indicator Light Oven Features...

  • Page 5: Introduction Of Product

    2: INTRODUCTION OF PRODUCT List of Components 1. Cooktop 2. Control panel 2. Rack 3. Top oven door 1. Rack 4. Oven door handle 5. Main oven door 6. Grill 7. Oven lamp 5. Rack 4. Rack 3. Rack 2. Rack 1.

  • Page 6: Warnings

    3: WARNINGS TAKE ALL IMPORTANT SAFETY MEASURES AND READ THE MANUAL COMPLETELY BEFORE USING THE PRODUCT This product has been designed for non-professional, domestic use only. Check whether there is any damage after you unpack the product. If there is any damage;...
  • Page 7 Keep children away from the cooker. If a crack is observed on ceramic glass, hob heating elements have to be switched off immediately to prevent electrical shocks. During use the appliance gets hot. Take special care to prevent touching of heating elements inside oven cavity.

  • Page 8: Installation And Preparations For Use

    4: INSTALLATION AND PREPARATION FOR USE The following instructions should be read by a qualified technician to ensure that the appliance is installed, regulated and technically serviced correctly in compliance with current regulations. Important: disconnect the cooker from the electricity when making any adjustement, maintenance operation, etc.

  • Page 9: Installation Of Product

    4.2 INSTALLATIN OF PRODUCT • The earthing cable must be connected to the terminal. You have to ensure the cable with insulation be connected to the power source during the connection of cable. If there is not an appropriate earthed electric outlet in accordance with regulations in the place where the appliance will be installed, immediately contact qualified professional.

  • Page 10: General Warning And Measures

    Connection diagram is given below. *This appliance must be earthed. *For this connection a power lead of wire type H05VV-F should be used. 4.4. GENERAL WARNING AND MEASURES • Your appliance is produced in accordance with the related security instructions connected with electrical appliance.

  • Page 11: Use Of Product

    5: USE OF PRODUCT 5.1. TECHNICAL SPECIFICATIONS FOR TOP AND MAIN OVENS TOP OVEN OF 60x60 COOKER RATING Grill Heating Element 1600W MAIN OVEN OF 60x60 COOKER RATING Top Heating Element 1200W Bottom Heating Element 1100W CERAMIC HOB RATING 145mm Hi-light 1200W 180mm Hi-light 1800W...

  • Page 12: Use Of Hotplates

    5.2. USE OF HOTPLATES The hob part of the appliance is controlled via knob with 7 positions on the control panel. Position ''0'' means off position. The remaining 6 positions indicate the following types of use: : Heat maintenance position : Heating in low temperature position 4-5-6 : Cooking, frying and boiling position The knob rotation direction may differ according to the product specification.

  • Page 13: Use Of Oven

    5.3. USE OF OVEN 5.3.1. USING THE DIGITAL MÝNUTE TIMER Simultaneously press (+) and (-) buttons of digital timer. The display will start flashing, and then you can set the time setting by using (+) and (-) buttons. When you press (+) or (-) buttons after setting the time ( ) symbol is displayed, and the desiring timer set.

  • Page 14: Using The Main Oven

    5.3.4. USING THE MAIN OVEN The switch for the main oven allows you to select the oven functions. The symbols and their functions are briefly explained in the following lines. The detailed information for their usage will also be explained in the following pages. Defrost function Top and bottom heating function Top and bottom heating function with fan...
  • Page 15 If the main oven has an oven light function, it will be always on, when any of function is selected. Defrost function Defrost function can be started by placing the frozen food into your oven and turning the main oven function switch to the related sign. This function does not cook the food, it just helps to defrost them in a very short time.
  • Page 16 ENERGY SAVING During use of electrical cookers , it is required to use saucepans with a flat bases. Choose a cookware of proper size. Using a lid will reduce cooking times. Minimize the amount of liquid or fat to reduce cooking times. When liquid starts boiling ,reduce the temperature setting.

  • Page 17: General

    6: CLEANING AND MAINTENANCE OF YOUR OVEN 6.1. GENERAL Before starting to clean your oven, be sure that all control knobs are off and your appliance is cooled off. Before using the cleaning materials check whether they are appropriate and recommended by the manufacturer of your oven.

  • Page 18: Removing And Re-Assembling Of The Top Oven

    6.4. REMOVING AND RE-ASSEMBLING OF THE TOP OVEN DOOR Step 1. Open the door and then open the saddle bracket up to the end position. Detail A Detail B * Close the door untill it almost reaches to the full closed position and remove it by pulling towards yourself.
  • Page 19 6.5. MAINTENANCE Change of Oven Lamp The change of oven lamp must be done by authorized service. Before changing the lamp , the oven should be unplugged and it should be cold. The rating the lamp should be 230V,25Watt, Type E14. For Customer Services, Spare parts &...

  • Page 20: Service And Transport

    7: SERVICE AND TRANSPORT 6.1. CHECK BEFORE CONTACTING TO SERVICE If the oven does not operate : The oven may be unplugged. On models fitted with a timer, time may not be regulated. If the oven does not heat : The heat may be not adjusted with oven’s heater control switch.
  • Page 21 For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717 Opening times: Monday - Friday 8am until 8pm Saturday & Sunday 10am until 4pm Customer Service Department Picktree Court Picktree Lane Chester-le-Street Co Durham DH3 3SY Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'.
