- Page 1 Multifunctional Electric Fan Oven Instruction Manual Model number: RHMEO7202DS For Customer Services & Spare Parts please call 0345 208 8750 or visit us at https://mda.russellhobbs.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Page(s) Safety instructions Product Overview Positioning Installation 10-11 How To Use Your Oven 12-29 Cleaning & Maintenance 30-35 Trouble shooting Guarantee Product Information Notes Disposal information... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important Note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand... - Page 4 SAFETY INSTRUCTIONS • This appliance can only be installed in a well-ventilated place in accordance with existing regulations and ventilation specifications. • This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. •...
- Page 5 SAFETY INSTRUCTIONS • The universal tray or any other kind of baking tray should not be placed on the bottom of the oven cavity. • Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content.
- Page 6 SAFETY INSTRUCTIONS • This microwave oven is intended for heating food and beverages only. The drying of food or clothing, and heating of warming pads, wheat bags, slippers, sponges, damp cloths and similar is extremely dangerous & may lead to risk of injury, ignition or fire.
- Page 7 SAFETY INSTRUCTIONS • Please remember that as food or liquids heat up, they will release steam or may be spitting. Never cover any container fully, always leave a gap for steam to escape. • Do not use plastic containers when heating or cooking foods that contain a lot of fat or sugar.
-
Page 8: Product Overview
PRODUCT OVERVIEW 1. Oven function dial 6. Adjustment dial 2. Function touch control 7. 2 x Wire shelf 3. Handle 8. 1 x Universal tray 4. Glass window 9. Fixing screws 5. Display 10. 2 x Side racks & 6 x ceramic clips (2 spares) Unit &... -
Page 9: Positioning
POSITIONING • This appliance is to be installed under a countertop or in cabinets. • Avoid damaging the product during installation. • The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works correctly when installed. -
Page 10: Installation
INSTALLATION Preparation & Installation Ensure that there are no electric wires, gas or water pipes in the area where holes are to be made. Components of the appliance may have sharp edges. Wear protective gloves. 1. Ensure that there will be an electrical power point within adequate distance of the oven after it has been installed. - Page 11 INSTALLATION Electrical Connection • WARNING - THIS APPLIANCE MUST BE EARTHED • This appliance is designed to be connected to a 230V~50Hz AC electricity supply. • Before proceeding with the electrical connection, verify that the current carrying capacity of the system and the isolator / main switch is adequate for the maximum power rating of the oven.
-
Page 12: How To Use Your Oven
HOW TO USE YOUR OVEN Control Panel The appliance has an oven function dial, adjustment dial, a display, and function buttons. See explanations below: Oven function dial Turn to change the oven function On / Off Powers the oven on and off Timer / Child lock Timer function / Child lock (touch &... - Page 13 HOW TO USE YOUR OVEN Display This will show the time, function icons, weight, and other information. Oven Function Dial The oven function dial allows you to set the oven function mode for the oven. The dial can be turned clockwise or anti-clockwise to set the required oven function.
- Page 14 HOW TO USE YOUR OVEN The Oven Cavity • The oven light is located in the cooking compartment. During oven operation, the oven light is on (unless turned off manually using the light on/off button), The light turns on automatically when an oven function has been selected and the symbol is touched.
- Page 15 HOW TO USE YOUR OVEN Setting the Clock When the oven is first connected to the electrical supply and powered on, the clock will need to be set. The display will automatically show the time as “00:00“ and there will be a single beep. Note: Ensure the correct time is set before using the oven.
- Page 16 HOW TO USE YOUR OVEN Types of Heating Modes This oven has a number of modes. Below is an overview to enable you to find the suitable heat settings required for certain dishes/cooking. Temperature Symbol Function Range Top & Bottom Heating: Heat is emitted evenly from the top and bottom elements, which work together to provide convectional cooking.
- Page 17 HOW TO USE YOUR OVEN Temperature Symbol Function Range Double Grill: The whole area below the grill heating element becomes hot. The inner and outer grill elements are on. 150°C - 250°C This function can be used to grill a large number of burgers, sausages, fish or bread.
- Page 18 HOW TO USE YOUR OVEN Note: • If the oven door is opened in the middle of a cooking program, the program will not be paused. Please be careful with the high temperature. • Do not cover the ventilation slots to avoid the oven to overheating. •...
- Page 19 HOW TO USE YOUR OVEN Quick Pre-Heat 1. This oven comes with a quick preheat function to enable the preheat time to be shortened. This function can only be used when an oven function and temperature have been selected first. 2.
- Page 20 HOW TO USE YOUR OVEN Cooking Duration Time This function is used when you want to cook for a desired time range. The maximum cooking period is 9 hours. The food that is to be cooked needs to be put into the oven. 1.
- Page 21 HOW TO USE YOUR OVEN Cooking End Time This function is used to cook according to a desired finishing time. The food that is to be cooked needs to be put into the oven. 1. Set the cooking duration time by following the instructions laid out on the previous page.
- Page 22 HOW TO USE YOUR OVEN Microwave and Microwave Combination Functions Note: • The wire shelves can be used for microwave only cooking, microwave combination cooking, baking and grill cooking. • The universal tray cannot be used for microwave only cooking, it can only be used for grilling, baking and in microwave combination cooking.
- Page 23 HOW TO USE YOUR OVEN 2. Touch the symbol again and turn the ‘</>’ adjustment dial to select the required microwave power level: 800W / 560W / 400W / 240W / 80W (defrost). The selected power will be shown on the display & flash for 6 seconds before being set.
- Page 24 HOW TO USE YOUR OVEN This appliance has 3 auto defrost programmes and 10 auto cook menus. To use the auto cook function, simply touch the symbol and turn the function dial to choose the auto cook menu you want. Please see table on the following page.
- Page 25 HOW TO USE YOUR OVEN Energy Saving The following advice is to help you save energy: • Only preheat the oven if this is specified in the recipe. • Open the oven door as infrequently as possible. • Use black enamelled baking trays, tins etc., as they absorb the heat well. •...
- Page 26 HOW TO USE YOUR OVEN Accessories WARNING: • Correct placement of the shelves between the side supports is imperative. This will ensure that food does not fall off or slide out when in the oven or being carefully removed from the oven. •...
- Page 27 HOW TO USE YOUR OVEN Universal Tray – Use for cooking large quantities of food such as cakes, pastries, frozen food, etc. Can also be used under the wire rack to catch fat when grilling. Slide the baking tray into the oven with the sloping edge facing towards the oven door.
- Page 28 HOW TO USE YOUR OVEN Locking Function The wire shelves and baking tray can be pull out halfway until they are locked in place. The locking function prevents the grill rack and baking try from tilting when they are pulled out. The grill rack and baking tray must be inserted into the cavity correctly to avoid tilting and work properly.

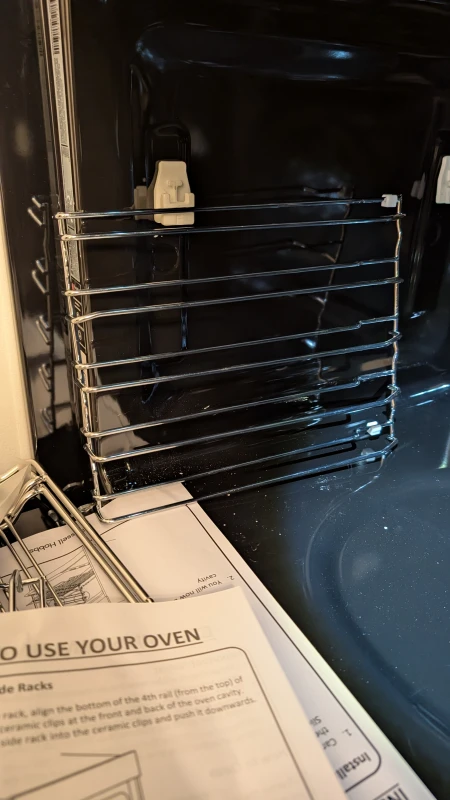

- Page 29 HOW TO USE YOUR OVEN Installation of the Side Racks 1. Carefully hold the side rack, align the bottom of the 4th rail (from the top) of the side rack with the ceramic clips at the front and back of the oven cavity. Slide both ends of the side rack into the ceramic clips and push it downwards.
-
Page 30: Cleaning & Maintenance
CLEANING & MAINTENANCE Important Notes: • The appliance will become hot during operation, so allow the appliance to cool down before cleaning. • Do not use any high-pressure cleaners or steam cleaners. • Wash new sponge cloths thoroughly before use. •... - Page 31 CLEANING & MAINTENANCE How to Clean: • After each use, clean all surfaces once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. •...
- Page 32 CLEANING & MAINTENANCE • Very dirty door seal: If the door seal is very dirty, the appliance door will no longer close properly when the appliance is in use. The fronts of adjacent units could be damaged. Always keep the door seal clean. •...
- Page 33 CLEANING & MAINTENANCE Removing the Door Please remove the door by following the below steps: 1. Open the door fully, you will see the door hinges on either side of the door. The hinges have locking levers which will be in the closed position. 2.
- Page 34 CLEANING & MAINTENANCE Door Assembly To reattach the door, please follow the below steps: 1. When installing the door, you must make sure that both hinges at the bottom of the oven door are aligned and fully inserted with the 2 small holes at the bottom of the front panel on the oven.
- Page 35 CLEANING & MAINTENANCE Removing the Side Racks The side racks in the oven cavity can be removed for deep cleaning. Follow the below steps (ensure the oven & side racks are cold and not hot): 1. Carefully hold the side rack, lift it up and pull it forwards so it can be pulled out and away from the ceramic clips.
-
Page 36: Trouble Shooting
TROUBLE SHOOTING Problem Possible Cause Solution The circuit break is Check circuit breaker is in working defective or turned order and that it is not switched No power Check whether other kitchen appliances are working or check in Power cut or faulty the fuse box to make sure that fuse the fuse for the appliance is... -
Page 37: Guarantee
GUARANTEE This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Customer Services with the original proof of purchase so a replacement or refund can be arranged. Refund or replacement is at the discretion of Customer Services. -
Page 38: Product Information
PRODUCT INFORMATION Model Number RHMEO7202DS Rated Voltage 230V ~ 50Hz External Dimensions(HxWxD) 596mm x 595mm x 546mm Microwave Power Output (W) 800W Imported by G2S LIMITED WIGAN WN2 4AY... -
Page 39: Notes
NOTES... -
Page 40: Disposal Information
For Customer Services & Spare Parts please call 0345 208 8750 or visit us at https://mda.russellhobbs.com Revision 1.7 This symbol is known as the 'Crossed-Out Wheelie Bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
