To install the unit:
1. Choose a location to allow easy access to the fasteners so that the entire unit can be
readily removed for service or replacement, yet allows viewing of the LED
indicators on the front of the case.
2. Fasten the brackets to the mounting surface with a 1/4 inches (M6) bolt, screw, or lag
screw (fasteners not provided) through the four holes in the mounting bracket.
3. If mounting surface is uneven, use three fasteners instead of four to prevent warping
of the mounting bracket.

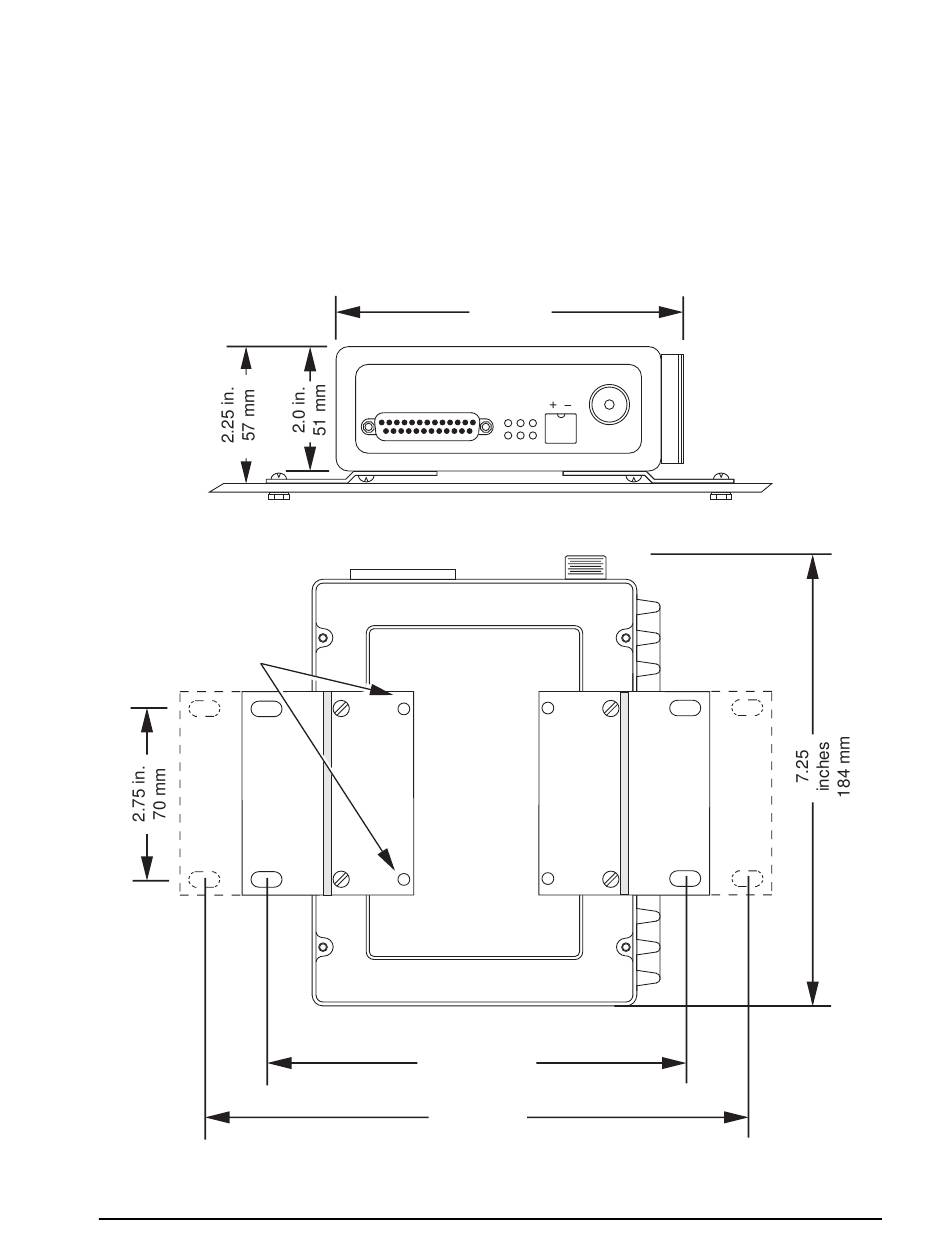

Figure 2-1. Mounting Dimensions—Front View
MOUNT BRACKETS WITH
THESE TWO HOLES FOR
ALTERNATE MOUNTING
USE ONLY
#6-32 x 5/16 INCH
SCREWS
Figure 2-2. Mounting Dimensions—Bottom View
MDS 05-2415A01, Rev. A
5.6 inches
143 mm
D C IN
IN T E R F A C E
K L T X R X
D C IN O L
6.75 inches
171 mm
8.5 inches
216 mm
INSTALLATION
A N T E N N A
2-3
