CHAPTER 1—GENERAL

INTRODUCTION

The MDS 4310 Transceiver offers continuous duty, high-performance data communications
in the 390–470 MHz frequency band. The transceiver is fully synthesized and can be pro-
grammed to operate on 12.5 kHz and 25 kHz channels within this range.
The MDS 4310 Transceiver can be supplied with a MDS 2314Axx main PC board or a MDS
2013Axx main PC board. Although the two PC boards are similar, this manual covers
transceivers with the 2314Axx main PC board. Refer to the MDS 05-2141A01 manual for
specific information regarding transceivers equipped with the 2013Axx main PC board.
The Transceiver's design is highlighted by a compact and rugged die-cast aluminum case
which houses the basic RF unit, and all diagnostic and modem options. The MDS 4350 and
MDS 4355 are alternate weatherproof models which include the MDS 4310 radio plus a
power supply, back-up battery and interface/utility board, all mounted in a NEMA 4X
enclosure. Appendix F of this manual covers the main features of the MDS 4350 and
Appendix G covers the MDS 4355 Package.
The contents of this manual center on the MDS 4310 Data Transceiver. All discussions
relating only to the MDS 4350 and MDS 4355 Packaged models are clearly marked.

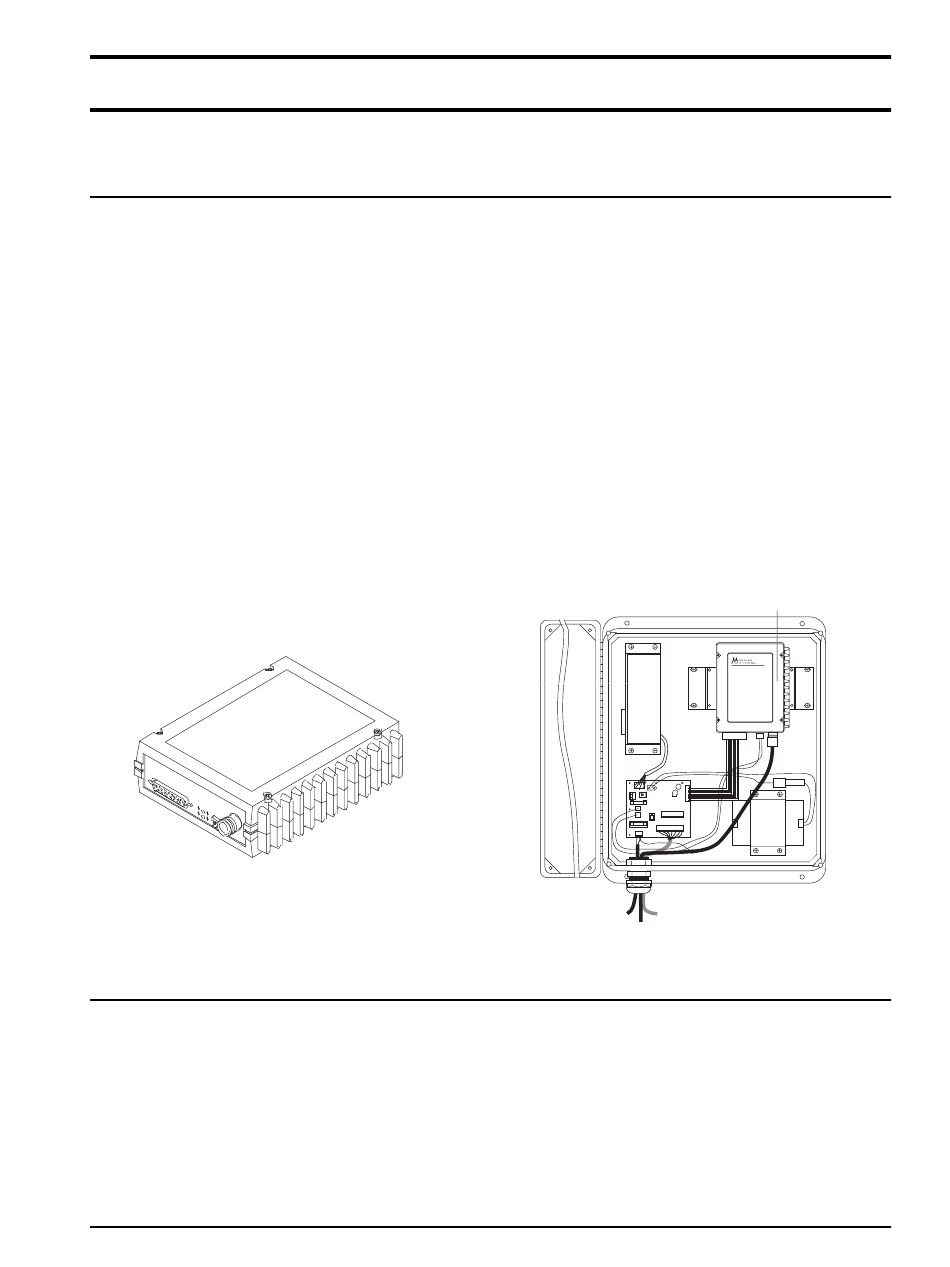

The MDS 4310 Data Transceiver

APPLICATIONS

The MDS 4310 Data Transceiver is a single channel, half-duplex, radio designed for use in
multiple address systems (MAS) such as those licensed under Part 90 of the Federal
Communications Commission rules, with an emission designation of F1D, F2D, or F3D,
depending on application and configuration.
