Connecting to the PC Using EMUBOOST

3.1

3.1.1

Overview

The CC31XXEMUBOOST is designed to connect the CC3100 module BoosterPack board to a PC using a

USB connection. This updates the firmware patches, which are stored in the serial flash, on the

BoosterPack; and in software development using SimpleLink Studio.

3.1.2

Hardware Details

SWRU396B – December 2014 – Revised May 2018

Submit Documentation Feedback

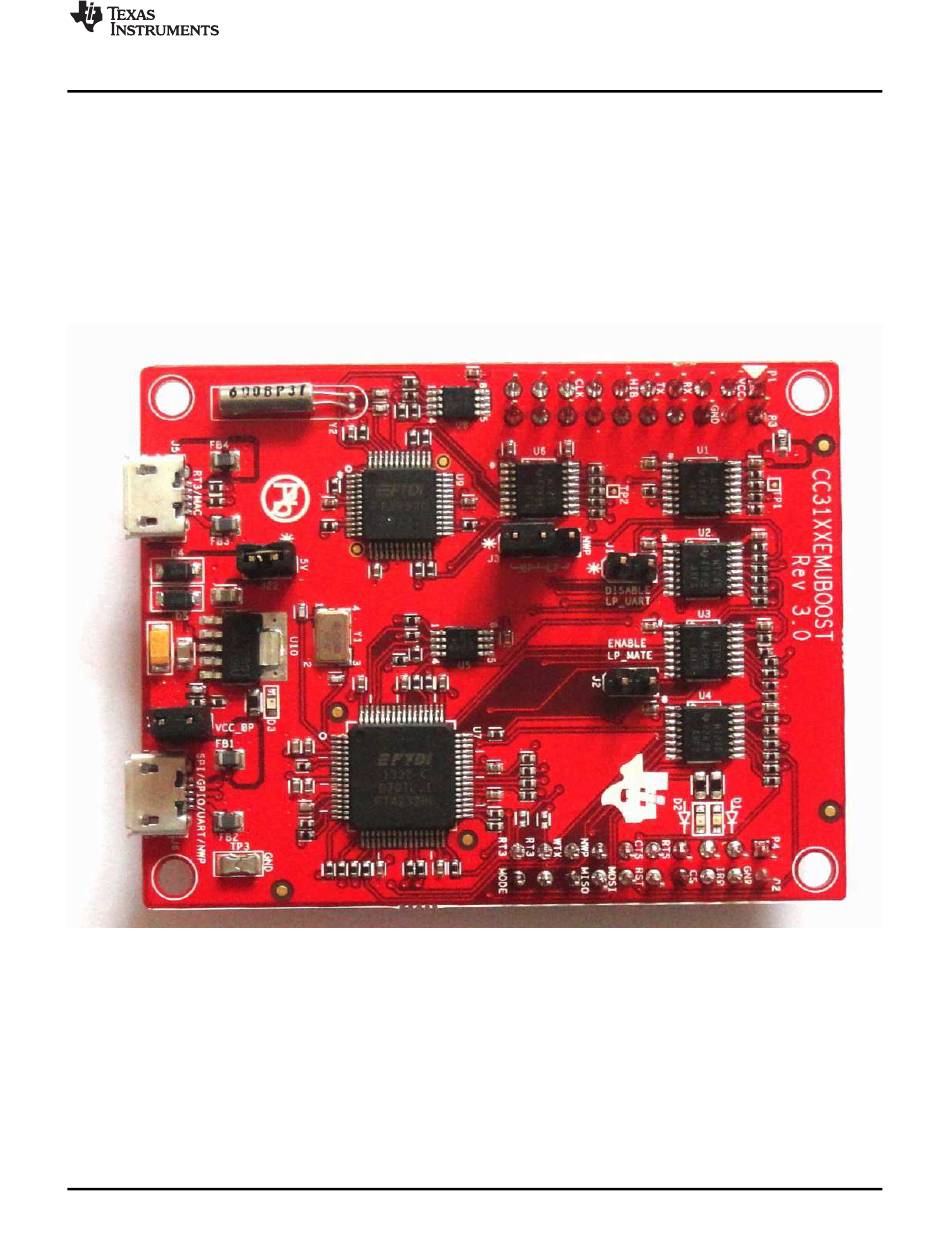

Figure 13. CC31XXEMUBOOST Board

CC3100MOD SimpleLink™ Wi-Fi® Network Processor Module BoosterPack

Connecting to the PC Using EMUBOOST

Hardware
