Connecting to the PC Using EMUBOOST
The board has two FTDI ICs to enumerate multiple COM and D2XX ports. The details of the ports are
given in Table 6.
Port
Port Type
Number
1 D2XX
2 D2XX
3 VCP
4 VCP
NOTE: On the PC, only two of the four ports are visible on the Device Manager. The D2XX ports are
not listed under the Ports tab.
The first COM port in the list is used for the Flash programming.
Port
Port Type
Number
1 VCP
2 VCP
3.1.3 Driver Requirements
The FTDI Debug board requires installing the associated drivers on a PC. This package is available as
part of the SDK release and is located at: [Install-Path]\cc3100-sdk\tools\cc31xx_board_drivers\.
The install path is usually C:\ti\cc3100SDK.
3.2

Connecting the Boards

Figure 15 shows the connection of the CC3100MOODBOOST to the EMUBOOST Board. The connectors
should be aligned carefully, as there is no polarity protection and the sFlash can be erased as a result.
The pins #1 of the connectors are marked on the board using a small triangle marking; these should be
aligned while connecting.
14
CC3100MOD SimpleLink™ Wi-Fi® Network Processor Module BoosterPack
Hardware
Table 6. Ports Available on J6
Usage
SPI port for SL Studio
GPIO for SL Studio
COM port for Flash
programming
Network processor logger output. Used with specific tools to analyze the
NWP

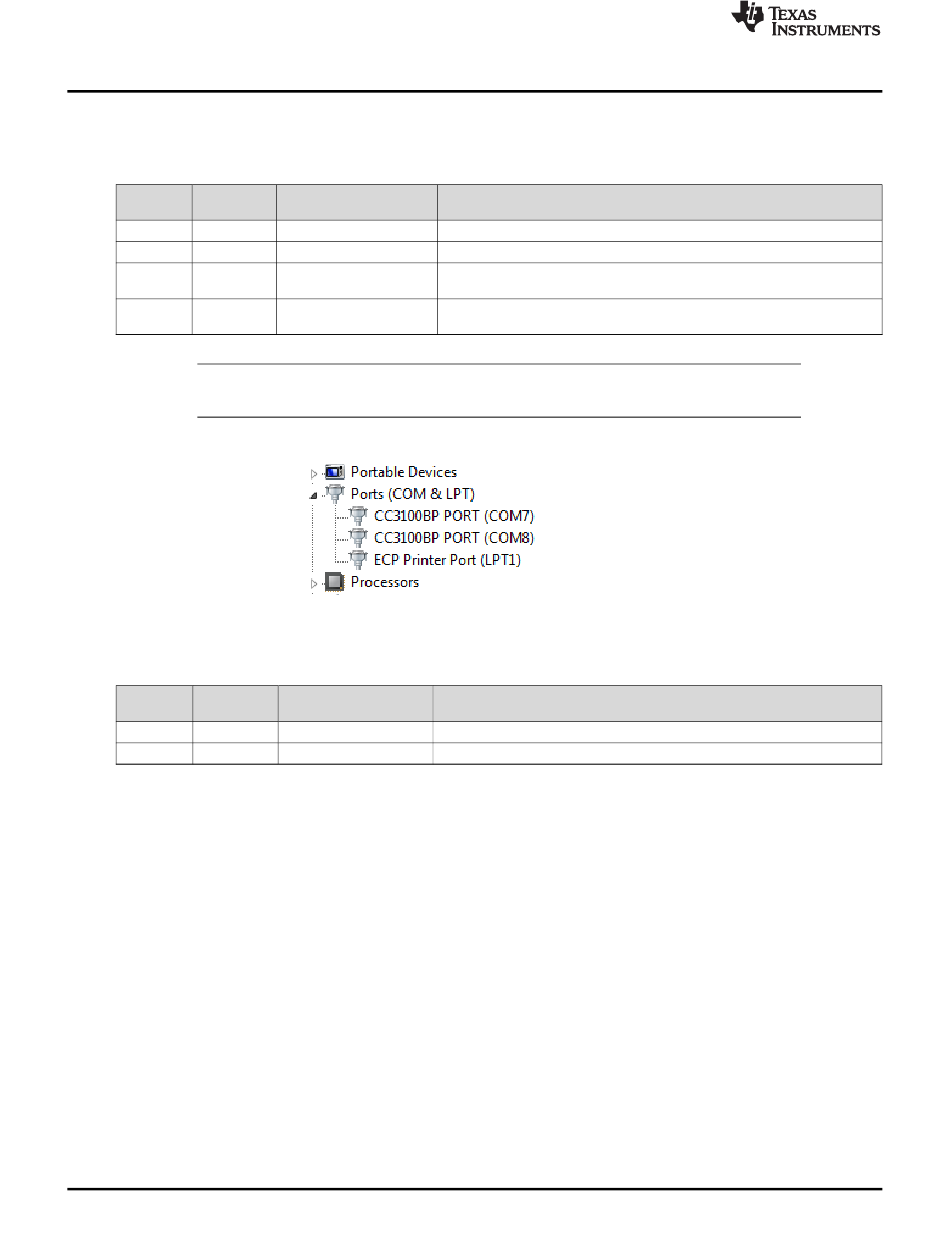

Figure 14. Portable Devices
Table 7. Ports Available on J5
Usage
RT3
MAC logger
Copyright © 2014–2018, Texas Instruments Incorporated
Comments
Control the nRESET, nHIB, IRQ
network processor logs. For TI use only.
Comments
Used for TI internal debug only.
Used for TI internal debug only.
