SMC Networks PF2D5 Series Operation Manual page 17

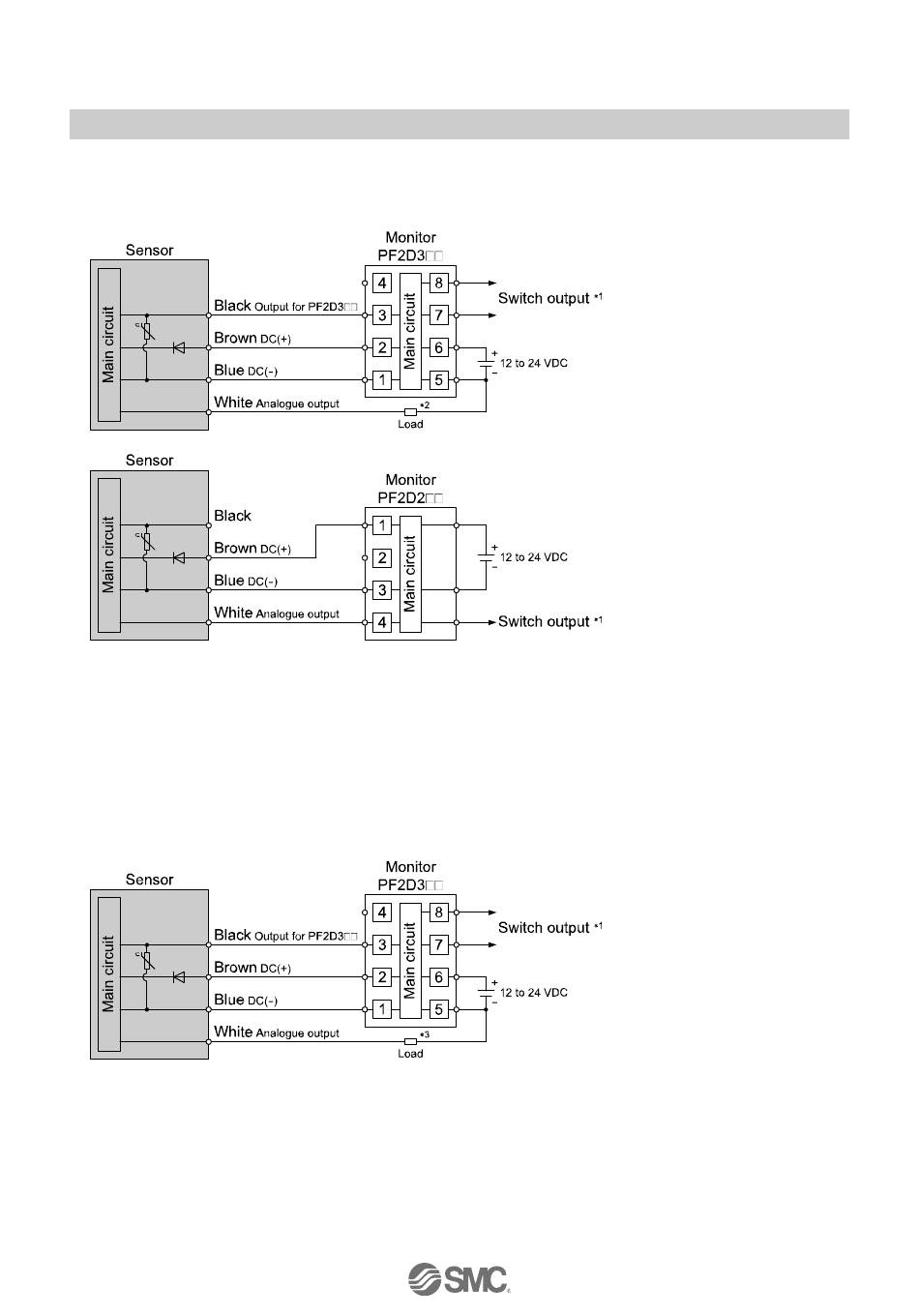

●Internal circuit and wiring example
Output for PF2D3
PF2D5 - -1
Analogue output: 1 to 5 V
Output impedance: 1 kΩ
(load impedance: 100 kΩ or more)
1: Refer to the PF2D3
or PF2D2
2: Load indicates analogue input equipment such as a voltmeter.
Output for PF2D3
PF2D5 - -2
Analogue output: 4 to 20 mA
Load impedance: 300 Ω (12 VDC)
600 Ω (24 VDC)
1: Refer to the PF2D3
operation manual for details of the flow monitor.
3: Load indicates analogue input equipment such as an ammeter.
+ Analogue (1 to 5 V) type
operation manual for details of the flow monitors.
+ Analogue (4 to 20 mA) type
-16-
No.PF※※-OMG0006-F
