Operation MANUAL

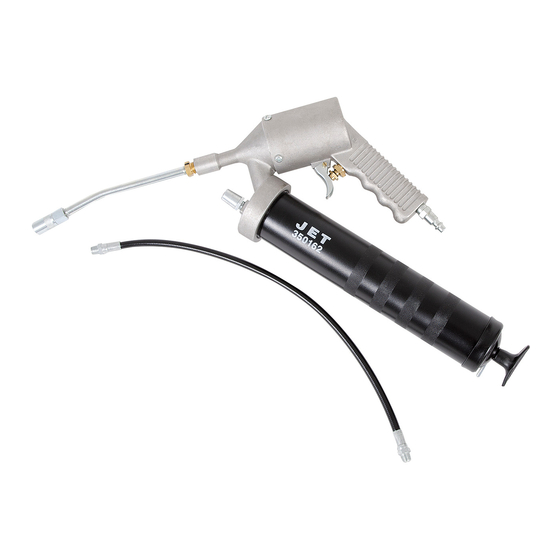

Continuous Flow Air Grease Gun – Heavy Duty
!
Please read and save these instructions. Read through this owner's manual carefully
before using product. Protect yourself and others by observing all safety information,
warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future
reference. Note that this is a general service instruction sheet. All specifications as
detailed in this sheet may not match your air grease gun exactly.
Description
Designed for general lubrication of equipment and machines that are equipped with grease fittings.
Grease can also be applied to bearing surfaces that require lubrication.
Plunger Rod Handle
Specifications
Handle
Air Inlet
Style
Pressure
Pistol
40-120 PSI (3-8 Bar)
Recommended:
90 PSI (6 Bar)
* For grease guns fitted with bulk loader valve on grease gun head
Die Cast Handle
Quick Coupler Air Fitting
End Cap
Discharge
per Minute
14 oz.
(400 gms)
Trigger
Lock Lever
Compressed Air
Pressure Ratio
Volume
40:1
1 CFM
Minimum
www.jetequipment.com
Pumping Chamber
Outlet Nozzle
Grease Loader Fitting
Grease Gun Head
Grease Gun Barrel
Grease Filling Options
Cartridge
Bulk
Yes
Yes
Prod. No. 350162
Mod. No. CFAGG-14HD
Filler Pump
Yes*
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jet CFAGG-14HD
Summary of Contents for Jet CFAGG-14HD
- Page 1 Operation MANUAL Prod. No. 350162 Continuous Flow Air Grease Gun – Heavy Duty Mod. No. CFAGG-14HD Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions.
- Page 2 General Safety Information Do not apply excessive torque or over-tighten the air fitting as this will apply undue stress to the die cast outlet and may Always wear safety glasses when using a grease gun. Keep work cause it to fracture. area clean and remove any excess grease from tools, hands, and clothing after use.
- Page 3 onto the grease gun outlet. The connection between the CAUTION extension and grease gun must be tight and it is advisable to Do not apply excessive torque or over-tighten the grease gun use a thread sealant to ensure a leak-proof joint. extension as this will apply undue stress to the die cast outlet CAUTION and may cause it to fracture.
- Page 4 Gun cycles very slowly. 1. Inadequate lubrication of the pumping chamber. 2. Put a few drops of lubricator oil through the quick connect coupler fitting. ®Registered trademark of JET Equipment & Tools Ltd. M12-HT350162 www.jetequipment.com...
