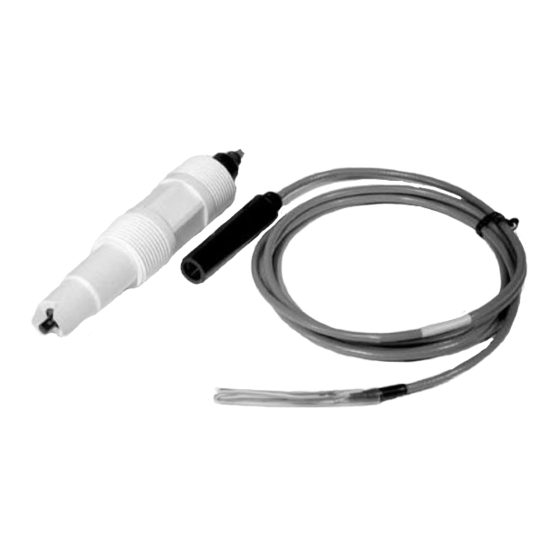

- Page 1 Instruction Manual PN 51-TF396/rev.D Model TF396 February 2006 COMBINATION pH SENSOR MODEL TF396 with mating cable...
- Page 2 Notes 6/02 This is the initial release of the product manual. The manual has been reformatted to reflect the Emerson documentation style and updated to reflect any changes in the product offering. 4/03 Revised figure 2-3 on page 5. 10/05 PN 9330022 has been deleted, changed to PN 9320057 on the drawing of 4TF39603, page 6.
-
Page 3: Table Of Contents
MODEL TF396 TABLE OF CONTENTS MODEL TF396 COMBINATION pH SENSOR TABLE OF CONTENTS Section Title Page DESCRIPTION AND SPECIFICATIONS..............Features and Applications..................Specifications ......................Ordering Information ....................INSTALLATION ....................... Unpacking and Inspection..................Mounting ........................WIRING MODEL TF396 ..................START UP AND CALIBRATION ................Sensor Preparation .................... - Page 4 MODEL TF396 TABLE OF CONTENTS LIST OF FIGURES Number Title Page Dimensional Drawing ....................Flow-Through Tee with Adapter................Flow-Through and Insertion Installations ..............Model TF396 with Insertion Mounting Adapter ............Submersion Installations ..................Low Flow Cell ......................Jet Spray Cleaner..................... Wiring to Model 1055 ....................
-
Page 5: Description And Specifications
MODEL TF396 SECTION 1.0 DESCRIPTIONS AND SPECIFICATIONS SECTION 1.0 DESCRIPTION AND SPECIFICATIONS 1.1 FEATURES AND APPLICATIONS The ion-selective field effect transistor (ISFET) pH of pH signal drift). This large reference junction area electrode provides a stable pH measurement. Its rate (400 times greater than typical teflon or ceramic junc- of response can be ten times faster than glass elec- tions) is made of micron-sized reference pathways... -
Page 6: Ordering Information
MODEL TF396 SECTION 1.0 DESCRIPTIONS AND SPECIFICATIONS 1.3 ORDERING INFORMATION The Model TF396 TUpHFET Non-glass ISFET pH Sensor is housed in a molded reinforced polypropylene body with 1 in. MNPT threads suitable for insertion, submersion or flow through installation. The sensor includes an ion-selective field effect transistor, a patented reference junction, a solution ground, and a recessed protective tip. -
Page 7: Installation
MODEL TF396 SECTION 2.0 INSTALLATION SECTION 2.0 INSTALLATION 2.1 UNPACKING AND INSPECTION. In most cases, the pH sensor can simply be installed as shipped and readings with an accuracy of ± 0.6 pH Inspect the outside of the carton for any damage. If dam- may be obtained. -
Page 8: Dimensional Drawing
MODEL TF396 SECTION 2.0 INSTALLATION MILLIMETER INCH DWG. NO. REV. 4TF39604 FIGURE 2-1. Dimensional Drawing SENSOR CABLE WITH CONNECTOR - NOT SHOWN MILLIMETER INCH Process Connection Threads 3/4 inch 1 inch 1-1/2 inch FIGURE 2-2. Flow-Through Tee with Adapter (PN 915240-xx*) -
Page 9: Flow-Through And Insertion Installations
MODEL TF396 SECTION 2.0 INSTALLATION DWG. NO. REV. 40396P05 FIGURE 2-3. Flow-Through and Insertion Installations DWG. NO. REV. 4TF39601 FIGURE 2-4. Model TF396 with Insertion Mounting Adapter PN 23242-02... -
Page 10: Submersion Installations
MODEL TF396 SECTION 2.0 INSTALLATION WHEN INCH AND METRIC DIMS ARE GIVEN MILLIMETER INCH DWG. NO. REV. 4TF39603 DWG. NO. REV. 4TF39602 FIGURE 2-5. Submersion Installations... -
Page 11: Low Flow Cell
MODEL TF396 SECTION 2.0 INSTALLATION MILLIMETER SENSOR CABLE INCH (OR VP CONNECTOR - NOT SHOWN) FIGURE 2-6. Low Flow Cell PN 23728-00 FIGURE 2-7. Jet Spray Cleaner PN 12707-00... -
Page 12: Wiring Model Tf396
MODEL TF396 SECTION 3.0 WIRING - MODEL TF396 SECTION 3.0 WIRING — MODEL TF396 Figures in this section provide the guidelines for wiring the TF396 sensor to various analyzers/transmitters. To determine which wiring guideline to use, locate the model number of the analyzer/transmitter to be installed. 1. -
Page 13: Wiring To Model 1055
MODEL TF396 SECTION 3.0 WIRING - MODEL TF396 DWG. NO. REV. 41055102 DWG. NO. REV. 14055103 FIGURE 3-1. Wiring to Model 1055. -
Page 14: Wiring To Model 54E
MODEL TF396 SECTION 3.0 WIRING - MODEL TF396 DWG. NO. REV. DWG. NO. REV. 40508114 40054E04 FIGURE 3-2. Wiring to Models 3081, 4081, & 5081. FIGURE 3-2. Wiring to Model 54e. -
Page 15: Start Up And Calibration
MODEL TF396 SECTION 4.0 START UP AND CALIBRATION SECTION 4.0 START UP AND CALIBRATION 4.1 SENSOR PREPARATION. Recommended pH Sensor Standardization: For maximum accuracy, the sensor can be standardized In most cases, the pH sensor can simply be installed as shipped online or with a process grab sample after a buffer calibra- and readings with an accuracy of ±... -
Page 16: Maintenance
MODEL TF396 SECTION 5.0 MAINTENANCE SECTION 5.0 MAINTENANCE The Model TF396 Sensors require minimum mainte- CAUTION nance. The sensor should be kept clean and free of The solution used during the following check is an debris and sediment at all times. The frequency of acid and should be handled with care. -
Page 17: Return Of Material
MODEL TF396 SECTION 6.0 RETURN OF MATERIAL SECTION 6.0 RETURN OF MATERIAL 6.1 GENERAL. 6.3 NON-WARRANTY REPAIR. To expedite the repair and return of instruments, prop- The following is the procedure for returning for repair er communication between the customer and the fac- instruments that are no longer under warranty: tory is important. - Page 18 DUPLICATE SHIPMENT REFERENCE ROSEMOUNT ANALYTICAL SALES ORDER NO.__________ RETURN FOR CREDIT RETURN AUTHORIZED BY: ______________________________________ WARRANTY DEFECT____________________________________________________________________________________ _____________________________________________________________________________________________________ 24-6047 Emerson Process Management Rosemount Analytical Inc. 2400 Barranca Parkway Irvine, CA 92606 USA Tel: (949) 757-8500 Fax: (949) 474-7250 http://www.raihome.com © Rosemount Analytical Inc. 2005...
- Page 19 NESS FOR PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO ANY OF THE GOODS OR SERVICES. RETURN OF MATERIAL Material returned for repair, whether in or out of warranty, should be shipped prepaid to: Emerson Process Management Liquid Division 2400 Barranca Parkway...
- Page 20 ON-LINE ORDERING NOW AVAILABLE ON OUR WEB SITE right now. http://www.raihome.com Specifications subject to change without notice. Credit Cards for U.S. Purchases Only. Emerson Process Management Liquid Division 2400 Barranca Parkway Irvine, CA 92606 USA Tel: (949) 757-8500 Fax: (949) 474-7250 http://www.raihome.com...
