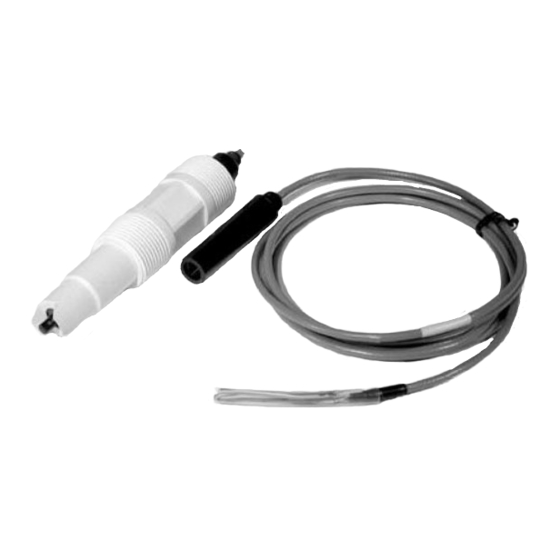

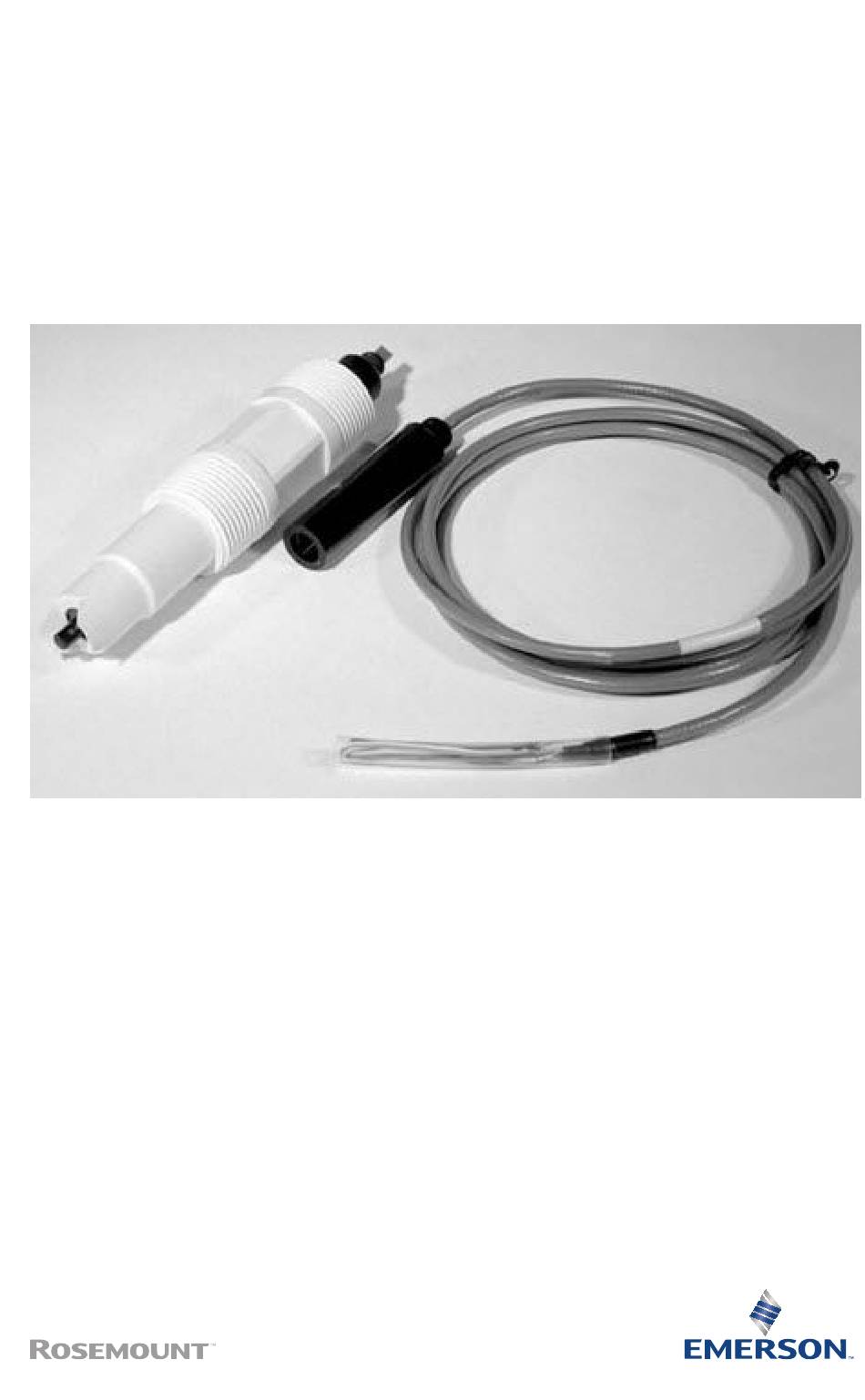

- Page 1 Quick Start Guide 00825-0100-3960, Rev AB March 2020 ™ Rosemount TF396 ™ TUpHFET Combination pH Sensor...
- Page 2 If this Quick Start Guide is not the correct one, call 1-800-854-8257 or 949-757-8500 to request the correct Quick Start Guide. Save this Quick Start Guide for future reference. • If you do not understand any of the instructions, contact your Emerson representative for clarification. •...
-
Page 3: Table Of Contents
March 2020 Quick Start Guide Warranty Seller warrants that the firmware will execute the programming instructiosn provided by Seller, and that the Goods manufactured or services provided by Seller will be free from defects in materials or workmanship under normal use and care until the expiration of the applicable warranty period. Goods are warranted for twelve (12) months from the date of intial installation or eighteen (18) months from the date of shipment by Seller, whichever period expires first. - Page 4 Quick Start Guide March 2020 Emerson.com/Rosemount...
-
Page 5: Description And Specifications
Emerson has specifically designed all TUpH sensor models for improved performance in harsh, dirty, or abrasive applications where large quantities or suspended solids are present. - Page 6 -10 to 100 psig (32 to 790 kPa [abs]) at 122 °F (50 °C) Minimum process 75 µS/cm; nominal: 100 µS/cm conductivity Cable lengths 20 ft., 50 ft. (6.1 m, 15.2 m) Weight/shipping 1 lb./2 lb. (0.45 kg/0.9 kg) weight Emerson.com/Rosemount...
-
Page 7: Install
March 2020 Quick Start Guide Install Unpack and inspect WARNING Buffer solution in the vinyl boot may cause skin or eye irritation. CAUTION Wet electrode tip at all times to maximize storage life. CAUTION Cable connection at back of sensor body is fragile. Do not overtighten. - Page 8 Quick Start Guide March 2020 Mount Emerson has designed the sensor to be located in industrial process environments. Do not exceeed temperature and pressure limitations at any time. A caution label regarding this matter is attached to the sensor. Please do not remove this label.
- Page 9 March 2020 Quick Start Guide Figure 2-1: Dimensional Drawing A. Connection, preamp cap adapter with cable. PN 23991-02/03 B. 1-in. MNPT (two places) C. 1-in. wrench opening D. Reference E. Electrode Quick Start Guide...
- Page 10 Figure 2-2: Flow-Through Tee with Adapter (PN 915240-xx*) A. Adapter retrofit PN 33211-00. B. O-ring must be in place prior to use. C. Process connection threads: two places. D. 2-in. (50.8 mm) scheduled 80 "T". E. Sensor cable with connector - not shown. Emerson.com/Rosemount...
- Page 11 March 2020 Quick Start Guide Process connection threads ¾ in. 1 in. 1½ in. Figure 2-3: Flow-Through and Insertion Installations A. Straight flow shown B. 1½-in. pipe tee with reducing bushing PN 2002011 C. Pipe "Y" installation shown D. 1½-in. Pipe "Y" (by others) E.
- Page 12 B. 1-135 Viton O-ring. O-ring must be in place prior to use (PN 9550175). C. Nut, hex union 2-in. 3-in. wrench opening (304 stainless steel). D. 2.531.8 Acme thread (typ). E. Neck, union fitting (316 stainless steel). 2⅝-in. wrench opening. F. 1½-in. MNPT. Emerson.com/Rosemount...
- Page 13 March 2020 Quick Start Guide Figure 2-5: Submersion Installations Regularly check to make sure connections are water tight. A. 2-in. pipe mounting bracket PN 2002565 B. Junction box: PN 23550-00 (without preamp) C. 1-in. pipe by others D. 2 x 1-in. FNPT CPVC union PN 9320057 E.
- Page 14 F. Sweep pipe with 1-in. FNPT adapter. G. Unistrut 1⅝ x 1⅝ in. aluminum. H. 1½-in. pipe clamp, two places. I. Can be any convenient dimension. J. Customer handrail two places. K. Locking pin with bead chain. L. Mounting channel aluminum two places. M. Coupling. Emerson.com/Rosemount...
- Page 15 March 2020 Quick Start Guide Figure 2-7: Low Flow Cell PN 24901-00 Inlet and outlet connections are stainless steel and take ¼-in. OD tubing. Flow cell is polycarbonate with ¼-in. FNPT fittings. Wetted materials Body Acrylic CPVC Fittings 316 stainless steel Seals Buna N Quick Start Guide...
- Page 16 Quick Start Guide March 2020 Flow cell ratings Temperature 32 to 122 °F (0 to 50 °C) Maximum pressure 65 psig (549 kPa [abs]) Flow rate 2 to 5 gph (7.6 to 18.9 lph) Emerson.com/Rosemount...
- Page 17 March 2020 Quick Start Guide Figure 2-8: Jet Spray Cleaner PN 12707-00 A. Cleaning solution by others B. Solenoid valve or manual valve (supplied by others) C. Corrosion resistant tubing (supplied by others) D. Polypropylene ¼-in. compression fitting. E. ¼-in. 316 stainless steel F.
- Page 18 To prevent rain water or condensation from running into the sensor, Emerson recommends a weatherproof junction box. Run the sensor cable through a protective conduit for isolation from electrical interference or physical abuse from the process.
-
Page 19: Wire The Sensor
2. Run signal cable in a dedicated conduit (preferably an earth grounded metallic conduit) and keep it away from AC power lines. For your convenience, Emerson has furnished a wire nut kit (in a plastic bag wrapped around the cable. - Page 20 E. N/C - orange (no connection). F. Yellow (mV drain). G. White (resistance temperature device in). H. Red/black (resistance temperature device sense). I. Red (resistance temperature device return). J. Blue. K. Green. L. Black. M. White/black. N. Reference in. O. Reference shield. Emerson.com/Rosemount...
- Page 21 March 2020 Quick Start Guide P. Solution ground. Q. pH/mV shield (preamp). R. pH/mV shield (no preamp). S. pH/mV in. Quick Start Guide...
- Page 22 I. Jumper. J. Refer to image above for TB3 and TB4 connections. RC jumpers required for dual measurement only. See detail. K. Reference in. L. Reference shield. M. Solution ground. N. pH/mV shield (preamp). O. pH/mV shield (no preamp). Emerson.com/Rosemount...
- Page 23 March 2020 Quick Start Guide P. pH/mV in. Q. Black. R. White/black. Quick Start Guide...
- Page 24 K. +Resistance temperature device sense L. Yellow (mV drain) M. Red (resistance temperature device return) N. Red/black (resistance temperature device sense) O. White (resistance temperature device in) P. Black (reference in) Q. White/black (pH/mV) R. Green S. Blue T. Orange (no connection) Emerson.com/Rosemount...
- Page 25 March 2020 Quick Start Guide Figure 3-4: Wiring to Rosemount 54e A. Yellow (resistance temperature device shield) B. Red (resistance temperature device return) C. Red/black (resistance temperature device sense) D. White (resistance temperature device in) E. Black (reference in) F. Jumper G.
-
Page 26: Start Up And Calibrate
2. Rinse the buffer solution off of the sensor with distilled or deionized water. 3. Repeat Step 1 Step 2 using the second buffer solution. Once the transmitter has acknowledged both buffer solutions, a sensor slope (mV/pH) is established. You can find the slope value within the transmitter. Emerson.com/Rosemount... - Page 27 1. While obtaining a process solution sample, record the pH value that is shown on the transmitter display. Emerson recommends taking the sample close to the sensor. 2. Measure and record the pH of the process solution with another temperature compensated, calibrated pH instrument.
-
Page 28: Maintenance
= Resistance and T = Temperature in °C Table 5-2 for R and R values. Table 5-1: Temperature vs. Resistance of Automatic Temperature Compensated Elements Temperature in °C Resistance (ohms) ±1% Pt100 100.0 103.8 107.7 109.6 111.5 115.4 119.2 123.1 126.9 Emerson.com/Rosemount... - Page 29 March 2020 Quick Start Guide Table 5-1: Temperature vs. Resistance of Automatic Temperature Compensated Elements (continued) Temperature in °C Resistance (ohms) ±1% Pt100 130.8 134.6 138.5 Table 5-2: R and R Values for Temperature Compensation Elements Temperature compensation element Pt100 107.7 .00385 Clean electrode...
- Page 30 Quick Start Guide March 2020 Postrequisites Replace the sensor if cleaning does not restore sensor operation. Emerson.com/Rosemount...
-
Page 31: Return Of Material
3. Carefully package the materials and enclose your Letter of Transmittal. If possible, pack the materials in the same manner as they were received. 4. Send the package prepaid to: Emerson Automation Solutions 8200 Market Boulevard Chanhassen, MN 55317, USA Attn: Factory Repair RMA No._______________... - Page 32 2. Supply the purchase order number and make sure to provide the name and telephone number of the individual to be contacted should additional information be needed. 3. Do steps 3 and 4 in Warranty repair. Note Consult the factory for additional information regarding service or repair. Emerson.com/Rosemount...
-
Page 33: China Rohs Table
March 2020 Quick Start Guide China RoHS table Quick Start Guide... - Page 34 Quick Start Guide March 2020 Emerson.com/Rosemount...
- Page 35 March 2020 Quick Start Guide Quick Start Guide...
- Page 36 Linkedin.com/company/Emerson- Automation-Solutions The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a twitter.com/rosemount_news mark of one of the Emerson family of companies. Facebook.com/Rosemount All other marks are the property of their youtube.com/RosemountMeasurement respective owners.
