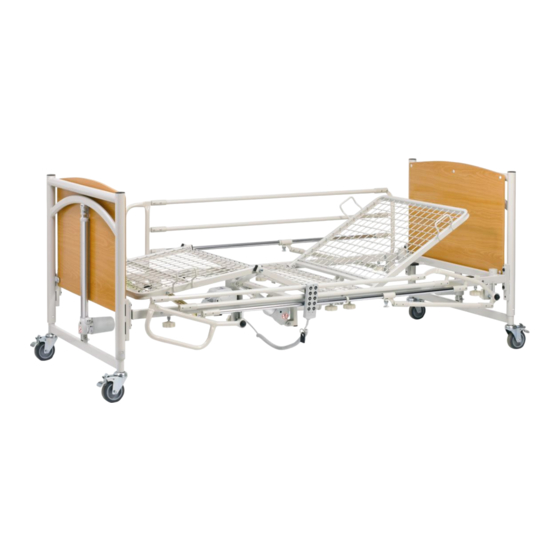

Tudor Bed
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tudor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Park House Healthcare Tudor

Summary of Contents for Park House Healthcare Tudor

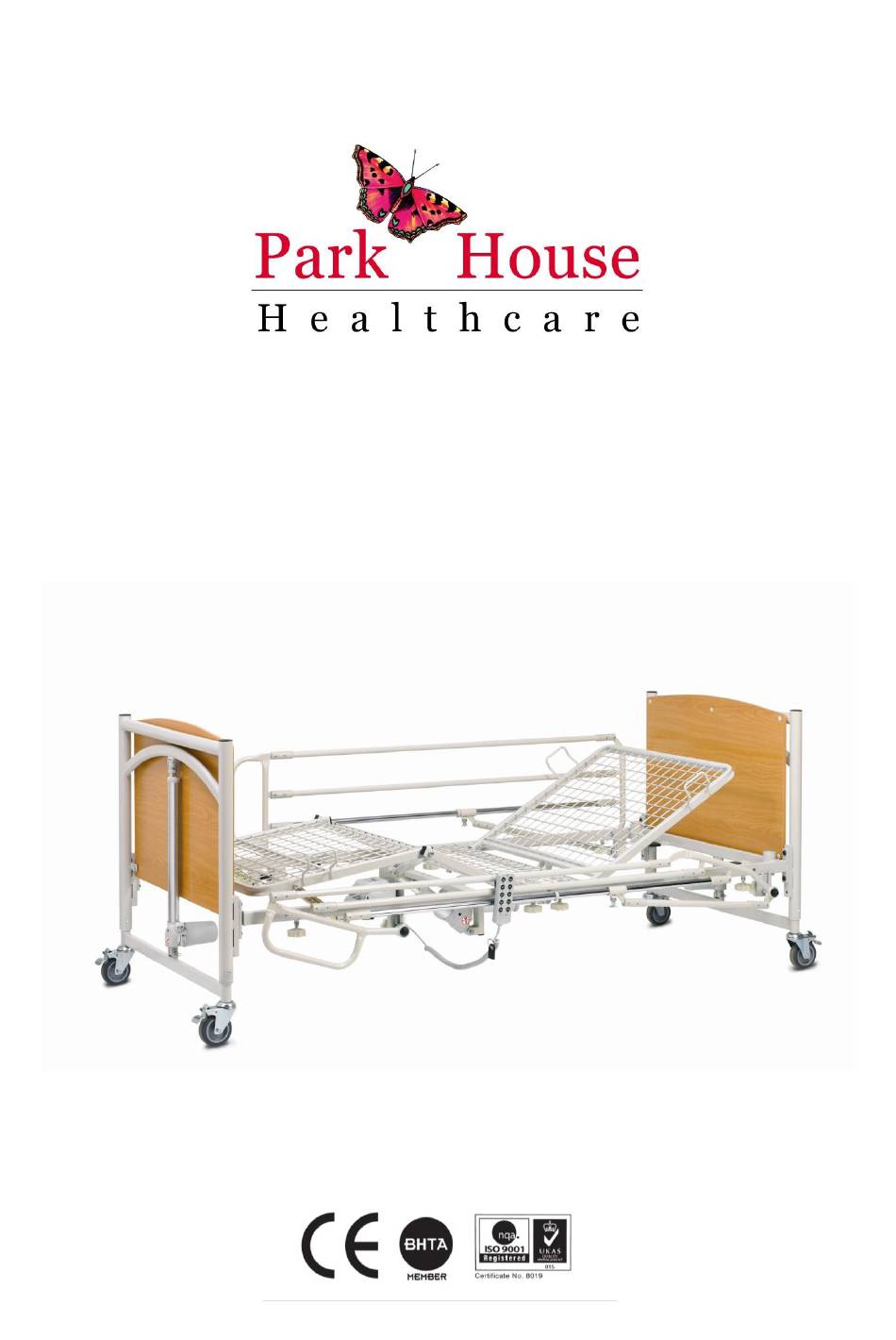

  • Page 1 Tudor Bed User Manual...

  • Page 2: Table Of Contents

    CONTENTS Section Page No. General Safety Instructions Features Installation Assembly Assembly of sleeping platform Attaching the end frames to the sleeping platform Connecting the cables Correct positioning of the cables Assembly of the side rails (optional) Using the integral bed frame extension Operating instructions Operation of the height adjustment and profiling functions The locking system of the handset...

  • Page 3: General Safety Instructions

    General Safety Instructions Before putting this bed into operation, it is very important that this User Manual is read carefully. The manual contains important information for safe and proper use of the bed. Keep this manual handy for future reference. All of the functions of this bed should be fully tested by a competent person before the bed is used.

  • Page 4: Assembly

    Assembly 4.1 Assembly of the sleeping platform Slide the side frames together as indicated in the diagram. Ensure both frames fit fully together until the outer tubes touch each other and the holes in the bed frame match up with the hole in the connecting bar. Insert the lock-pins and tighten the hand-screws on the underside on each side of the side frames.

  • Page 5: Connecting The Cables

    4.3 Connecting the cables The Control box has colour coding to clearly indicate the correct cable connections. IMPORTANT – Pleas ensure that all cables are connected correctly, and test all of the functions fully before using the bed Colour Codes 1.

  • Page 6: Assembly Of The Side Rails (Optional)

    4.5 Assembly of the side rails (optional) IMPORTANT – Please ensure that the side rail is located fully, correctly and securely into the integral bracket, and that the hand-screws are tightened up fully to lock the side-rail in position before use. The side rails must be fitted into the integral brackets as illustrated below, ensuring that they are pushed all the way down to the bottom of the bracket.

  • Page 7: Operating Instructions

    5. Operating instructions IMPORTANT - Any person using this bed must read this instruction manual carefully and they should be fully conversant with the correct operating procedures for its safe operation. 5.1 Locking system of the handset The handset provides a locking function to avoid a potentially dangerous tilting operation. Touching the handset with the magnet key will release the locked functions.

  • Page 8: Additional Safety Information

    If you have any doubts concerning the safe operation of this bed, do not use the bed, and call your local supplier or Park House Healthcare Ltd., Tel: 0845 0600 333 Persons assembling or using the bed should read the user manual and familiarise themselves with its operation.

  • Page 9: Maintenance And Care

    8. Storage / Transport Frame To prevent damage to the Tudor Bed or any components during storage or transportation, you should always use the storage / transport frame. To use this frame, please comply with the following steps: Disconnect the mains power plug and carefully roll up the power lead ensuring that there are no kinks.

  • Page 10: Troubleshooting

    1) No power supply – Plug power cable into mains socket and turn on. Handset or motors do not function. 2) Handset or motor defective - Contact Park House Healthcare Ltd. Motors suddenly have no 1) Switch off and unplug the mains cable; plug it back in and switch on.

  • Page 11: Ip66 Ingress Protection

    IP 66 – Ingress Protection The Tudor bed offers IP66 Ingress Protection on all electrical components and controls as standard. This is a very high level of protection which is completely dustproof and capable of being washed by a jet of water without affecting the electrical operation of the bed.
  • Page 12 PARK HOUSE HEALTHCARE LTD Whitehall 26 Business Park 1 Heathfield Lane Birkenshaw West Yorkshire BD11 2HW Head office Tel: 0845 0600 333 Free phone for hires: 08081 441881 International: 00 44 (0)1274 475000 E-mail: sales@parkhouse-hc.com E-mail: international@parkhouse-hc.com Web: http://www.parkhouse-hc.com...
