APG PT-500 Series User Manual
Analog output
Hide thumbs
Also See for PT-500 Series:
- User manual (22 pages) ,
- Installation manual (2 pages) ,
- User manual (22 pages)
Related Manuals for APG PT-500 Series
Summary of Contents for APG PT-500 Series
- Page 1 Series PT-500 - Analog Output Models User Manual 4-20 mA, 0-5 VDC, 1-10 VDC, mV/V...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................ iii Warranty and Warranty Restrictions ..............iv Chapter 1: Specifications and Options..............1 Dimensions ............................1 Specifications ........................... 2 Model Number Configurator ......................3 Electrical Pinout Table and Supply Power Table ..............4 Chapter 2: Installation and Removal Procedures and Notes ......4 Tools Needed ............................. -
Page 3: Introduction

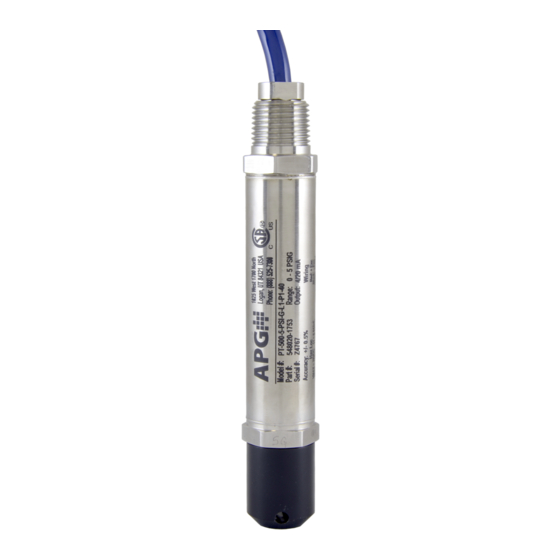

Introduction Thank you for purchasing a Series PT-500 Analog Output model submersible pressure transmitter from APG. We appreciate your business! Please take a few minutes to familiarize yourself with your PT-500 and this manual. PT-500 submersible pressure transmitters offer reliability in harsh industrial conditions and hazardous locations. -
Page 4: Warranty And Warranty Restrictions
Warranty and Warranty Restrictions This product is covered by APG’s warranty to be free from defects in material and workmanship under normal use and service of the product for 24 months. For a full explanation of our Warranty, please visit Contact Technical Support to receive a Return Material Authorization before shipping your product back. -
Page 5: Chapter 1: Specifications And Options
Chapter 1: Specifications and Options • Dimensions 0.95" 0.99" [24.1mm] [25.1mm] 0.89" 0.89" [22.5mm] [22.5mm] 1/2" NPTM 1/2" NPT 1.00" 1.00" [25.4mm] [25.4mm] 7.36" 7.19" [186.9mm] 6.30" [182.5mm] 6.47" [160.0mm] REMOVABLE [164.4mm] SENSOR CAGE ASSEMBLY NON-REMOVABLE CAGE ASSEMBLY 1.67" 1.65" [42.4mm] [41.9mm] 3.60"... -
Page 6: Specifications
• Specifications Performance Pressure Ranges 0 to 250 PSI Analog Outputs 4-20mA, 0/1-5VDC, 1-10VDC, mV/V Over Pressure 2X FSO Burst Pressure 3.0X FSO 1 Year Stability 0.75% FSO Accuracy Linearity, Hystereses & Repeatability ±0.25% of Full Scale (BFSL) up to ±0.1% of Full Scale ±1.0% for ≤... -
Page 7: Model Number Configurator
• Model Number Configurator Model Number: PT-500_____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ A. Cable Type F. NPTM □ - ▲ ▲ □ E0 Urethane - Blue 1/2” NPTM fitting for conduit,with pigtail □... -
Page 8: Electrical Pinout Table And Supply Power Table
• Electrical Pinout Table and Supply Power Table PT-500 Analog Output Models Pin Out Table 4-20 mA Voltage + Power/Signal + Power Black - Power/Signal - Power Green + Out White - Out Shield Drain Case Gnd Case Gnd Note: Either transducer case OR shield drain wire must be physically connected to low-impedance earth ground. PT-500 Analog Output Models Supply Power Table 4-20 mA 0-5 VDC... -
Page 9: Mounting Instructions
NOTE: If your PT-500 has a vent tube, do not seal, cover, or close the vent tube with anything other than an APG-provided venting cap or desiccant drying cartridge (See Fig- ure 3.3 and 3.4). Unapproved seals or covers will prevent proper sensor operation. -
Page 10: Removal Instructions
Chapter 3: Maintenance • General Care Your PT-500 series pressure transmitter is very low maintenance and will need little care as long as it is installed correctly. However, in general, you should: • For process connected sensors, keep the transmitter and the area around it generally clean. -
Page 11: Zero Adjust
• Vent Tube Drying Condensation in the vent tube can damage the electronics in your sensor, resulting in unreliable readings. APG offers two methods of preventing vent tube condensation: a venting cap, and a desiccant drying cartridge. The venting cap is a PVC tube with a hydrophobic patch that allows moisture to pass out of the tube without allowing water in (See Figure 3.3). -
Page 12: Repair And Returns
• Repair and Returns Should your PT-500 series pressure transmitter require service, please contact the factory via phone, email, or online chat. We will issue you a Return Material Authorization (RMA) number with instructions. • Phone: 888-525-7300 •... -
Page 13: Chapter 4: Hazardous Location Installation And Certification
Chapter 4: Hazardous Location Installation and Certification • Intrinsically Safe Wiring Diagram... -
Page 14: Non-Incendive Wiring Diagrams
• Non-Incendive Wiring Diagram... -
Page 15: Csa Certificate Of Compliance
• CSA Certificate of Compliance Certificate of Compliance Certificate: 1984045 Master Contract: 237484 (237484) Project: 70159942 Date Issued: 2018-03-29 Issued to: Automation Products Group Inc 1025 West 1700 North Logan, Utah 84321 Attention: Joseph James The products listed below are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and US or with adjacent indicator 'US' for US only or without either indicator for Canada only. - Page 16 Certificate: 1984045 Master Contract: 237484 Project: 70159942 Date Issued: 2018-03-29 Model PT-400-L3/L10xxxx Pressure Transmitter. Rated 9-28VDC, 0-5V, 20mA or 0-10V, 20mA; Maximum Ambient 85° C; Temperature Code T4; Maximum Working Pressure 10,000 PSI. Installed as per Drawing 9002794. Single Seal. Non-Incendive with the following Entity Parameters: Vmax, Ui = 28V Imax, Ii = 110mA Pmax, Pi = 0.77W...
- Page 17 Certificate: 1984045 Master Contract: 237484 Project: 70159942 Date Issued: 2018-03-29 CLASS 2258 04 - Process Control Equipment - Intrinsically Safe, Entity - For Hazardous Locations CLASS 2258 84 - Process Control Equipment - Intrinsically Safe, Entity - For Hazardous Locations - Certified to US Standards Class I, Div.
- Page 18 Certificate: 1984045 Master Contract: 237484 Project: 70159942 Date Issued: 2018-03-29 CLASS 2258 02 - Process Control Equipment - For Hazardous Locations CLASS 2258 82 - Process Control Equipment - For Hazardous Locations - Certified to US Standards Class I Div. 1 Groups C and D Model PT-405-xxxxxxxxx Pressure Transmitter.
