Prior to Operation

The leveling system shall only be operated under the following conditions:
1.
The unit is parked on a reasonably level surface.
2.
Be sure all persons, pets and property are clear of the unit while LCI Level-Up Automatic System is in

operation.

3.
Ensure the battery of the unit is fully charged or that the unit is plugged into shore power prior to
attempting to operate the system. Level-Up requires a minimum of 12V DC from the battery for proper
operation.
Operation

Basic Jack Operation

1.
Landing gear Jacks
Landing gear jacks can be operated any time the system is "ON" but NOT in the "AUTO MODE." By pushing
the "FRONT" button (Fig. 1G), both front or landing gear jacks can be extended. If the touch pad is put in the
"RETRACT" mode, indicated by the orange illuminated LED next to the "RETRACT" button (Fig. 1D), the front
jacks can be retracted together by pushing the "FRONT" button.
2.
Level-Up jacks
The Level-Up jacks operate when the "AUTO MODE" is activated or the touch pad is in the "MANUAL MODE."
Once system is in "MANUAL MODE," pressing the "REAR" button (Fig. 1J) will extend all Level-Up jacks at the
same time. Press the "LEFT" or "RIGHT" buttons (Fig. 1H and 1I) to operate Level-Up jacks on the left or right
side of the unit, respectively.

5th Wheel Operation

Unhitching Instructions

1.

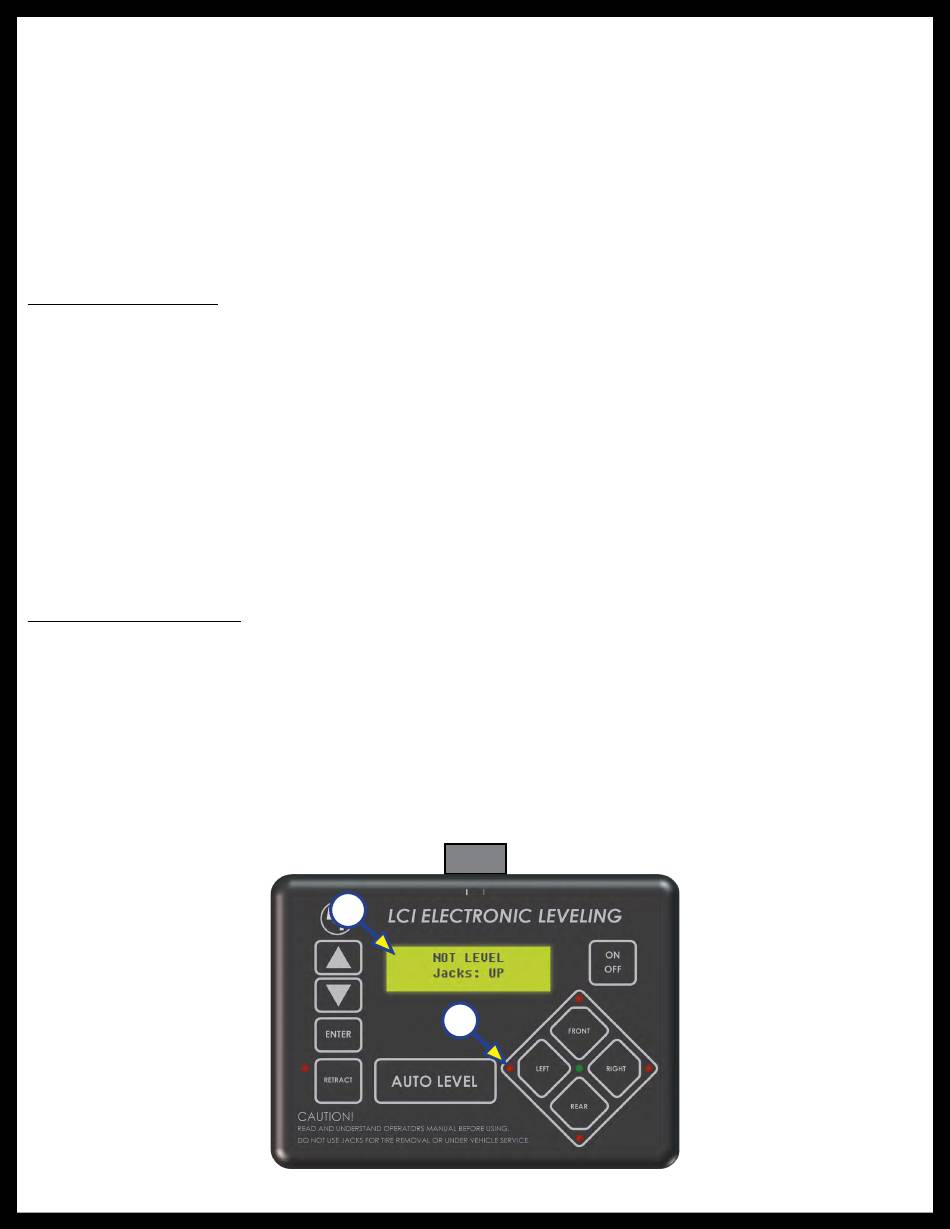

Push touch panel "ON/OFF," (Fig. 1K) to turn system on. LCD Screen (Fig. 1E) lights up.
2. LCD will display status ... "NOT LEVEL JACKS: UP" (Fig. 2A).
NOTE: Orange arrow lights (Fig. 2B) may come on, indicating the current disposition of the unit.
3.
Push "FRONT" button (Fig. 1G) to extend landing gear jacks and lift front of unit to take the weight of
the 5th wheel off of the hitch.
4.
Uncouple the 5th wheel connection on the tow vehicle.
5.
Pull tow vehicle away and park at a safe distance.
