4 Component Operation & Maintenance
This Section contains instructions for component operations and maintenance. Routine
maintenance tasks must be performed regularly to ensure that your Wash Select II continues
to operate at maximum efficiency.

4.1 Component Locations

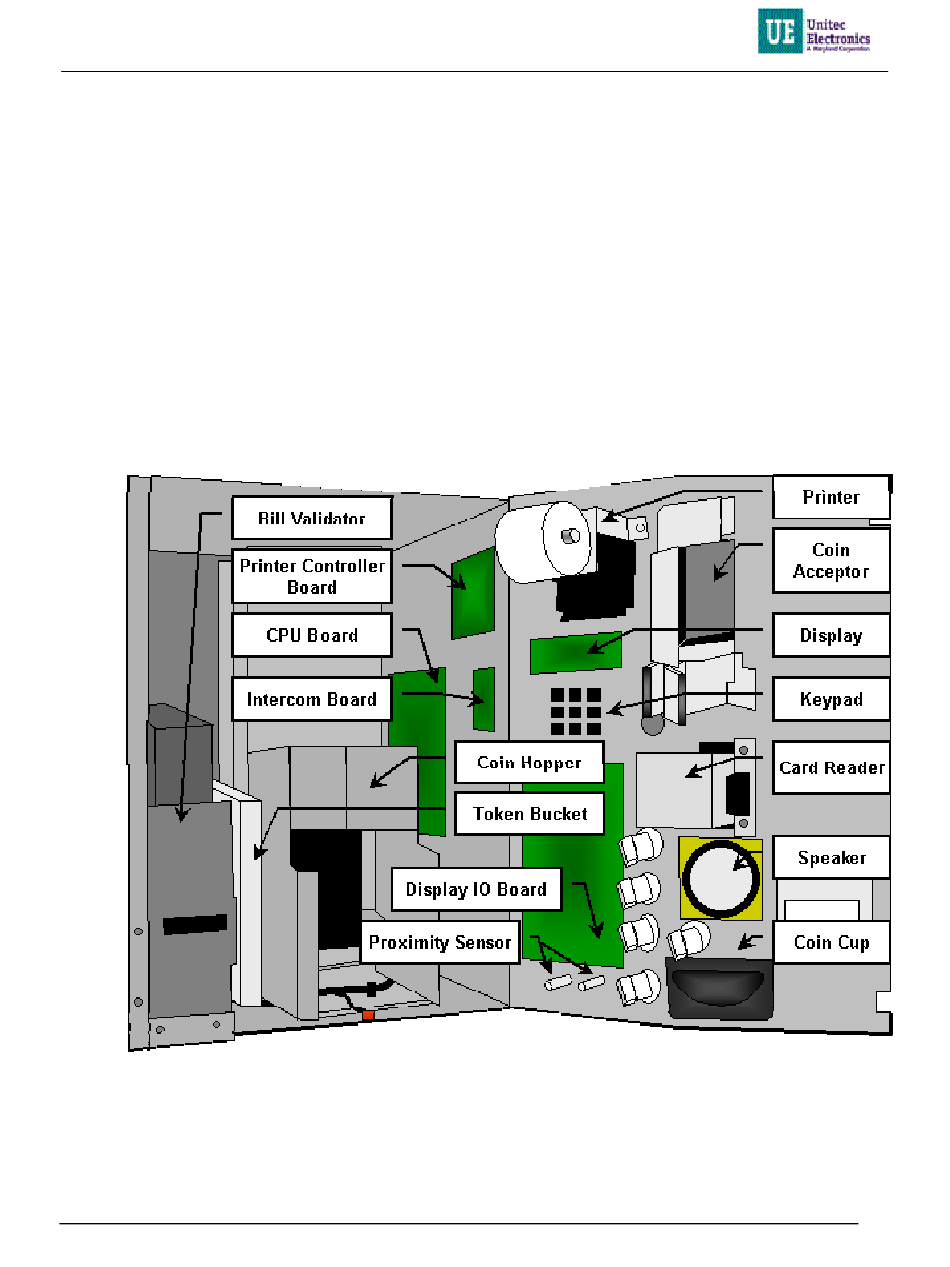

The following line drawing provides a general overview of where the Wash Select II primary
components are located. The printer, token bucket, printer controller board, intercom board,
card reader, and proximity sensor are components that can be added by purchasing the
corresponding option package.
Document Number:
Document Title:

Figure 4. Wash Select II Internal Component Locations

WS21058
WSII Operations Manual ver 6.10
