Place the new hopper arm into the slot exactly as the old one was.
10.
Place the new hopper wheel into the plastic hopper exactly as the old one was.
11.
4 . 5 . 5 . 2 R e - a s s e m b l e t h e H o p p e r
Once the new guide arm and dispensing-wheel have been replaced, reinstall the
1.
coin guide arm cover. (See Figure 18.)
Slide the black plastic top back onto the hopper-cube assembly. Securely latch it
2.
in place by locking the clasp.
Place the hopper-cube back into the metal housing and replace the two screws
3.
you removed previously. Be sure that the coin exit opening of the hopper-cube is
properly aligned with the exit chute of the metal housing. (See Figure 21.)
Document Number:
Document Title:

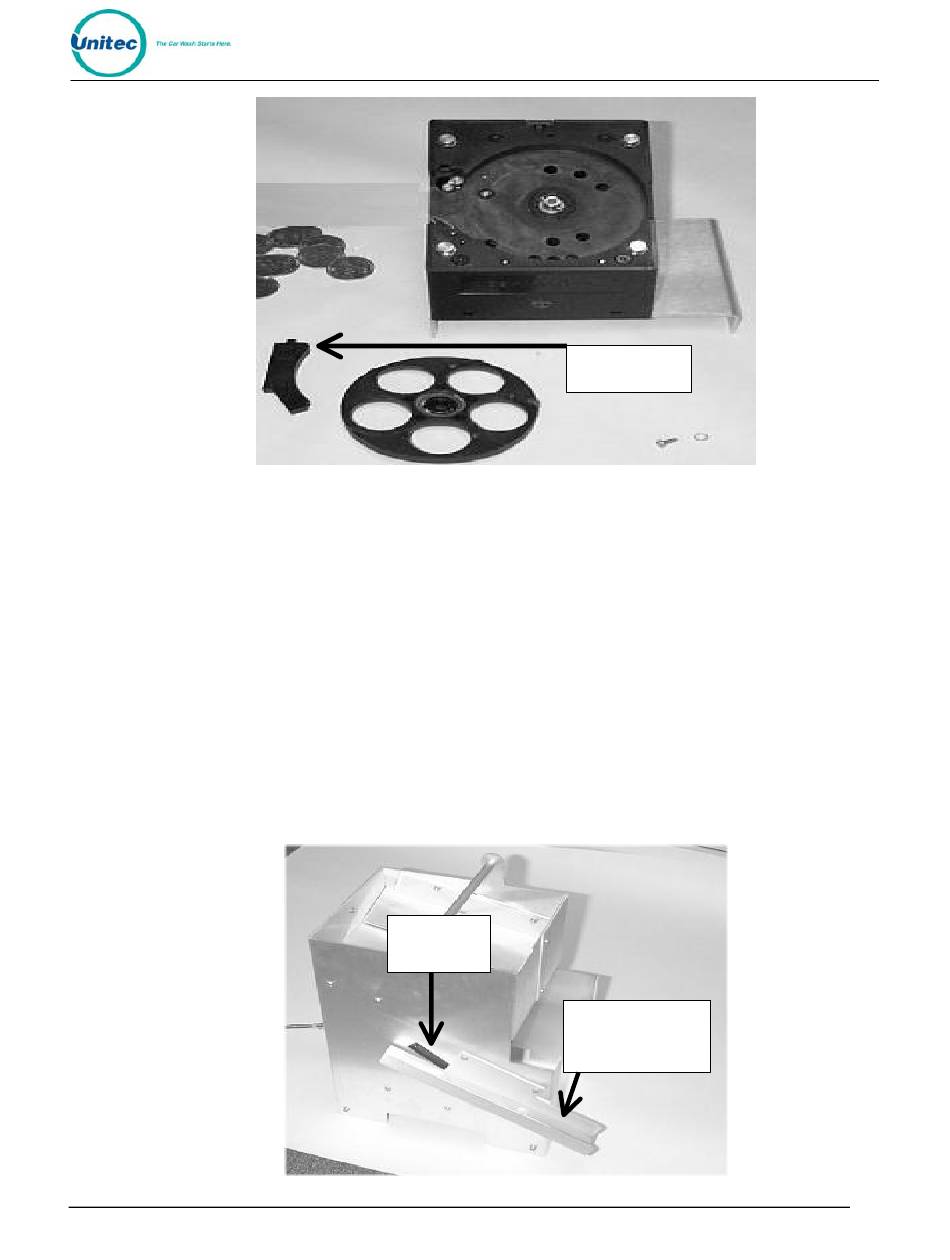

Figure 20. Hopper View - Removal of the Coin Guide Arm

Coin Exit
Opening

Figure 21. Hopper View - Coin Exit Opening and Chute
