Summary of Contents for Tramontina TGP-4700/G3543B-SB

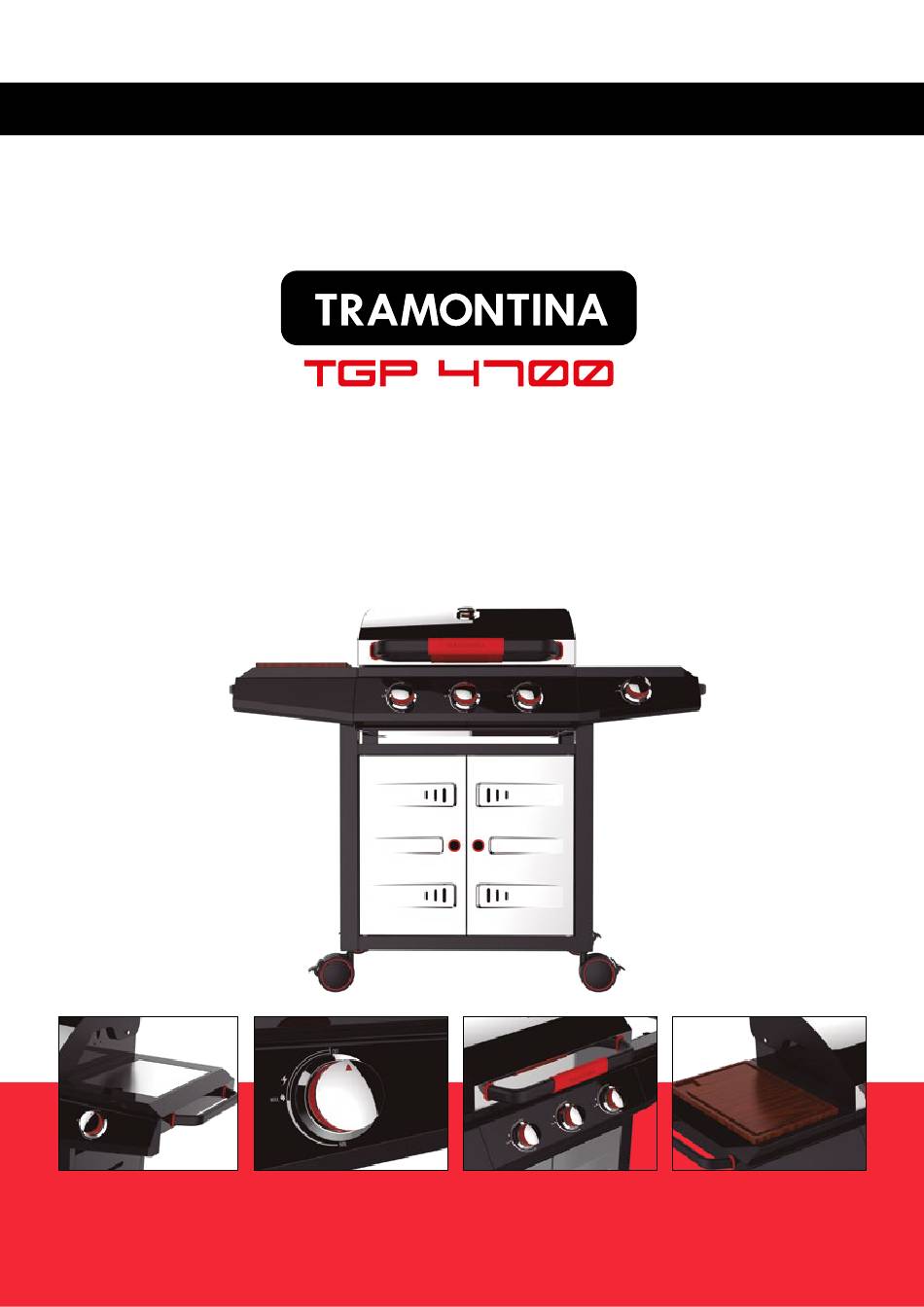

- Page 1 Safety and Instruction Manual Gas grill 26500/020 - TGP 4700...
-
Page 3: Table Of Contents
INDEX 1. INTRODUCTION ..................................4 2. SPECIFICATIONS ..................................4 3. ASSEMBLED PRODUCT DIMENSIONS ..........................4 4. COMPONENTS OF THE GAS GRILL ............................5 5. ASSEMBLY INSTRUCTIONS ..............................6 5.1. INITIAL CHECKS ................................6 6. GENERAL SAFETY INFORMATION ............................9 6.1. SAFETY SYMBOLS ...............................9 6.2. RECOMMENDATIONS OF USE: ATTENTION AND CAUTION ..................9 7. -
Page 4: Introduction
This grill is designed and recommended for outdoor use only. Special attention must be given to the gas burners. 2. SPECIFICATIONS Appliance code TGP-4700/G3543B-SB Power 13.7 kw Gas/hour consumption 978 g/h... -
Page 5: Components Of The Gas Grill
4. COMPONENTS OF THE GAS GRILL PART DESCRIPTION QUANTITY Caster wheels Front right leg Lower base Magnet Door Front left leg Supporting pillar Back left leg Left side barrier Base for cutting board Cutting board Trivet Metallic hose Side burner adjustment valve PART DESCRIPTION QUANTITY... -
Page 6: Assembly Instructions
5. ASSEMBLY INSTRUCTIONS STEP 3 5.1. INITIAL CHECKS Attach the front panel (item 19) to the front legs using M6x12 screws (item A). Then attach the magnet (item 24) using M3x10 screws and M3 nuts (items B and To quickly and successfully assemble your grill, please follow the instructions C) as shown in picture 04. - Page 7 STEP 6 STEP 9 Position the central unit (item 8) on the assembled structure as shown in picture 07. Attach the bases of the board and the side burner by fitting them in the A and E screws that were left loose. Tighten them as shown in picture 10. Picture 10 STEP 10 Picture 07...
- Page 8 STEP 14 Position the burner covers (item 4) on the central internal burner and left internal burner. Position the cooking grate (item 3) on the left side and the hot plate (item Cotter pin 2) on the right side. The supporting grate (item 1) must be placed on the adequate support.
-
Page 9: General Safety Information
• Follow this manual’s operation instructions as well as the video available on recommend using Tramontina saucepans and frying pans). the Tramontina website. Only use the grill when all parts are properly assembled • This grill should not be used in or on vehicles and/or boats. -
Page 10: Operating Instructions
7. OPERATING INSTRUCTIONS ATTENTION 7.1. INSTRUCTIONS FOR GAS CONNECTIONS • Whenever it’s necessary to change the cylinder or move the grill, close the cylinder valve and disconnect it from the grill. Before connecting the gas, make sure that the control knobs are set to “OFF”. If •... -
Page 11: Ignition Instructions
DANGER 8.1. “BRIDGE” IGNITION BETWEEN INTERNAL BURNERS • After not using the grill for a long time, checking for leaks. Verifying the conditions of the connections is necessary as well as cleaning and maintenance The TGP-4700 grill has a “Bridge” system (Pic. 26), which enables one internal work as there might be changes to the quality of the burners’... -
Page 12: Useful Guidelines
• Make sure that the food does not touch the lid when closing it. preheat at maximum power for about ten minutes. • In order to keep food juicy, we recommend using Tramontina spatulas or tongs to 10) Store the match holder together with the manual in a safe place, away from the prevent creating holes in the food. -
Page 13: Grates And Hot Plate
Wash the grates and the hot plate using a brush with metal bristles, mild detergent, • Irregular heating of the grill; and warm water. We recommend using a Tramontina brush with metal bristles. • Non-ignition of the burners. This might be caused by accumulated residue in the Rinse thoroughly and keep them dry. -
Page 14: Storing The Grill
4) Open the lid. The flat part must be 5) Remove the cooking grate and the cast-iron hot plate from the grill. in the top side 6) Remove the protective covers from the chosen burners. 7) Remove the screws that attach the chosen burner to the cookbox and carefully remove the burner (Pic. -
Page 15: Troubleshooting
Other information about technical support Please contact your nearest Tramontina Authorized Service (contact information • TRAMONTINA S/A CUTELARIA, due to the ongoing development of its products, is available on our website). If the defect and the complaint are verified, the reserves the right to alter general, technical, and aesthetic features without prior manufacturer will replace parts free of charge. - Page 16 Peru: Phone: 51 (1) 421 2135 | Singapore: Phone: (65) 6335 6264 United Arab Emirates: Phone: 971 (4) 450 4301 | 971 (4) 450 4302 USA: Phone: 1 (281) 340 8400 | South Africa: Phone: 27 (11) 300 9500 www.tramontina.com...
