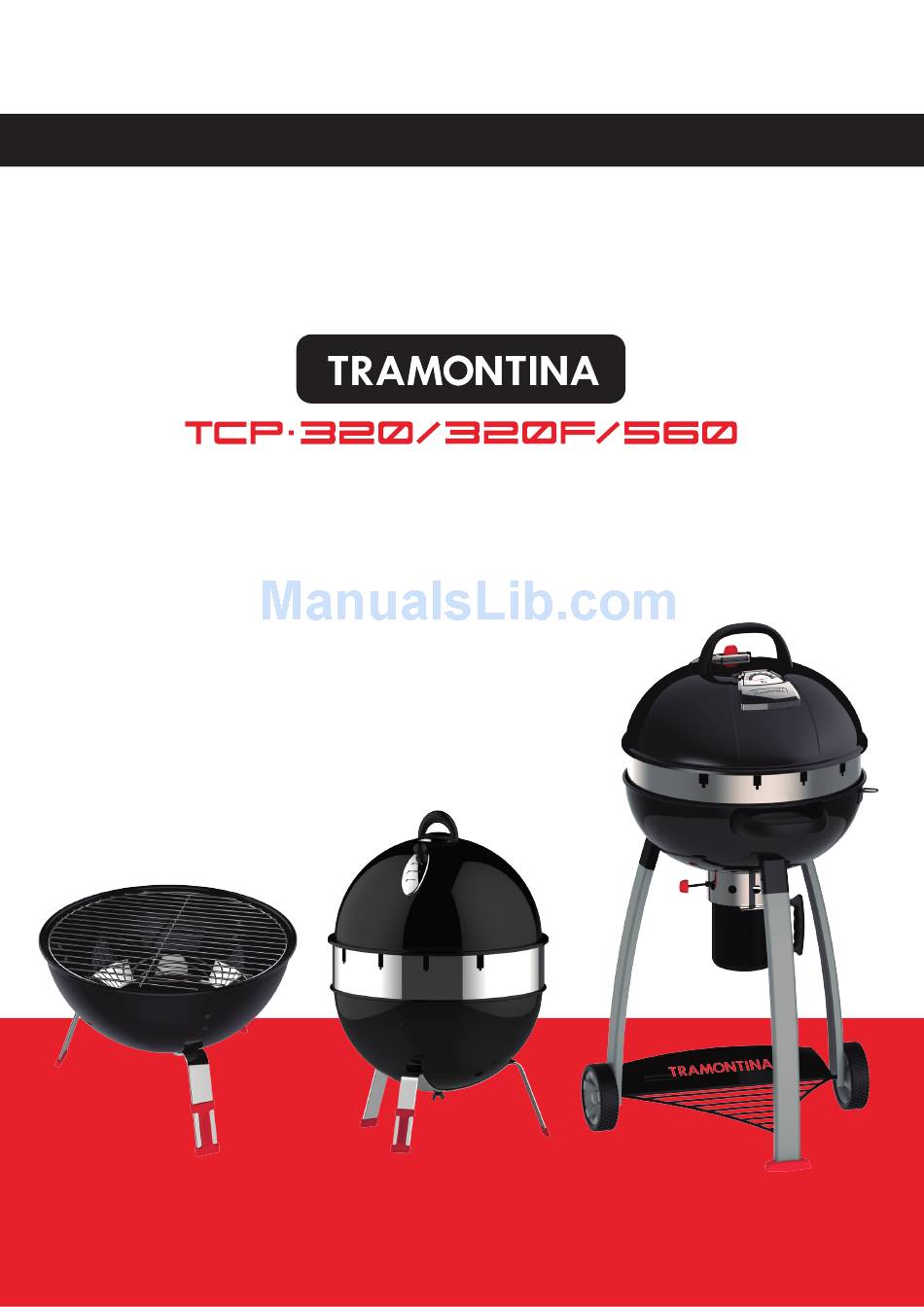

SAFETY AND INSTRUCTION MANUAL

Charcoal grill

26500/001 - TCP 320
26500/005 - TCP 320F
26500/010 - TCP 560

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCP 320 and is the answer not in the manual?

Questions and answers

Related Manuals for Tramontina TCP 320

Summary of Contents for Tramontina TCP 320

  • Page 1: Charcoal Grill

    SAFETY AND INSTRUCTION MANUAL Charcoal grill 26500/001 - TCP 320 26500/005 - TCP 320F 26500/010 - TCP 560...

  • Page 3: Table Of Contents

    CONTENTS 1. INTRODUCTION ..................................4 2. ASSEMBLED PRODUCT DIMENSIONS ..........................4 2.1. TCP-320 ..................................4 2.2. TCP-320F ..................................4 2.3. TCP-560 ..................................4 3. CHARCOAL GRILL COMPONENTS BY MODEL ........................5 3.1. MODEL TCP-320 ................................5 3.1.1. Components .................................5 3.1.2. Assembly instructions ............................5 3.2. MODEL TCP-320F .................................6 3.2.1.

  • Page 4: Introduction

    1. INTRODUCTION Non-compliance with these warnings and instructions will void the warranty, and This safety and Instruction manual must be read and followed prior to operating the may also result in serious bodily injury or death, as well as in a fire or an explosion grill for the first time and whenever questions arise.

  • Page 5: Charcoal Grill Components By Model

    3. CHARCOAL GRILL COMPONENTS BY MODEL 3.1. MODEL TCP-320 3.1.1. Components: PART DESCRIPTION QUANTITY LARGE SILICONE SUPPORT SMALL SILICONE SUPPORT UTENSIL FOR HANDLING COOKING GRATES STAINLESS STEEL COOKING GRATE STAINLESS STEEL CHARCOAL TRAY ENAMELED STEEL BOWL PAINTED STEEL TRIPOD M4 SCREW M4 NUT STAINLESS STEEL HOLDER FOR COOKING GRATE AND TRAY M6 SCREW...

  • Page 6: Model Tcp-320F

    3.2. MODEL TCP-320F 3.2.1. Components: PART DESCRIPTION QUANTITY LARGE SILICONE SUPPORT SMALL SILICONE SUPPORT UTENSIL FOR HANDLING COOKING GRATES STAINLESS STEEL COOKING GRATE STAINLESS STEEL CHARCOAL TRAY ENAMELED STEEL BOWL PAINTED STEEL TRIPOD M4 SCREW M4 NUT STAINLESS STEEL HOLDER FOR COOKING GRATE AND TRAY M6 SCREW METALLIC WASHER CERAMIC WASHER...

  • Page 7: Model Tcp-560

    STEP 3 STEP 4 Place the tray (item 5) on the lower part of the supports and the cooking grate (item Attach the holder (item 19) to the lid (item 20) using an M5 screw (item 16), a 4) on the upper part of the supports as shown in picture 06. If using the skewer washer holder (item 15) and a ceramic washer (item 13), as shown in picture 08.

  • Page 8: Assembly Instructions

    STEP 2 PART DESCRIPTION QUANTITY Attach the wheels (item 16) to the axis of the metallic grate (item 15) using the M6X12 SCREW cotter pins (item GG) and then attach the wheel caps (item 17), as shown in picture M6X12 SCREW M4X12 SCREW M5X10 SCREW M6 NUT...
  • Page 9 STEP 5 STEP 8 Attach the air inlet ring (item 20) to the bowl (item 8) using M6x12 screws (item Attach the handle (item 1) to the lid (item 3) using M6x12 screws (item AA), AA) and M6 nuts (item EE) as shown in picture 13. If deemed necessary, the screws metallic washers, and ceramic washers (items HH and II), and then attach the can also be attached using the metallic and ceramic washers.

  • Page 10: General Safety Information

    • Make sure that the food does not touch the lid when closing it. pin to the side holder. • In order to keep food juicy, we recommend using Tramontina spatulas or tongs to • Before handling cooking grates, ashes, charcoal, or the grill itself, make sure they prevent holes in the food.

  • Page 11: Cooking Methods

    6. COOKING METHODS 6.1. DIRECT METHOD 6.2. INDIRECT METHOD If using the direct method, use the grate for cooking keeping the bottom part of the If using the indirect method, use the grate for cooking more slowly, not subjecting food in direct contact with the heat from the brazier, as shown in pictures 21, 22, the bottom part of the food to direct contact with the heat from the brazier as shown 23, and 24.

  • Page 12: Cleaning Instructions

    • Wash the grates using a brush with metal bristles, mild detergent, and warm the consumer. water. Rinse well with clean water and keep the grill dry. We recommend using a Tramontina brush with metal bristles. It is necessary to clean cooking grates and Other information about technical support: spits after each use.
  • Page 14 Peru: Phone: 51 (1) 421 2135 | Singapore: Phone: (65) 6335 6264 United Arab Emirates: Phone: 971 (4) 450 4301 | 971 (4) 450 4302 USA: Phone: 1 (281) 340 8400 | South Africa: Phone: 27 (11) 300 9500 www.tramontina.com...
