We are very grateful for your purchasing
Communications Co., Ltd.
We believe
great convenience to your life and work.
We also believe that the quality and function of
demands for reliable communication.
Notice to the User
Before using this radio, read this operating instruction carefully for safe and convenient usage.
When you begin to use it, we deem that you have read this manual.
Keep this manual in a safe place and make it available to other operators in case the product is
passed on to other people.
When purchasing our product, please fill in the WARRANTY CARD with truth information, and
ask for the valid proof of purchase so as to protect your legal rights.
Kirisun and our authorized partners own the intellectual property of all the parts of this product
(include accessories). Any design and materials may not be modified, copied, extracted or
translated without the authorization of Kirisun or its authorized parities.
Due to the update or modification of the product, Kirisun owns the right to change the
specifications of software and hardware described in this manual without further notice.
Specifications and information contained in this manual are for reference only.
Kirisun reserves the right to interpret the mistakes and errors occurring in this manual, though all
the contents are checked carefully.

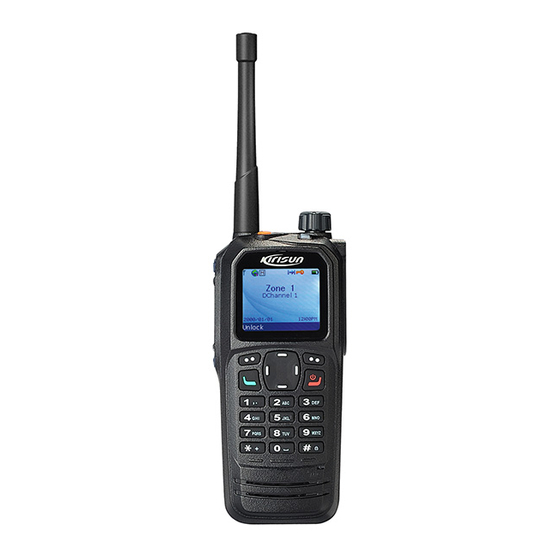

DP770 Instruction Manual
Instruction Manual
DP770
two-way radio, which always incorporates the latest technology, can bring
brand two-way radios produced by Kirisun
two-way radio can meet your
1/27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP770 and is the answer not in the manual?

Questions and answers

Related Manuals for Kirisun DP770

Summary of Contents for Kirisun DP770

  • Page 1 Kirisun and our authorized partners own the intellectual property of all the parts of this product (include accessories). Any design and materials may not be modified, copied, extracted or translated without the authorization of Kirisun or its authorized parities.
  • Page 2 DP770 Instruction Manual 2/27 Safety Before using this radio, read this operating instruction carefully for safe and convenient usage. This product can only be maintained by the professional technicians. Do not disassemble the radio by yourself. To avoid of the problems caused by electromagnetic interference or electromagnetic compatibility, turn off the radio in any facilities where posted notices instruct you to do so, such as hospital and other health care facilities.
  • Page 3 3. ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Kirisun belt-clip which is listed in instructions when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one side.

  • Page 4: Table Of Contents

    RF exposure, and what to do to as*sure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Kirisun radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.

  • Page 5: Unpacking And Checking

    DP770 Instruction Manual 5/27 Unpacking and Checking Unpack the radio carefully. We recommend that you check the radio and the supplied accessories listed in the following table before discarding the packing material. If any damage or loss has occurred during shipment, please contact the deliveryman or the dealer without delay.
  • Page 6 The radio battery is not charged before shipment. Please charge it before the initial use. KB-35L Li-on battery of Kirisun is applicable to this radio. When charging the battery for the first time after purchase or long-time storage (over 2 months), please repeat charging three times for the battery to achieve normal capacity.
  • Page 7 DP770 Instruction Manual 7/27 Note: Do not short-circuit the battery terminals or dispose the battery in fire. Do not disassemble the battery casing by yourself. 3) Installing the antenna Hold the base of the antenna and turn the antenna clockwise into the connector on the top of the radio until secure.

  • Page 8: Getting Started

    DP770 Instruction Manual 8/27 5) Installing the belt clip Match two holes on the belt clip with the holes on the back of the radio, and fasten them with the screwdriver. Getting Started A. Antenna B. Volume/Channel Knob Short press the key, the function of the knob switches from adjusting the volume to changing the channel.

  • Page 9: Basic Operation

    DP770 Instruction Manual 9/27 rotate counterclockwise to decrease. C. LCD Screen 160*128, 65K colors, 1.77TFT D. Universal Connector Connect USB programming cable, earphone and etc. E. Top Key Programmable, default: short press to enable emergency alarm, long press to exit emergency alarm.

  • Page 10: Powering On

    10/27 1) Powering on Long press the ON/OFF key to turn on the radio. Then the LCD displays Kirisun Logo. The backlight turns on automatically and a beep sound is heard. In the power on state, long press the ON/OFF key until Powering off screen exists, and then the radio is turn off.

  • Page 11: Programmable Functions

    DP770 Instruction Manual 11/27 Short press—press the key and release it soon. Long press—press and hold the key for several minutes (depending on the setting in CPS, usually within 0.5S~5.0S). Hold—always press and hold the key. Programmable Functions Items Functions...

  • Page 12: Functions Overview

    DP770 Instruction Manual 12/27 Radio Check Check if the target radio is active or not Radio Kill Kill one target radio Radio Enable Activate one killed radio Remote Monitor Turn on the speaker of the target radio to start transmitting without any prompt.

  • Page 13: Ptt Key

    DP770 Instruction Manual 13/27 Blank Input punctuation: ',', '.', '/', '\\', '?', '!', ':', ';', '\'', '"', '~', '@', '*', '#', '%', '(', ')', '[', ']', '{', '}', '<', '>' 6) PTT key There are two functions for the PTT key: (1) During the call, press the PTT key to call the other members joined in this call.

  • Page 14: Led Indicator

    DP770 Instruction Manual 14/27 Talk-around mode GPS is receiving the data. GPS enabled, but no data is received. If the icon is going round, it means the radio is scanning. The scan stops at the ordinary channel. The scan stops at the priority channel.

  • Page 15: Selecting A Channel And Contact

    Private call is a call from an individual radio to another individual radio. There are two types of private call in DP770: the first one, where a radio presence check is performed prior to setting up the call; the second one, the caller and the receiver makes the call immediately.

  • Page 16: Making A Call

    DP770 Instruction Manual 16/27 d. Press the PTT key to answer the call and the RED LED indicator lights on; e. Wait for the Talk Permit Tone to finish (if enabled*) and speak to the MIC; f. Release the PTT key to receive the call;...

  • Page 17: Advanced Functions

    DP770 Instruction Manual 17/27 4. Wait the Talk Permit Tone to finish (if enabled*), and speak to the MIC; 5. Release the PTT key to receive the call. If the target radio responses the call, GREEN LED indicator lights on, the receiver’s call type, alias or ID display on the caller’s LCD screen.

  • Page 18: Call Alert

    DP770 Instruction Manual 18/27 to select. b) The target ID/alias displays on the LCD screen, indicating that the radio check order is sending, and the RED LED indicator lights on. c) Wait for the response. d) If the target radio is active in the system, LCD displays “Target Radio Available”, or otherwise “Target Radio Not Available”.
  • Page 19 DP770 Instruction Manual 19/27 (1) Receiving and answer the call alert When receiving call alert and the call alert decoding is enabled, the radio will automatically answer the call. The LCD screen displays the caller’s alias/ID. The radio sends out the call alert tone periodically, and the ORANGE LED indicator flashes.

  • Page 20: Radio Kill/Revive

    DP770 Instruction Manual 20/27 During when the “Call Alert” order is sent out and the radio is waiting for the response, press , the radio will terminate the order and exit “Call Alert” mode. If the time to wait for the response is over, the radio will automatically exit this mode and displays “Call Alert Failed”.

  • Page 21: Remote Monitor

    DP770 Instruction Manual 21/27 By menu operation: In standby screen, press [Contacts] key to come to step c), or a) Press to enter the menu; b) Press or rotate the knob to select “ contacts”, and press to select. c) Press or rotate the knob to select “Contacts List”, and press...

  • Page 22: Emergency Alarm

    DP770 Instruction Manual 22/27 out, and the RED LED indicator lights on. c) Wait for the response. d) If the response is received, the LCD displays “Remote Monitor Successful”, or otherwise displays “Remote Monitor Failed”. By menu operation: In standby screen, press [Contacts] key to come to step c), or a) Press to enter the menu;...
  • Page 23 DP770 Instruction Manual 23/27 Emergency alarm with call Emergency alarm with voice to follow And every mode has the following types: Alarm only—After enabled the emergency alarm, the alarm sends out from the radio, but the Monitor Center could not receive any alarm signal.
  • Page 24 DP770 Instruction Manual 24/27 d) Wait the Talk Permit Tone to finish (if enabled *) and speak to MIC. e) Release the PTT key to receive. If the caller responses the call, the GREEN LED indicator lights on, and the icon indicating the transmitting radio’s type, alias or ID display on the LCD.
  • Page 25 DP770 Instruction Manual 25/27 the target radio’s PTT key, (the alert tone indicates that the channel is idle) which means that the channel is idle and you can answer the call. Press the PTT key to answer the call or long press the programmed “Emergency Alarm”...

  • Page 26: Menu

    DP770 Instruction Manual 26/27 If your radio sets as Silent with voice, there is no sound or sign in Emergency alarm mode, Hot MIC Duration or in receiving the calls from other radio, unless you press the PTT key to make a call or answer the call.
  • Page 27 DP770 Instruction Manual 27/27 (2) Make a private call from Contacts The steps are as follows: a) Press to enter the menu; b) Press or rotate the knob to select “ Contacts”, and press to select. c) Press or rotate the knob to select “Contacts List”, and press to select.
