Save the edited code.
•
Connect the board to the serial cable, and the cable to the USB of the computer (this is detailed
in chapter 3 above).
•
Identify the serial port number which the cable created in your personal computer.
•
In Arduino IDE select "Generic ESP8266 Module" board. This is done from Tools → Board →
Generic ESP8266 Module.
•

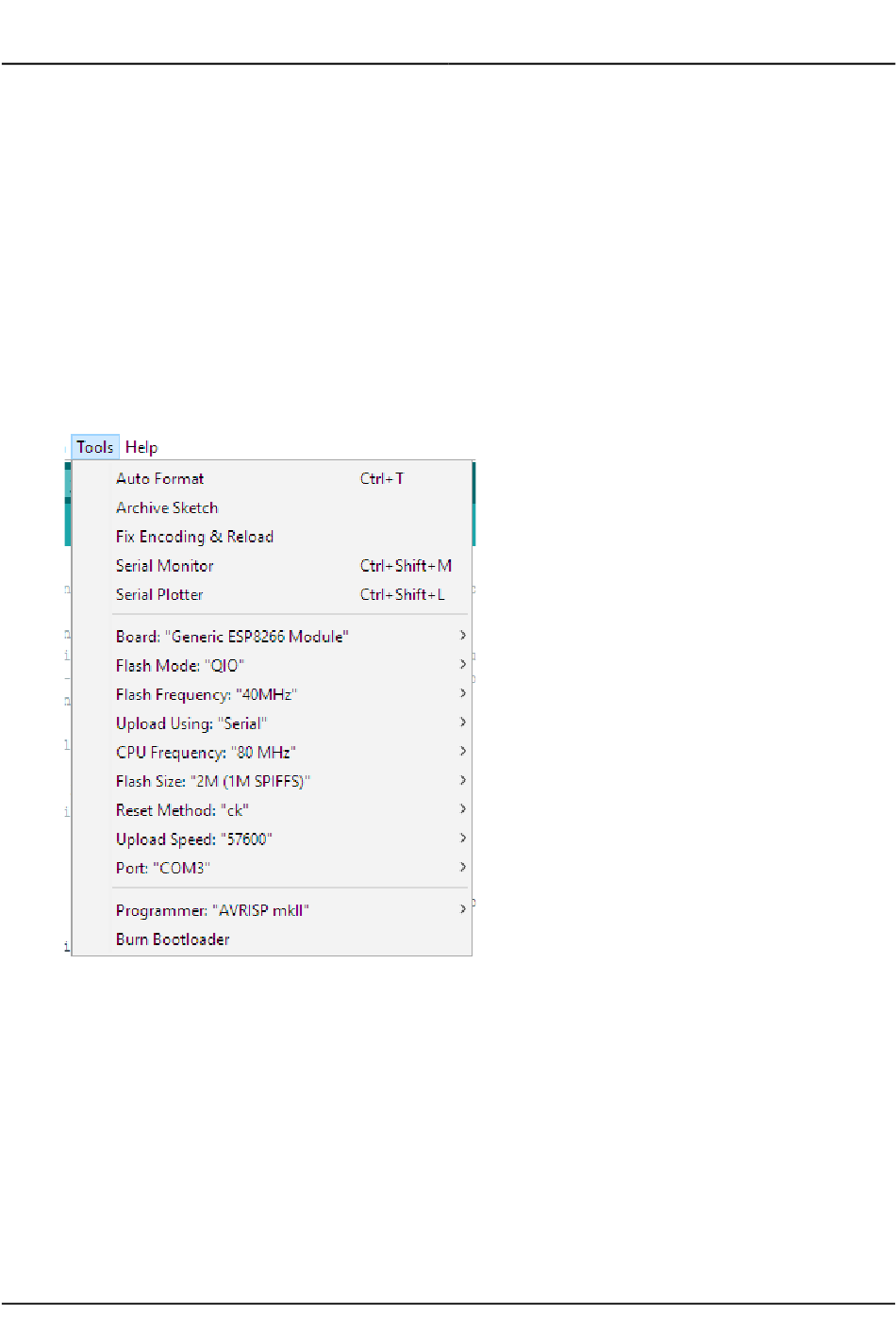

Edit the settings for upload! Navigate to Tools and edit the settings as show below (except for the
COM port number which you identified previously; use the COMx number of your setup):
The important settings (specific for Olimex ESP8266-EVB boards) are:
◦
Board: "Generic ESP8266 Module"
◦
Flash Mode: "QIO"
◦
Flash Size: "2M (1M SPIFFS)"
◦
Upload Speed: "57600"
◦
Port: "COMx"
