Summary of Contents for OLIMEX ESP32-GATEWAY

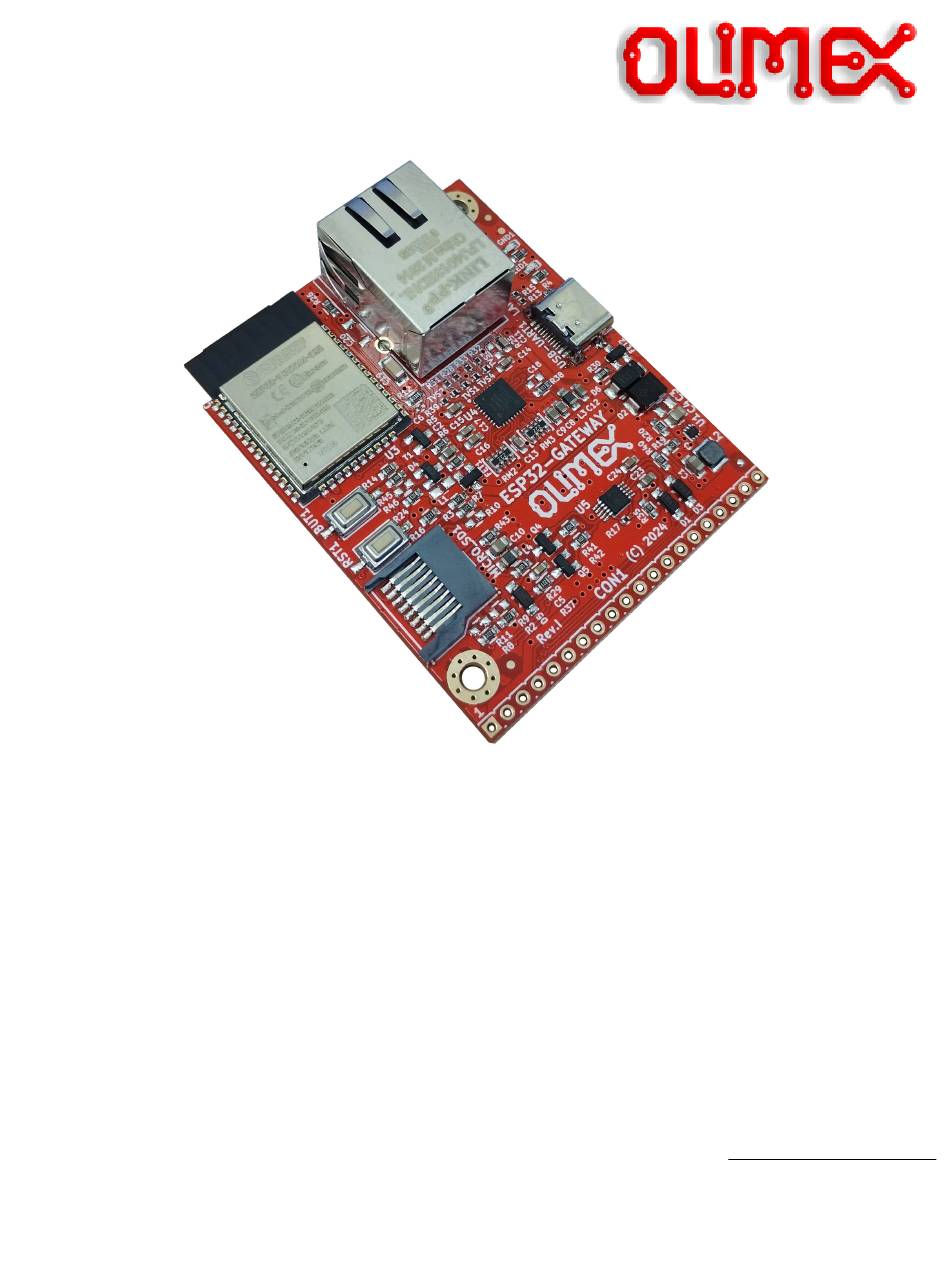

- Page 1 ESP32-GATEWAY User Manual Document revision 2.1, October 2024 www.olimex.com...
-
Page 2: Table Of Contents
1.1 ESP32-GATEWAY variants......................4 1.2 Board use requirements........................4 1.3 ESP32-GATEWAY Open Source Licenses..................5 2. ESP32-GATEWAY general layout......................6 3. ESP32-GATEWAY power supply and consumption................7 4. ESP32-GATEWAY schematics and dimensions..................8 5. ESP32-GATEWAY pinout description:....................8 6. ESP32-GATEWAY software installation....................9 7. FAQ................................ 9... -
Page 3: What Is Esp32-Gateway

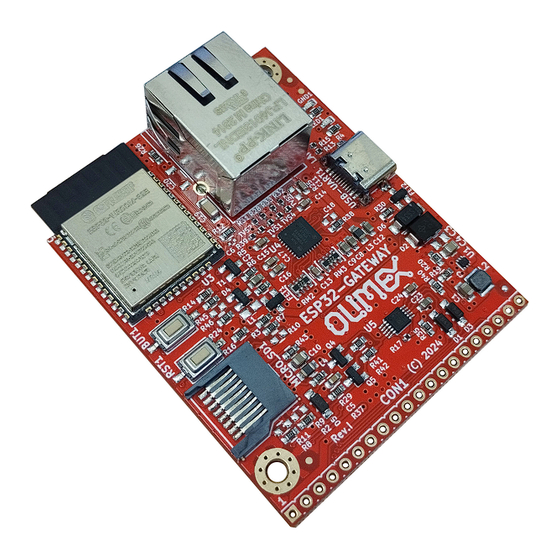

1. What is ESP32-GATEWAY ESP32-GATEWAY is a mature Open Source Hardware development board that incorporates n ESP32 module. The ESP32-GATEWAY board is designed and manufactured by Olimex, while the ESP32 module is designed and manufactured by Espressif systems. The ESP32 modules are extremely popular WIFI/BT modules due to their size, price, and very good documentation. -
Page 4: Esp32-Gateway Variants
Notice that older hardware revisions came with USB micro connector and require USB micro cable. The computer needs software compatible with ESP32 modules. Most commonly used tools are ESP- IDF and Arduino IDE with ESP32 package. You can use ESP32-GATEWAY with any software tool that supports the main ESP32 module. -
Page 5: Esp32-Gateway Open Source Licenses
1.3 ESP32-GATEWAY Open Source Licenses ESP32-GATEWAY is Open Source Hardware, listed in OSHWA.org here: https://certification.oshwa.org/bg000012.html The hardware files are released under CERN OSHW license. The software is released under GPL 3 license. The documentation is released under CC BY-SA 3.0... -
Page 6: Esp32-Gateway General Layout
2. ESP32-GATEWAY general layout Ethernet commector ESP32 module Mount hole User LED User Power status button Reset USB type C button MicroSD card holder CON1 header... -
Page 7: Esp32-Gateway Power Supply And Consumption
(uA) using the ESP32 power saving modes. The absolute maximum power ESP32-GATEWAY can draw from the power supply would be the determined by the maximum input of the regulator on the power input line. Of course, consider that on- board peripherals and the main module would use some of that current. -
Page 8: Esp32-Gateway Schematics And Dimensions
4. ESP32-GATEWAY schematics and dimensions ESP32-GATEWAY was designed with KiCAD (free and open-source CAD tool). ESP32-GATEWAY schematics and sources can be found at GitHub here: https://github.com/OLIMEX/ESP32-GATEWAY/tree/master/HARDWARE There are also PDF exports if you don’t want to install KiCAD. Board dimensions can be found here: https://www.olimex.com/Products/IoT/ESP32/ESP32-GATEWAY/resources/ESP32-GATEWAY-... -
Page 9: Esp32-Gateway Software Installation
◦ No. We updated the design with USB type C connector in 2024. It is the more popular connector nowadays. • I have ESP32-GATEWAY and it appears Ethernet is generating a lot of noise. How can I lower the noise? ◦ In hardware revisions prior to revision H, this might be caused by bigger than needed driver strength set by the software on the Ethernet clock pin (GPIO17). Lower the drive strength of... -
Page 10: Document Revision History
8. Document revision history Revision 2.1 October 2024 - Added FAQ section - Updated pictures Revision 2.0 October 2024 - Hardware design changed – main changes are USB connector now USB type C and Ethernet clock routing improved, jumpers added at bottom Revision 1.0 August 2024...
