2N Access Unit Configuration Manual

Hide thumbs Also See for Access Unit:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
®

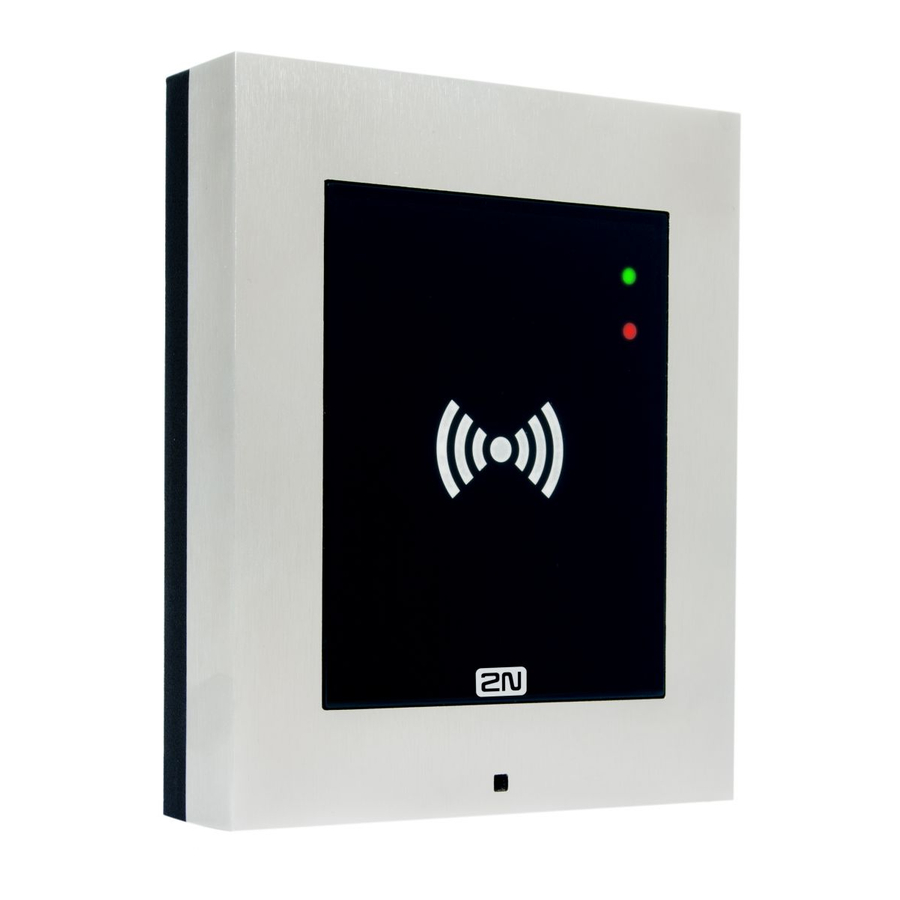

2N Access Unit
Access Control
Configuration Manual
Version:
2.24
