APCI-/CPCI-1500
♦ Make sure that the board is correctly connected by connecting the key of
the board to the key of the backplane (blue key connectors if the board
operates with 5 V)
♦ If there is a screw at the upper part of the front plate, use this screw to
fasten the board.
Note:
In order to pull the board out of the rack, pull it to the front at its grip. In some
cases the grip has to be tilted upwards first.

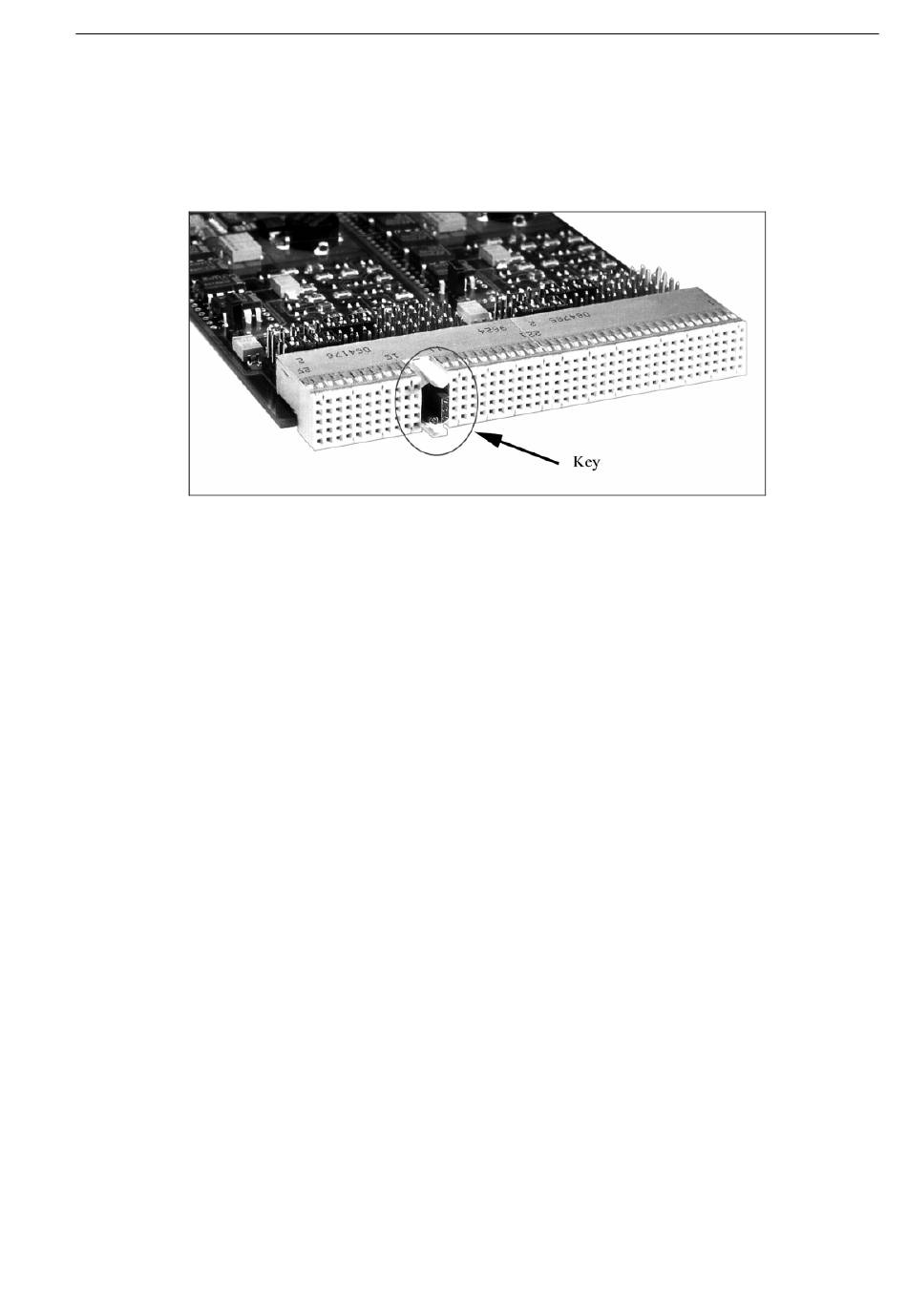

Fig. 5-6: Connector keying

Installation of the board
