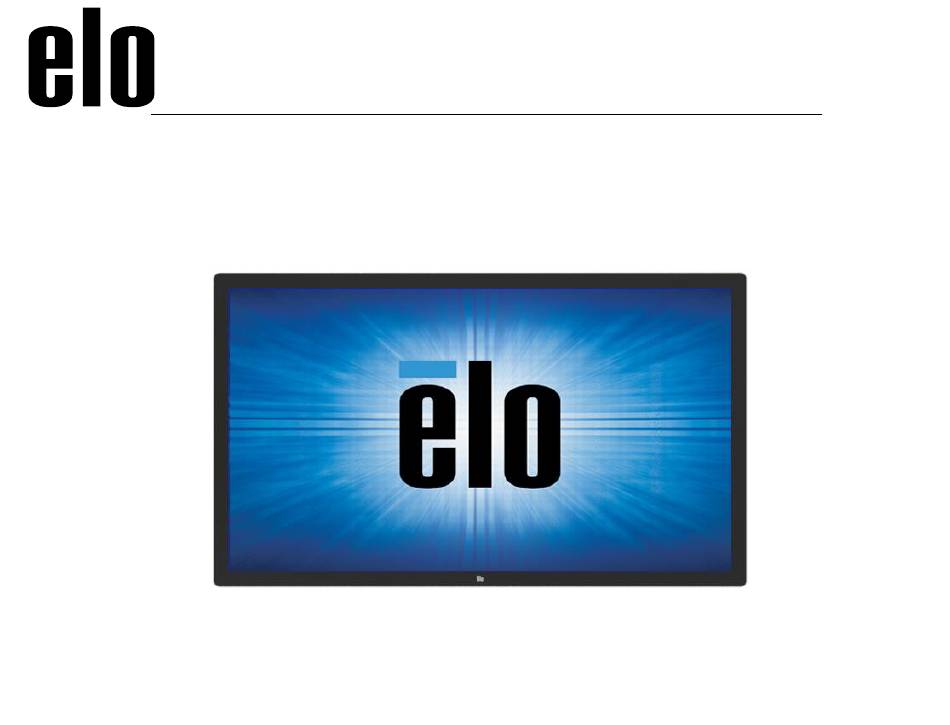

- Page 1 USER MANUAL Elo Touch Solutions IDS 6553L Monitor User Manual – IDS ET6553L UM600326 Rev A, page 1 of 37...
- Page 2 Copyright © 2019 Elo Touch Solutions, Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Section 1: Introduction ............................................... 4 Section 2: Unpacking ..............................................5 Section 3: IDS Touchmonitor Installation ........................................8 Section 4: Mounting Information ..........................................11 Section 5: Operation ..............................................14 Section 6: Maintenance Information ........................................25 Section 7: Technical Support ........................................... 26 Section 8: Regulatory Information .......................................... -
Page 4: Section 1: Introduction
Section 1: Introduction Product Description Your new Interactive Digital Signage (IDS) touchmonitor combines Elo Touch Solutions reliable performance with the latest developments in touchscreen technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. This touchmonitor incorporates a 10-bit color, active matrix thin-film-transistor, and digital signage LCD panel to provide superior display performance. -
Page 5: Section 2: Unpacking
Section 2: Unpacking Unpacking the Interactive Digital Signage Touchmonitor To unpack the IDS, follow these steps: 1. The carton should be oriented in the manner according to its labeling. The hinged plastic locks should be at the ‘bottom’. 2. Open and remove all 4 hinged plastic locks. User Manual –... - Page 6 3. Once the locks are removed, lift the cartons top lid off the bottom frame. 4. With the top lid removed, you now have access to the IDS touchmonitor and the included accessories. User Manual – ET6553L UM600326 Rev A, page 6 of 37...
- Page 7 Verify that the box contains: • 6553 Touchmonitor: • HDMI 2.0 cable • USB 3.0 cable (Type A plug to Type B plug) • power cable, IEC 60320-C13 to NA plug • power cable, IEC 60320-C13 to EU/KR plug • power cable, IEC 60320-C13 to UK plug •...
-
Page 8: Section 3: Ids Touchmonitor Installation
Section 3: IDS Touchmonitor Installation Connector Panel and Interfaces Remove the cable cover located on the back-right side of the monitor (when viewed in landscape orientation) to access the touchmonitors connector panel. Image of monitors available I/O ports User Manual – ET6553L UM600326 Rev A, page 8 of 37... - Page 9 IDS Touchmonitor: Connecting to an External Computer 1. Connect the included HDMI cable (or your own or DisplayPort cable) between the monitor and the video source. 2. Connect the USB touch cable between the monitor and your host PC. 3. Select the correct power cable for your region. Connect it between the AC power source and the touchmonitors POWER IN connector.
- Page 10 IDS Touchmonitor: Connecting to the Elo Computer Module (ECM) 1. Remove the cover in order to expose the computer module docking area. 2. Slide the Elo Computer Module into the bay and secure the ECM with the locking screws. 3. Select the correct power cable for your region. Connect it between the AC power source and the touchmonitors POWER IN connector.
-
Page 11: Section 4: Mounting Information
Section 4: Mounting Information Note: It is strongly recommended that at least two people handle, lift, or move these touchmonitors. Note: Do not leave the monitor facing down for long periods of time as this will cause permanent damage to the panel. Mounting Orientations The following mounting orientations are supported: landscape and portrait. - Page 12 Portrait Mode When rotating the monitor to portrait mode, ensure that the Elo logo appears in the same location as the pictures below. The IO ports will be located at the bottom of the monitor. Rear VESA Mount A four-hole, 600x600mm and 400x400mm mounting pattern is provided on the rear of the monitor. The VESA FDMI-compliant mounting are coded VESA MOUNT PER MIS-F, 400 x 400mm, M6 VESA MOUNT PER MIS-F, 600 x 600mm, M8...
- Page 13 Optional Mounting Methods Elo Wall mount kit: PN E282876 An optional Wall Mount kit is available for the IDS6553L monitors. Detailed information is available on the marketing specification drawing MS602094 at www.elotouch.com. Consult the wall mount user guide for detailed installation information. User Manual –...
-
Page 14: Section 5: Operation
Section 5: Operation Power To turn the touchmonitor on or off, press the touchmonitor power button once. If a computer module is installed, then the computer module will also turn on with the monitor. To gracefully shut down the computer module, follow the computer modules operating systems normal power off procedure. The system consumes low power when in SLEEP and OFF modes. - Page 15 Video Information An LCD panels native resolution is its width and height measured in number of pixels. In almost all cases, an image displayed on an LCD monitor will look best when your computers output resolution matches the LCD panels native resolution.
- Page 16 All touchmonitor adjustments made through the OSD are automatically stored as soon as they are entered. This feature saves you from having to reset your choices every time the touchmonitor is unplugged or powered off and on or if there is a power failure. User Manual –...
- Page 17 Parameter Available Adjustment Let’s Get Started On Boot Up On first boot up, the Language, Time and Time Zone must be selected When enabled, the monitor will automatically switch if a new video port is Video Port connected. Discovery Default: Enabled Adjust the brightness of the display.
- Page 18 If the color space is YUV mode, then Hue and Saturation can be varied in this menu. Preset color modes that change the color parameters to enhance color definitions. Picture Modes Available modes are: Standard, Movie, Gaming, Photo, Line mode, Color Enhance Default: Standard When enabled, displays full color range of HDMI (0-255) When disabled, displays the legacy color range (16-255)
- Page 19 Selecting “Recall Defaults” restores all factory default settings for OSD-adjustable Recall Defaults parameters (except OSD Language and OSD Time Settings) and for Preset Video Mode timings. Adjusts how long a period of OSD button inactivity the touchmonitor will wait before closing the OSD.
- Page 20 On-Screen Display (OSD) - Connected Through the RJ45 Connection Five OSD buttons can be found on the OSD remote. There is an LED light which shows the current state of the monitor. The following are the functions that relate to the designated button. Note: Opening the OSD menu from the remote will disable the touch functions on the OSD menu.
- Page 21 Audio Audio can be output from the following locations: 1. From the monitor speakers via the video channel 2. The Line Out port on the monitor IO ports 3. If an Elo Computer Module is installed, then then from the computers Line Out port See the “Audio”...
- Page 22 When the On/Off Schedule is Enabled, the user can choose when to leave the monitor on and when it should be off. Individual or multiple days can be chosen. Example: Have the monitor ON for Monday, Wednesday and Friday between 9:00AM and 5:00PM. All other days and time, the monitor shall be OFF.
- Page 23 Energy Saving Mode This monitor can meet Energy Star 7.0 requirements, if Energy Saving Mode is enabled. When Energy Saving Mode is enabled, maximum brightness will be limited to 65%. To restore full functionality of the touchmonitor, disable the Energy Saving Mode. Stylus (Active and Passive) Elo provides active stylus pens that can be used on the projected capacitance version of the monitor.
- Page 24 Camera (Optional) Elo provides an optional camera module which has a built-in microphone and proximity detection sensor. This camera is designed for video conferencing meetings and supports 1080P Full HD video output. User Manual – ET6553L UM600326 Rev A, page 24 of 37...
-
Page 25: Section 6: Maintenance Information
Section 6: Maintenance Information To avoid risk of electric shock, follow all safety notices and do not disassemble the touchmonitor or Computer Module. They are not user- serviceable. Do not block or insert anything inside any of the ventilation slots. The touchmonitor is equipped with a 3-wire, grounding power cord. -
Page 26: Section 7: Technical Support
Section 7: Technical Support Technical Assistance Support Technical Specifications visit www.elotouch.com/products visit www.elotouch.com/support for technical support for technical specifications for this device Refer to last page for worldwide technical support phone numbers. User Manual – ET6553L UM600326 Rev A, page 26 of 37... -
Page 27: Section 8: Regulatory Information
Section 8: Regulatory Information Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. Elo has put in place recycling arrangements in certain parts of the world. For information on how you can access these arrangements, please visit www.elotouch.com/e-waste-recycling-program/. - Page 28 Notice to Users in Canada: This equipment complies with the Class A limits for radio noise emissions from digital apparatus as established by the Radio Interference Regulations of Industrial Canada. CAN ICES3(A)/NMB3(A) This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference;...
- Page 29 1. In order to meet emission and immunity requirements, the user must observe the following: a. Use only the provided I/O cables to connect this digital device with any computer. b. To ensure compliance, use only the provided manufacturer’s approved line cord. The user is cautioned that changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 30 Agency Certifications The following certifications and marks have been issued or declared for the IDS 6553L monitor: • UL, FCC (US) - Class A • cUL, IC (Canada) • CB (International safety) • CE (Europe) - Class A • RCM (Australia) •...
- Page 31 China RoHS In accordance to Chinese law (Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products), the section below lists out the name and amount of the toxic and/or hazardous materials that this product may contain. Hazardous Substances Hexavalent Polybrominated...
- Page 32 Explanation of Markings In accordance with the SJ/T11364 requirement, electrical and electronic products are marked with the following pollution control logo. The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal operating conditions listed below, so that the use of this electronic information product will not result in any severe environmental pollution, any bodily injury, or damage to any assets.
- Page 33 Power Specifications Electrical Ratings Input 100 - 240 VAC 50/60Hz Operating & Storage Conditions Operating Conditions Temperature 0°C - 40°C Humidity 20% to 80% (non-condensing) Storage Conditions Temperature -20°C - 50°C Humidity 10% to 95% (non-condensing) User Manual - ET6553L UM600326 Rev.
-
Page 34: Section 9: Warranty Information
Section 9: Warranty Information For warranty information, go to http://support.elotouch.com/warranty/ User Manual – ET6553L UM600326 Rev. A, page 34 of 37... -
Page 35: Section 10: Appendix A
Section 10: Appendix A Light Sensor Curve Brightness Curve 95 100 100 Light Sensor Value User Manual – ET6553L UM600326 Rev. A, page 35 of 37... - Page 36 Color Sensor The color sensor functions according to the following chart: User Manual – ET6553L UM600326 Rev. A, page 36 of 37...
- Page 37 www.elotouch.com Visit our website for the latest • Product Information • Specifications • Upcoming Events • Press Releases • Software Drivers • Touchmonitor Newsletter To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you.
