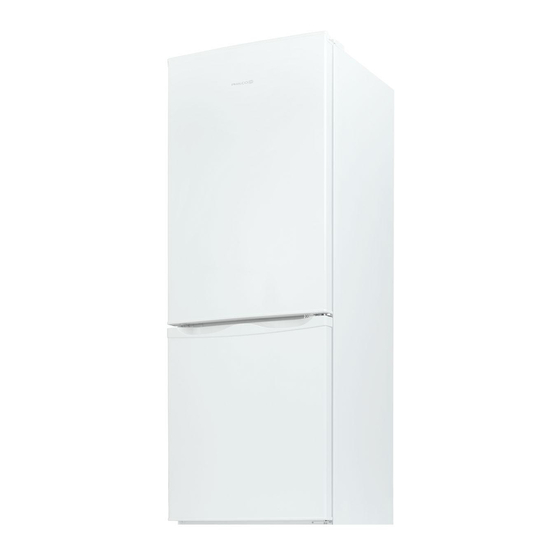

Philco PC 1652 Owner's Manual
  1. Manuals
  2. Brands
  3. Philco Manuals
  4. Refrigerator
  5. PC 1652
  6. Owner's manual

Philco PC 1652 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

REFRIGERATOR
OWNER'S MANUAL
PC 1652

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC 1652 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philco PC 1652

Summary of Contents for Philco PC 1652

  • Page 1 REFRIGERATOR OWNER’S MANUAL PC 1652...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2019, Fast ČR, a. s. Revision 04/2019...

  • Page 3: Table Of Contents

    CONTENTS PART 1: SAFETY INFORMATION ........................2 Safety for children and others who are vulnerable people ....................2 General safety ...................................... 3 Refrigerant ......................................5 Electrical safety ....................................6 Daily use ........................................ 7 Care and cleaning ....................................8 Installation Important! ..................................9 PART 2: INSTALLING YOUR NEW APPLIANCE ....................11 Ventilation of appliance .................................11 Leveling of appliance ..................................11...

  • Page 4: Part 1: Safety Information

    PART 1: SAFETY INFORMATION FOR YOUR SAFETY AND CORRECT USAGE, BEFORE INSTALLING AND FIRST USING THE APPLIANCE, READ THIS USER MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO AVOID UNNECESSARY MISTAKES AND ACCIDENTS, IT IS IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES.

  • Page 5: General Safety

    • KEEP ALL PACKAGING AWAY FROM CHILDREN AS THERE IS RISK OF SUFFOCATION. • IF YOU ARE DISCARDING THE APPLIANCE, PULL THE PLUG OUT OF THE SOCKET, CUT THE CONNECTION CABLE (AS CLOSE TO THE APPLIANCE AS YOU CAN) AND REMOVE THE DOOR TO PREVENT CHILDREN PLAYING FROM SUFFERING AN ELECTRIC SHOCK OR FROM CLOSING THEMSELVES INSIDE IT. • IF THIS APPLIANCE, FEATURING A MAGNETIC DOOR SEALS, IS TO REPLACE AN OLDER APPLIANCE HAVING A SPRING LOCK (LATCH) ON THE DOOR OR LID, BE SURE TO MAKE THE SPRING...

  • Page 6: Copyright © 2019, Fast Čr, A. S. Revision

    WARNING! IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD. WARNING! KEEP VENTILATION OPENINGS, IN THE APPLIANCE ENCLOSURE OR IN THE BUILTIN STRUCTURE, CLEAR OF OBSTRUCTION WARNING! DO NOT USE MECHANICAL DEVICES OR OTHER MEANS TO ACCELERATE THE DEFROSTING PROCESS, OTHER...

  • Page 7: Refrigerant

    REFRIGERANT THE REFRIGERANT ISOBUTENE (R600A) IS CONTAINED WITHIN THE REFRIGERANT CIRCUIT OF THE APPLIANCE, A NATURAL GAS WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY, WHICH IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION AND INSTALLATION OF THE APPLIANCE, ENSURE THAT NONE OF THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES DAMAGED.

  • Page 8: Electrical Safety

    ELECTRICAL SAFETY • THE POWER CORD MUST NOT BE LENGTHENED. • MAKE SURE THAT THE POWER PLUG IS NOT CRUSHED OR DAMAGED. A CRUSHED OR DAMAGED POWER PLUG MAY OVERHEAT AND CAUSE A FIRE. • MAKE SURE THAT YOU CAN ACCESS THE MAIN PLUG OF THE APPLIANCE. • DO NOT PULL THE MAIN CABLE. • IF THE POWER PLUG SOCKET IS LOOSE, DO NOT INSERT THE POWER PLUG. THERE IS A RISK OF ELECTRIC SHOCK OR FIRE. • YOU MUST NOT OPERATE THE APPLIANCE WITHOUT THE INTERIOR LIGHTING LAMP COVER. • THE FRIDGE IS ONLY APPLIED WITH POWER SUPPLY OF SINGLE PHASE ALTERNATING CURRENT OF 220~240V/50HZ.

  • Page 9: Daily Use

    DAILY USE • DO NOT STORE FLAMMABLE GASS OR LIQUIDS IN THE APPLIANCE. THERE IS A RISK OF AN EXPLOSION. • DO NOT OPERATE ANY ELECTRICAL APPLIANCES IN THE APPLIANCE(E.G. ELECTRIC ICE CREAM MAKERS, MIXERS ETC.). • WHEN UNPLUGGING ALWAYS PULL THE PLUG FROM THE MAINS SOCKET, DO NOT PULL ON THE CABLE. • DO NOT PLACE HOT ITEMS NEAR THE PLASTIC COMPONENTS OF THIS APPLIANCE. • STORE PRE-PACKED FROZEN FOOD IN ACCORDANCE WITH THE FROZEN FOOD MANUFACTURE’S INSTRUCTIONS. • THE APPLIANCES MANUFACTURES STORAGE RECOMMENDATIONS SHOULD BE STRICTLY ADHERED TO.

  • Page 10: Care And Cleaning

    • THE APPLIANCE IS HEAVY. CARE SHOULD BE TAKEN WHEN MOVING IT. • DO NOT REMOVE NOR TOUCH ITEMS FROM THE FREEZER COMARTMENT IF YOUR HANDS ARE DAMP/WET, AS THIS COULD CAUSE SKIN ABRASIONS OR FROST/FREEZER BURNS. • NEVER USE THE BASE, DRAWERS, DOORS ETC. TO STAND ON OR AS SUPPORTS. • NEVER TRANSPORT THE APPLIANCE IN A HORIZONTAL POSITION, BECAUSE THE OIL IN THE COMPRESSOR MAY FL OW INTO THE REFRIGERANT CIRCUIT. • FROZEN FOOD MUST NOT BE REFROZEN ONCE IT HAS BEEN THAWED OUT.

  • Page 11: Installation Important

    INSTALLATION IMPORTANT! • FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE INSTRUCTIONS GIVEN IN THIS MANUAL. • UNPACK THE APPLIANCE AND CHECK IF THERE ARE DAMAGES ON IT. DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT IT. IN THIS CASE RETAIN PACKING. • IT IS ADVISABLE TO WAIT AT LEAST FOUR HOURS BEFORE CONNECTING THE APPLIANCE TO ALLOW THE OIL TO FL OW BACK IN THE COMPRESSOR.
  • Page 12 SERVICE • ANY ELECTRICAL WORK REQUIRED TO DO THE SERVICING OF THE APPLIANCE SHOULD BE CARRIED OUT BY QUALIFIED ELECTRICIAN OR COMPETENT PERSON. • THIS PRODUCT MUST BE SERVICED BY AN AUTHORIZED SERVICE CENTER, AND ONLY GENUINE SPARE PARTS MUST BE USED. 1) LF THE APPLIANCE IS FROST FREE. 2) LF THE APPLIANCE CONTAINS FREEZER COMPARTMENT. NOTE: CHILDREN AGED FROM 3 TO 8 YEARS ARE ALLOWED TO LOAD AND UNLOAD REFRIGERATING APPLIANCES.

  • Page 13: Part 2: Installing Your New Appliance

    PART 2: INSTALLING YOUR NEW APPLIANCE Before using the appliance for the first time, you should be informed of the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat.

  • Page 14: Part 3: Description Of The Appliance

    PART 3: DESCRIPTION OF THE APPLIANCE View of the appliance Controller part Storage shelf. Crisper box Cover Crisper box Upper freezer drawer Middle freezer drawer Lower freezer drawer Adjustable feet Upper door shelf 10. Lower door shelf NOTE: Due to unceasing modification of our products, your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same.

  • Page 15: Part 4: Operation

    PART 4: OPERATION Starting up and temperature regulation • Insert the plug of the connection lead into the plug socket with protective earth contact. When the refrigerator compartment door is opened, the internal lighting is switched on. • The temperature selector knob is located on the top of the refrigerator compartment. Setting 0 means: Off . Clockwise rotate the knob to turn on the appliance. Setting 1 means: Highest temperature, warmest setting.
  • Page 16 Remove and install the door shelf WARNING! The door shelf must not removed and installed by the user! If the door shelf is damaged, contact the authorized service for assistance. To replace the door shelf, the below steps can be followed: Remove the door shelf Press the right side of the door shelf inwardly, while holding the left side.
  • Page 17 Reversing the door The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires. WARNING! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is re-moved from the mains socket.
  • Page 18 Place the lower door on a smooth surface with its panel upwards. Loose screws 1, and remove part 2, then install part 2 to the left side with screws 1. Change screw hole covers on middle cover plate from left to right (as shown in figure below). Place refrigerator flatwise, remove part 3 and then loose screws 4.
  • Page 19 10. Move the lower door and adjust its position to align lower hole site and upper hinge axis. Turn the middle hinge by 180, adjust the middle hinge to the appropriate position and then install it. 11. Screw out the upper hinge axis, turn the upper hinge over and fix axis on it. Then place it at side for use. 12.

  • Page 20: Part 6: Using Your Appliance

    PART 6: USING YOUR APPLIANCE You appliance has the accessories as the “Description of the appliance” showed in general, with this part instruction you can have the right way to use them. Door shelf • It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the shelf. Shelf in Refrigerator chamber •...

  • Page 21: Part 7: Helpful Hints And Tips

    PART 7: HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods in order to conserve energy. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) • Don’t set the temperature colder than necessary. • Don’t store warm food or evaporating liquid in the appliance. • Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter. • If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration. Hints for fresh food refrigeration •...
  • Page 22 Hints for the storage of frozen food • Ensure that frozen food has been stored correctly by the food retailer • Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer. Switching off your appliance If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

  • Page 23: Part 8: Cleaning And Care

    PART 8: CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months. CAUTION! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

  • Page 24: Defrosting

    Defrosting Why defrosting Water contained in food or getting into air inside the fridge be opening doors may form a frost layer inside. It will weaken the refrigeration when the frost is thick. While it is more than 10mm thick, you should defrost. Defrosting in fresh food storage compartment It is automatically controlled by switching the temperature regulator on or off so that there is no need of operation of defrosting.

  • Page 25: Part 9: Troubleshooting

    PART 9: TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. WARNING! Don’t try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualifi ed electrician, authorized service engineer or the shop where you purchased the product.
  • Page 26 Problem Possible cause & Solution Check whether the top of the refrigerator is tilted back by 10-15 mm to allow Doors cant be closed the doors to self close, or if something inside is preventing the doors from easily closing. The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout (located underneath the top of the Water drips on the floor compressor depot) may not be properly positioned to direct water into this...

  • Page 27: Part 10: Information Sheet

    PART 10: INFORMATION SHEET INFORMATION SHEET: Philco Philco brand: Brand Philco Product number PC 1652 Type of appliance Energy efficiency class (A… low electricity consumption to G… high electricity consumption) Energy consumption over a 365 day period (kWh) Total available volume (l)

  • Page 28: Part 11: Disposal Of The Appliance

    PART 11: DISPOSAL OF THE APPLIANCE It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance Pull out the mains plug from the mains socket.
  • Page 29 To avoid contamination of food, please respect the following instructions. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. One-, two- and three-star compartments are not suitable for the freezing of fresh food. Target Compartments Order storage Appropriate food TYPE temp. [°C] Eggs, cooked food, packaged food, fruits and vegetables, Fridge +2≤+8 dairy products, cakes, Drinks and other foods which are...
  • Page 30 Fresh pork, beef, fish, chicken, cooked food, etc. Fresh Food 0≤+4 (Recommended to eat within the same day, preferably no more than 3 days) Wine +5≤+20 red wine,white wine,sparkling wine etc. Note: please store different foods according to the compartments or target storage temperature of your purchased products.
  • Page 31 Energy Saving Tips • The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight. • Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil. • Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. • Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient. • Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
  • Page 32 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 33 Manufacturer/Importer: Fast ČR, a.s. Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC is a registered trademark used under license from SK - 31 Electrolux Home Products., Inc. Copyright © 2019, Fast ČR, a. s. Revision 04/2019...
