Quick Links

ELECTRONIC NO FROST
COMBI REFRIGERATOR

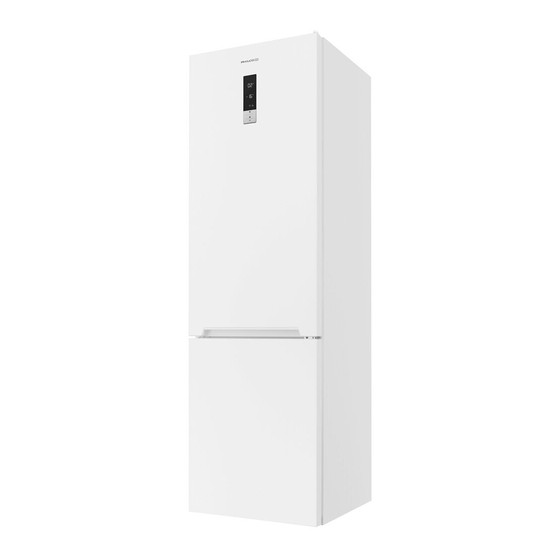

Freezer-Fridge
USER MANUAL
PCD 3602 ENF,
PCD 3602 ENFDX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCD 3602 ENF and is the answer not in the manual?

Questions and answers

Summary of Contents for Philco PCD 3602 ENF

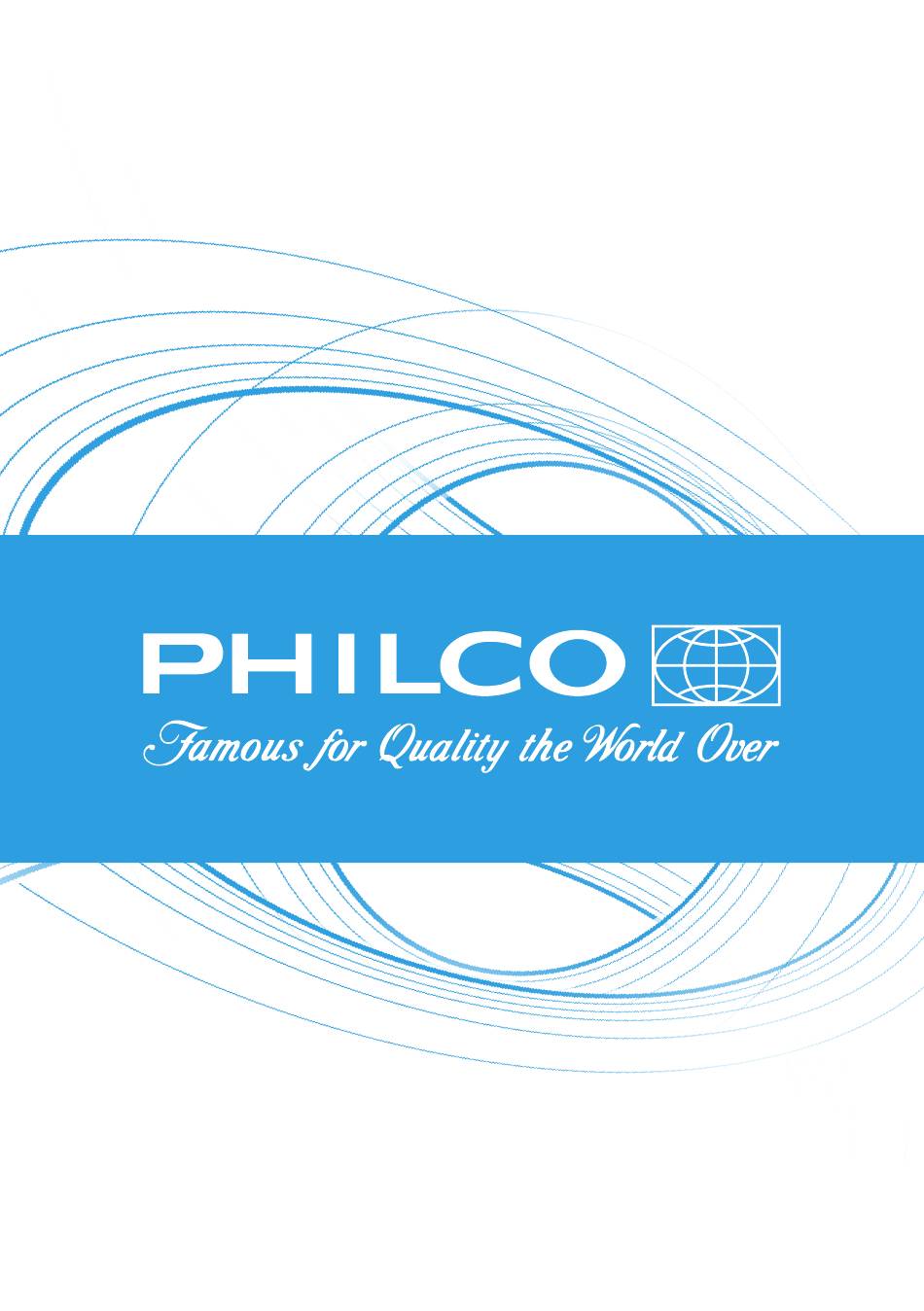

  • Page 1 ELECTRONIC NO FROST COMBI REFRIGERATOR Freezer-Fridge USER MANUAL PCD 3602 ENF, PCD 3602 ENFDX...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user‘s manual. Copyright © 2020, Fast ČR, a. s. Revision 10/2020...
  • Page 3: Table Of Contents

    CONTENTS PART 1: SAFETY INFORMATION........................3 PART 2: THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ............12 PART 3: USING THE APPLIANCE ........................14 Information about New Generation Cooling Technology ....................14 Display and Control Panel ................................15 Use of control panel ..................................15 Operating Your Fridge Freezer..............................16 Temperature Settings ..................................19 Recommended Settings for the Freezer and Cooler Compartment Temperature ...........21 Temperature Adjustment Warnings ............................21...
  • Page 4 Dear customer: Thank you for buying this refrigerator. To ensure that you get the best results from your new refrigerator, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements.
  • Page 5: Part 1: Safety Information

    PART 1: SAFETY INFORMATION FOR YOUR SAFETY AND CORRECT USAGE, BEFORE INSTALLING AND FIRST USING THE APPLIANCE,READ THIS USER MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO AVOID UNNECESSARY MISTAKES AND ACCIDENTS,IT IS IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES.
  • Page 6 ● IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE THE APPLIANCE WHEN THE SUPPLY CABLE IS DAMAGED. ● CAUTION: IF YOUR MODEL IS EQUIPPED WITH AN ICE MAKER WITHOUT WATER SUPPLY CONNECTION, FILL IT WITH DRINKING WATER ONLY.
  • Page 7 THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS: – KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES; APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES; APPLIANCES USED IN BED-AND- BREAKFAST FACILITIES; APPLIANCES USED IN CATERING AND OTHER SIMILAR NON-VENDING ENVIRONMENTS.
  • Page 8 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS CONTAINS COOLING GAS ISOBUTANE R600A REFRIGERANT THE REFRIGERANT ISOBUTENE (R600A) IS CONTAINED WITHIN THE REFRIGERANT CIRCUIT OF THE APPLIANCE,A NATURAL GAS WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY,WHICH IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION AND INSTALLATION OF THE APPLIANCE,ENSURE THAT NONE OF THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES DAMAGED.
  • Page 9 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS IF THE REFRIGERANT CIRCUIT SHOULD BE DAMAGED: - AVOID OPENING FLAMES AND SOURCES OF IGNITION. - THOROUGHLY VENTILATE THE ROOM IN WHICH THE APPLIANCE IS SITUATED. IT IS DANGEROUS TO ALTER THE SPECIFICATIONS OR MODIFY THIS PRODUCT IN ANY WAY.
  • Page 10 5. IF THE POWER PLUG SOCKET IS LOOSE, DO NOT INSERT THE POWER PLUG. THERE IS A RISK OF ELECTRIC SHOCK OR FIRE. 6. YOU MUST NOT OPERATE THE APPLIANCE WITHOUT THE INTERIOR LIGHTING LAMP COVER. 7. THE FRIDGE IS ONLY APPLIED WITH POWER SUPPLY OF SINGLE PHASE ALTERNATING CURRENT OF 220~240V/50HZ.
  • Page 11 ● DO NOT PLACE CARBONATED OR FIZZY DRINKS IN THE FREEZER COMPARTMENT AS IT CREATES PRESSURE ON THE CONTAINER,WHICH MAY CAUSE IT TO EXPLODE,RESULTING IN DAMAGE TO THE APPLIANCE. ● FROZEN FOOD CAN CAUSE FROST BURNS IF CONSUMED STRAIGHT FROM THE FREEZER COMPARTMENT. ●...
  • Page 12 INSTALLATION IMPORTANT! ● FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE INSTRUCTIONS GIVEN IN THIS MANUAL. UNPACK THE APPLIANCE AND CHECK IF THERE ARE DAMAGES ON IT. ● DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT IT.
  • Page 13 • THE INTERIOR OF YOUR REFRIGERATOR / FREEZER MAY SMELL BEFORE FIRST USE. THIS IS NORMAL. THE ODOR DISAPPEARS AS SOON AS THE APPLIANCE STARTS TO COOL / FREEZE. • BEFORE CONNECTING THE REFRIGERATOR I FREEZER, MAKE SURE THAT THE MAINS VOLTAGE CORRESPONDS TO THE REQUIREMENTS FOR CONNECTING THE REFRIGERATOR / FREEZER. IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. •...
  • Page 14: Part 2: The Parts Of The Appliance And The Compartments

    PART 2: THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. EN - 12 Copyright © 2020, Fast ČR, a. s. Revision 10/2020...
  • Page 15 A. Fridge compartment B. Freezer compartment Wine rack* Fridge shelves lonisier* Chiller* Crisper cover Crisper Freezer top baskets Freezer middle basket Freezer bottom basket 10. Leveling feet 11. Ice trays 12. Freezer glass shelves 13. Bottle shelf 14. Adjustable door shelf * / Door shelf 15.
  • Page 16: Part 3: Using The Appliance

    PART 3: USING THE APPLIANCE Information about New Generation Cooling Technology Fridges with new-generation cooling technology have a different operating system to static fridges. Other (static) fridges may experience a build up of ice in the freezer compartment due to door openings and humidity in the food. In such fridges, regular defrosting is required;...
  • Page 17: Display And Control Panel

    Display and Control Panel Use of control panel It is cooler set value screen. It is super cooling indicator. It is freezer set value screen. It is super freeze indicator. It is alarm symbol. It is economy mode symbol. It is holiday mode symbol. It is child-lock symbol. It enables the setting value of cooler to be modified and super cool mode to be activated if desired.
  • Page 18: Operating Your Fridge Freezer

    Operating Your Fridge Freezer Lighting (If available) When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests. Super Freeze Mode Purpose • To freeze a large quantity of food that cannot fit on the fast freeze shelf. • To freeze prepared foods. • To freeze fresh food quickly to retain freshness. How Would It Be Used? Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer will sound beep beep.
  • Page 19 Economy Mode Purpose Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power. How Would It Be Used? • Push "MODE" button until eco symbol appears. • If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3 times. When mode is set, buzzer will sound beep beep. •...
  • Page 20 Drink Cool Mode Purpose This mode is used to cool drinks within an adjustable time frame. How Would It Be Used? • Press freezer button for 3 seconds. • Special animation will start on freezer set value screen and 05 will blink on cooler set value screen. • Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes). • When you select the time the numbers will blink 3 times on screen and sound beep beep. • If no button is pressed within 2 seconds the time will be set. • The countdown starts from the adjusted time minute by minute. • Remaining time will blink on the screen. • To cancel this mode press freezer set button for 3 seconds. Screen Saver Mode Purpose This mode saves energy by switching off all control panel lighting when the panel is left inactive.
  • Page 21: Temperature Settings

    The Child Lock Function Purpose Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings. Activating Child Lock Press on freezer and cooler buttons simultaneously for 5 seconds. Deactivating Child Lock Press on freezer and cooler buttons simultaneously for 5 seconds. Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.
  • Page 22 Cooler Temperature Settings • Initial temperature value for the cooler setting indicator is +4 °C. • Press the cooler button once. • When you first push this button, the last value will appear on the cooler setting indicator. • Whenever you press this button, a lower temperature will be set. (+8 °C, +6 °C, +5 °C, +4 °C, +2 °C, super cool) • When you push the cooler set button until the super cool symbol appears, and if you do not push any button within 1 second, super cool will flash. • If you continue to press the button, it will restart from +8 °C. • The temperature value selected before holiday mode, super freeze mode, super cool mode or economy mode is activated and will remain the same when the mode is over or cancelled.
  • Page 23: Recommended Settings For The Freezer And Cooler Compartment Temperature

    Recommended Settings for the Freezer and Cooler Compartment Temperature Freezer Cooler Remarks Compartment Compartment -18 °C 4 °C For regular use and best performance. Recommended when environmental temperature -20 °C, -22 °C or -24 °C 4 °C exceeds 30 °C. Must be used when you wish to freeze food in a short Super Freeze mode 4 °C period of time.
  • Page 24: Accessories

    Important installation instructions This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt.
  • Page 25 The Chiller Shelf (In some models) Chiller shelf Keeping food in the Chiller compartment, instead of the freezer or refrigerator compartments, allows food to retain freshness and flavour for longer, while preserving its fresh appearance. When the Chiller tray becomes dirty, remove it and wash with water. (Water freezes at 0°C, but food containing salt or sugar freezes at temperatures lower than this).
  • Page 26 Adjustable Door Shelf (In some models) Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.
  • Page 27 Natural Ion Tech (In some models) Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air. By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours. Ioniser • This feature is optional. It may not exist on your product. •...
  • Page 28: Part 4: Cleaning And Maintenance

    PART 4: CLEANING AND MAINTENANCE Disconnect the unit from the power supply before cleaning. • • Do not clean the appliance by pouring water. • Make sure that no water enters the lamp housing and other electrical components. • The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water. • Clean the accessories separately with soap and water Do not clean them in the dishwasher. • Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands. EN - 26 Copyright © 2020, Fast ČR, a. s. Revision 10/2020...
  • Page 29: Defrosting

    • Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity. THE POWER SUPPLY MUST BE DISCONNECTED. Defrosting Your refrigerator performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your refrigerator and evaporates there.
  • Page 30: Part 5: Arranging Food In The Appliance

    PART 5: ARRANGING FOOD IN THE APPLIANCE Refrigerator compartment • For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4°C will be enough. • To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting. • Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment. •...
  • Page 31: Freezer Compartment

    Freezer compartment • Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice. • To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. For bottom section, please use lower basket. • Please do not place the food you shall newly freeze nearby the already frozen food. • You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing them into portions in such a way that they can be consumed once. • Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning. • Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.
  • Page 32 Meat and fish Preparation Maximum Storing time (month) Steak Wrapping in a foil Lamb meat Wrapping in a foil Veal roast Wrapping in a foil Veal cubes In small pieces Lamb cubes In pieces Minced meat In packages without using spices Giblets (pieces) In pieces Should be packaged even if it has Bologna sausage/salami membrane Chicken and turkey...
  • Page 33 Maximum Storing time Vegetables and Fruits Preparation (months) Wash and cut to small pieces and String beans and beans 10-13 boil in water Beans Hull and wash and boil in water Cabbage Cleaned and boil in water Clean and cut to slices and boil Carrot in water Cut the stem, cut into two pieces Pepper and remove the core and boil in...
  • Page 34 Maximum Storing Thawing time in room Thawing time in oven time (months) temperature (hours) (minutes) Bread 4-5 (220-225°C) Biscuits 1-1,5 5-8 (190-200°C) Pastry 5-10 (200-225°C) 1-1,5 5-8 (190-200°C) Phyllo dough 1-1,5 5-8 (190-200°C) Pizza 15-20 (200°C) EN - 32 Copyright © 2020, Fast ČR, a. s. Revision 10/2020...
  • Page 35: Part 6: Transportation And Changing Of Installation Position

    PART 6: TRANSPORTATION AND CHANGING OF INSTALLATION POSITION Transportation and Changing of Installation Position • The original packages and foamed polystyrene (PS) can be retained if required. • During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting. • Before transporting or changing the installation position, all the moving objects (ie, shelves, crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged. Repositioning the door •...
  • Page 36: Part 7: Before Calling Your After Sales Service

    PART 7: BEFORE CALLING YOUR AFTER SALES SERVICE Errors Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators. ERROR MEANING WHAT TO DO...
  • Page 37 Fridge Various 1. Check is Super Cool mode is activated. compartment is 2. Reduce the fridge compartment too cold. temperature. 3. Check to see if vents are clear and not clogged. If this warning continues an authorised technician needs to be contacted. If you are experiencing a problem with your refrigerator, please check the following before contacting the after-sales service.
  • Page 38 There is a build-up of humidity inside the fridge Check if: • All food is packed properly. Containers must be dry before being placed in the fridge. • The fridge doors are opened frequently. Humidity of the room will enter the fridge each time the doors are opened. Humidity increases faster if the doors are opened frequently, especially if the humidity of the room is high. • There is a build-up of water droplets on the rear wall. This is normal after automatic defrosting (in Static Models). The doors are not opening or closing properly Check if: • There is food or packaging preventing the door from closing. • The door compartments, shelves and drawers are placed properly. • The door gaskets are broken or torn. • Your fridge is level. The edges of the fridge in contact with the door joint are warm Especially during summer (warm weather), the surfaces in contact with the door joint may become warmer during operation of the compressor.
  • Page 39: Part 8: Tips For Saving Energy

    PART 8: TIPS FOR SAVING ENERGY Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker., etc). Otherwise use an insulating plate. Allow warm food and drinks to cool down outside the appliance. When thawing frozen food, place it in the refrigerator compartment.
  • Page 40 Storage instructions To avoid contamination of food, please respect the following instructions - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
  • Page 41 Chill -2~+3 Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 °C).
  • Page 42: Part 9: Product Information Sheet

    PART 9: PRODUCT INFORMATION SHEET Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 Supplier's name or trademark: PHILCO Supplier's address: Černokostelecká 2111, 10000 Prague, CZ Model identifier: PCD 3602 ENFDX Type of refrigerating appliance: Low-noise appliance: Design type: freestanding Wine storage appliance: Other refrigerating appliance: General product parameters: Parameter Value...
  • Page 43 For 4-star compartments Fast freeze facility Light source parameters: Type of light source Energy efficiency class Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.philco.cz * A (highest efficiency) to G (lowest efficiency) EN - 41 Copyright © 2020, Fast ČR, a. s. Revision 10/2020...
  • Page 44 Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 Supplier's name or trademark: PHILCO Supplier's address: Černokostelecká 2111, 10000 Prague, CZ Model identifier: PCD 3602 ENF Type of refrigerating appliance: Low-noise appliance: Design type: freestanding Wine storage appliance: Other refrigerating appliance: General product parameters: Parameter Value Parameter Value Height 2010 Overal dimensions Width Total volume (dm³...
  • Page 45 For 4-star compartments Fast freeze facility Light source parameters: Type of light source Energy efficiency class Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.philco.cz * A (highest efficiency) to G (lowest efficiency) EN - 43 Copyright © 2020, Fast ČR, a. s. Revision 10/2020...
  • Page 46 When contacting our authorized service, have the model designation, serial number and defect description available. To download documents, visit www.philco.cz. To report a defect and obtain additional service information, visit https://philco.cz/podpora-a-servis. Subject to change without notice. EN - 44 Copyright © 2020, Fast ČR, a. s.
  • Page 47 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 48 Výrobce/Manufacturer: FAST ČR, a.s. U Sanitasu 1621 Říčany 251 01, Czech Republic Distributor: FAST PLUS, a.s., Vlčie hrdlo 324/90 821 07 Bratislava, SLOVAKIA is a registered trademark used under license from SK - 46 Electrolux Home Products., Inc. Copyright © 2020, Fast ČR, a. s. Revízia 10/2020...
