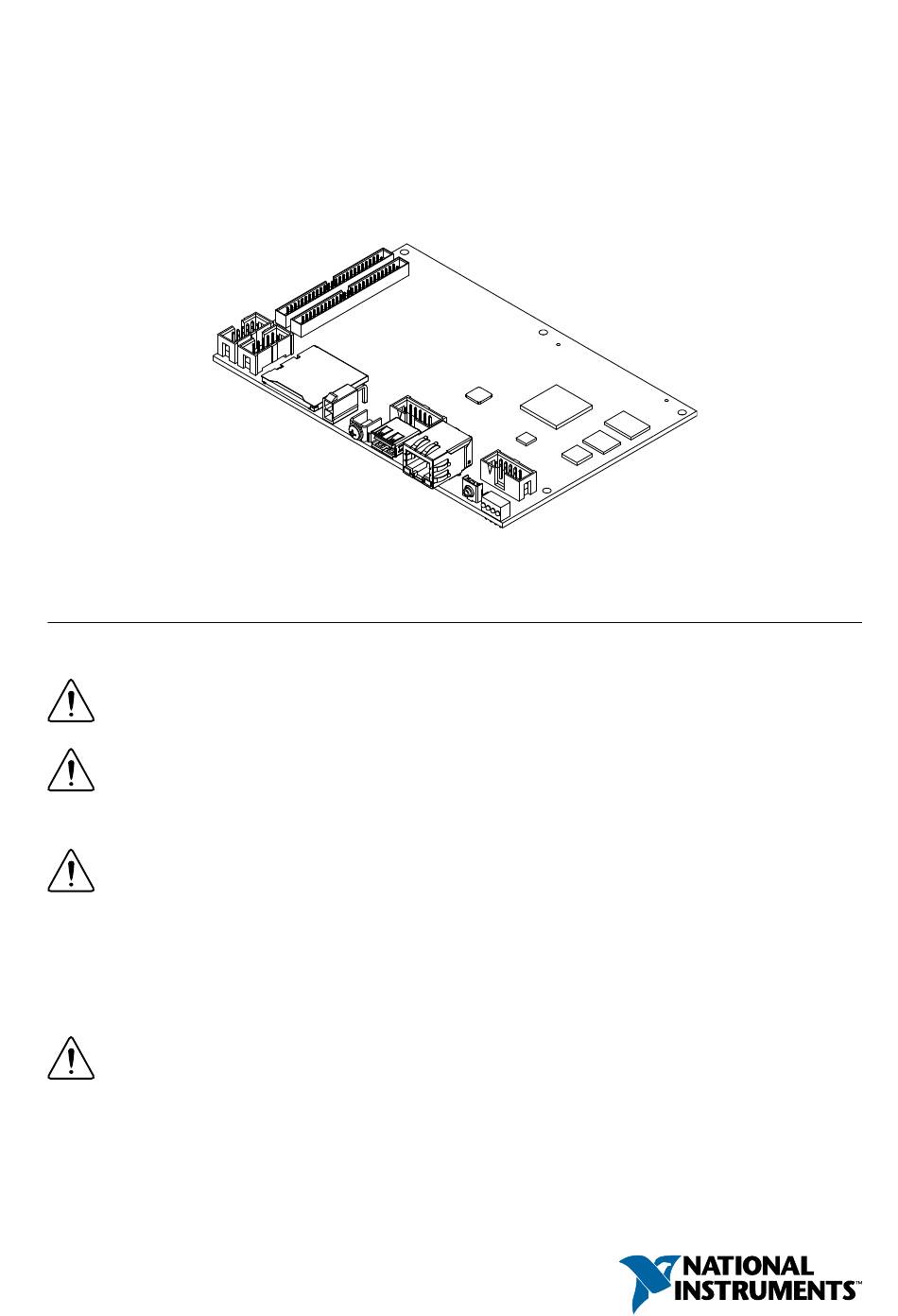

GETTING STARTED GUIDE

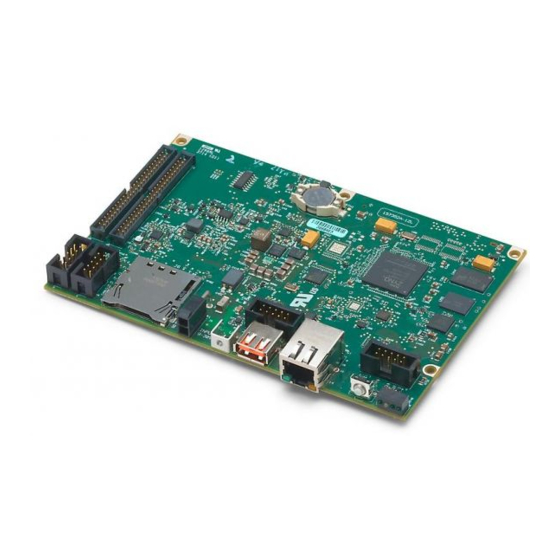

NI sbRIO-9637
Single-Board RIO OEM Devices
This document describes how to begin using the NI sbRIO-9637.
Safety Guidelines
Operate the sbRIO-9637 only as described in the user documentation.
Caution
Caution
marking compliance claims for the sbRIO-9637. The end-product supplier is
responsible for conformity to any and all compliance requirements.
Caution
Auxiliary cooling may be necessary to keep the sbRIO-9637 within the specified
operating temperature range. Refer to the NI sbRIO-9637 Specifications on
manuals
for more information about the maximum operating temperature rating. For
information and examples regarding factors that can affect thermal performance,
visit
ni.com/info
Caution
document. Product misuse can result in a hazard. You can compromise the safety
protection built into the product if the product is damaged in any way. If the product
is damaged, return it to NI for repair.
The sbRIO-9637 must be installed in a suitable enclosure prior to use.
NI makes no product safety, electromagnetic compatibility (EMC), or CE
Exercise caution when designing an enclosure for the sbRIO-9637.
and enter the Info Code
Do not operate the sbRIO-9637 in a manner not specified in this
.
sbriocooling
ni.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sbRIO-9637 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for National Instruments sbRIO-9637

  • Page 1 Safety Guidelines Operate the sbRIO-9637 only as described in the user documentation. Caution The sbRIO-9637 must be installed in a suitable enclosure prior to use. Caution NI makes no product safety, electromagnetic compatibility (EMC), or CE marking compliance claims for the sbRIO-9637. The end-product supplier is responsible for conformity to any and all compliance requirements.
  • Page 2: Safety Voltages

    Do not connect the sbRIO-9637 to signals or use for measurements within Measurement Categories II, III, or IV. Preparing the Environment Ensure that the environment in which you are using the sbRIO-9637 meets the following specifications. Local ambient operating temperature near -40 °C to 85 °C...
  • Page 3: Unpacking The Kit

    Unpack any other items and documentation from the kit. Store the device in the antistatic package when the device is not in use. Verifying the Kit Contents Verify that the following items are included in the sbRIO-9637 kit. Figure 1. sbRIO-9637 Kit Contents 1. sbRIO Device 5.
  • Page 4: Installing Software On The Host Computer

    Installing Software on the Host Computer Before using the sbRIO-9637, you must install the following application software and device drivers on the host computer. LabVIEW 2015 or later LabVIEW Real-Time Module 2015 or later LabVIEW FPGA Module 2015 or later...
  • Page 5: Connecting The Sbrio-9637 To Power

    STATUS LED Indicators section. Connecting the sbRIO-9637 to the Host Computer Complete the following steps to connect the sbRIO-9637 to the host computer using the RJ-45 Ethernet port. Power on the host computer. Connect the sbRIO-9637 to the host computer using a standard Category 5 (CAT-5) or better shielded, twisted-pair Ethernet cable.
  • Page 6: Setting A System Password

    The default username for the sbRIO-9637 is . There is no default admin password for the sbRIO-9637, so you must leave the password field blank when logging in until you set a system password. Right-click your system and select Web Configuration.
  • Page 7: Installing Software On The Sbrio-9637

    Click Next. Select NI Scan Engine from the software add-ons. Select any additional software to install. If you plan on using the sbRIO-9637 with the LabVIEW FPGA Module, you can click Next. You can use this wizard at anytime to install additional software.
  • Page 8: System Reset

    In MAX, expand your system under Remote Systems and select Troubleshoot Remote System Discovery. System Reset The following figure shows the reset behavior of the sbRIO-9637. Figure 3. Reset Button Behavior Press and hold RESET button for < 5 s Press and hold RESET button for ≥...
  • Page 9 Table 1. STATUS LED Indicators LED Pattern Indication Blinks twice and The sbRIO-9637 is in safe mode. Software is not installed, which is the pauses factory default state, or software has been improperly installed on the sbRIO-9637. An error can occur when an attempt to upgrade the software is interrupted.
  • Page 10: Where To Go Next

    Worldwide Support and Services The National Instruments website is your complete resource for technical support. At ni.com/ support, you have access to everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
  • Page 11 1 866 ASK MYNI (275 6964). For telephone support outside the United States, visit the Worldwide Offices section of ni.com/niglobal to access the branch office websites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI sbRIO-9637 Getting Started Guide | © National Instruments | 11...
  • Page 12 Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at .
