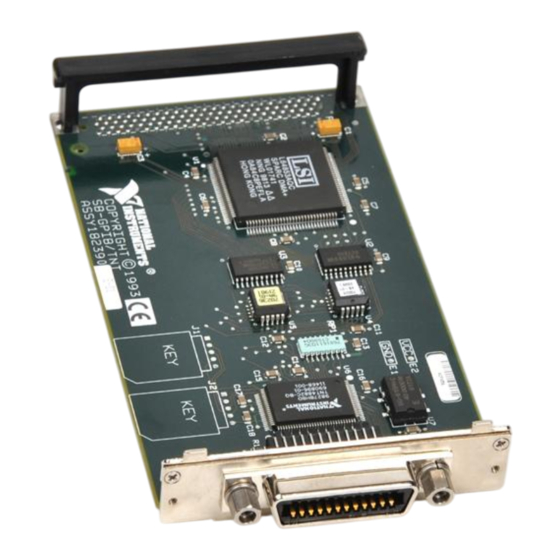

- Page 1 GPIB Getting Started with Your SB-GPIB/TNT and ™ NI-488.2 for Solaris SB-GPIB/TNT for Solaris June 2001 Edition Part Number 320529B-01...
- Page 2 Sweden 08 587 895 00, Switzerland 056 200 51 51, Taiwan 02 2528 7227, United Kingdom 01635 523545 For further support information, see the Technical Support Resources appendix. To comment on the documentation, send e-mail to techpubs@ni.com. Copyright © 1993, 2001 National Instruments Corporation. All rights reserved.
- Page 3 The reader should consult National Instruments if errors are suspected. In no event shall National Instruments be liable for any damages arising out of or related to this document or the information contained in it.
- Page 4 Classification requirements are the same for the Federal Communications Commission (FCC) and the Canadian Department of Communications (DOC). Changes or modifications not expressly approved by National Instruments could void the user’s authority to operate the equipment under the FCC Rules.
- Page 5 Canadian Department of Communications This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Compliance to EU Directives Readers in the European Union (EU) must refer to the Manufacturer's Declaration of Conformity (DoC) for information** pertaining to the CE Mark compliance scheme.
- Page 6 Conventions The following conventions are used in this manual: This icon denotes a caution, which advises you of precautions to take to avoid injury, data loss, or a system crash. italic Italic text denotes variables, emphasis, a cross reference, or an introduction to a key concept.
-
Page 7: Table Of Contents
Removing NI-488.2 (Optional)..................2-4 Chapter 3 Installation Verification Chapter 4 Using NI-488.2 with Solaris Introduction to ibic......................4-1 Programming Considerations ..................4-2 Appendix A Common Questions Appendix B Specifications Appendix C Technical Support Resources Glossary Index © National Instruments Corporation SB-GPIB/TNT for Solaris... -
Page 8: What You Need To Get Started
Introduction This chapter explains how to use this manual, lists what you need to get started, and briefly describes the SB-GPIB/TNT and NI-488.2 for Solaris. What You Need to Get Started ❑ Solaris version 2.5.1 or higher installed on your Sun SPARC system. -
Page 9: Ni-488.2 Overview
Chapter 1 Introduction The SB-GPIB board also is compatible with all revisions of the IEEE 488 standard, including the IEEE 488.2 standard. The NAT4882 chip performs the basic IEEE 488 Talker, Listener, and Controller functions. The Turbo488 chip enhances the performance of the SB-GPIB board. With the Turbo488 chip and the SBus DVMA transfers, data rates for both read and write operations can exceed 1 Mbytes/s. -
Page 10: Installation
Installation This chapter describes how to install NI-488.2 for Solaris and the SB-GPIB/TNT or SB-GPIB into your Sun SPARC system. The NI-488.2 software included in this kit is intended for use with Sun SPARC systems running Solaris 2.5.1 or higher. - Page 11 10. Turn on your computer. The GPIB interface board is now installed. 1 Slot 1 3 Back Panel Rail 2 Slot 2 4 Backplate Adapter Figure 2-1. Installing the SB-GPIB/TNT or SB-GPIB SB-GPIB/TNT for Solaris ni.com...
-
Page 12: Installing Ni-488.2
Log on as super-user ( root Type the following command to start ibconf ibconf After you have installed and configured the software, you should verify the installation. Refer to Chapter 3, Installation Verification. © National Instruments Corporation SB-GPIB/TNT for Solaris... -
Page 13: Removing Ni-488.2 (Optional)
If you ever decide to stop using your GPIB board, you can remove NI-488.2 from your system. To remove NI-488.2 from the kernel configuration, you must have super-user privilege and the driver must not be in use. Enter the following command to unload the software: pkgrm NICsbgpib SB-GPIB/TNT for Solaris ni.com... -
Page 14: Installation Verification
If you are unable to run successfully after you have followed the on-screen instructions, ibtsta refer to Appendix A, Common Questions. © National Instruments Corporation SB-GPIB/TNT for Solaris... -
Page 15: Using Ni-488.2 With Solaris
• Troubleshoot problems with your application Enter the following command to run ibic ibic For more information about , refer to Chapter 6, ibic, in the ibic NI-488.2M Software Reference Manual. © National Instruments Corporation SB-GPIB/TNT for Solaris... -
Page 16: Programming Considerations
For information about each NI-488 function and IEEE 488.2-style function, choosing a programming method, developing your application, or compiling and linking, refer to the NI-488.2M Software Reference Manual. SB-GPIB/TNT for Solaris ni.com... -
Page 17: Appendix A Common Questions
Common Questions This appendix answers some common questions you may have about NI-488.2 for Solaris and the SB-GPIB/TNT. Also refer to Appendix B, Common Errors and Their Solutions, in the NI-488.2M Software Reference Manual. How do I know that my GPIB board is installed correctly? - Page 18 Appendix A Common Questions Can I use NI-488.2 for Solaris with the SB-GPIB (non-TNT) board? Yes. The board and software are compatible, but you will not be able to use TNT4882C features such as HS488 (high-speed) mode. Why can’t I use DVMA with my GPIB board? Do not insert the GPIB board into a slave-only physical slot if you want to use DVMA.
- Page 19 Chapter 5, NI-488M Software Characteristics and Functions, in the NI-488.2M Software Reference Manual, for more information. What information should I have before I call National Instruments? Please have the results of the diagnostic test . You also should have ibtsta to try to find the source of your problem.
-
Page 20: Appendix B Specifications
Specifications This appendix lists the electrical, environmental, and physical specifications of the SB-GPIB/TNT and SB-GPIB boards and the recommended operating conditions. Electrical Characteristics Input power requirements SB-GPIB/TNT ........ +5 VDC, 300 mA typical 350 mA maximum SB-GPIB ......... +5 VDC, 500 mA typical... - Page 21 GPIB writes ......1.4 Mbytes/s SB-GPIB GPIB reads .......970 kbytes/s GPIB writes ......1 Mbytes/s HS488 SB-GPIB/TNT GPIB reads .......3.2 Mbytes/s GPIB writes ......3.2 Mbytes/s Actual speed may vary considerably from speed shown due to system and instrumentation capabilities. SB-GPIB/TNT for Solaris ni.com...
- Page 22 Technical Support Resources Web Support National Instruments Web support is your first stop for help in solving installation, configuration, and application problems and questions. Online problem-solving and diagnostic resources include frequently asked questions, knowledge bases, product-specific troubleshooting wizards, manuals, drivers, software updates, and more. Web support is available through the Technical Support section of ni.com...
- Page 23 Appendix C Technical Support Resources Worldwide Support National Instruments has offices located around the world to help address your support needs. You can access our branch office Web sites from the Worldwide Offices section of . Branch office Web sites provide ni.com...
- Page 24 GPIB General Purpose Interface Bus HS488 high-speed data transfer protocol for IEEE 488 hertz IEEE Institute of Electrical and Electronic Engineers inches pounds light-emitting diode meters megabytes of memory © National Instruments Corporation SB-GPIB/TNT for Solaris...
- Page 25 Glossary random-access memory seconds SCSI Small Computer System Interface (bus) volts volts alternating current volts direct current SB-GPIB/TNT for Solaris ni.com...
- Page 26 A-2 expansion chassis using to load GPIB board, A-1 kit contents, 1-1 getting started, 1-1 National Instruments Web support, C-1 GPIB cables NI Developer Zone, C-1 disconnecting before running ibtsta, A-1 NI-488.2 single shielded or double shielded, 1-1...
- Page 27 A-1 verifying software installation, 3-1 SB-GPIB voltage rating, B-1 installing (figure), 2-2 overview, 1-2 unavailable features versus SB-GPIB/TNT, A-2 Web support from National Instruments, C-1 SB-GPIB/TNT worldwide technical support, C-2 installing (figure), 2-2 overview, 1-1 software installing, 2-3 overview, 1-2...
