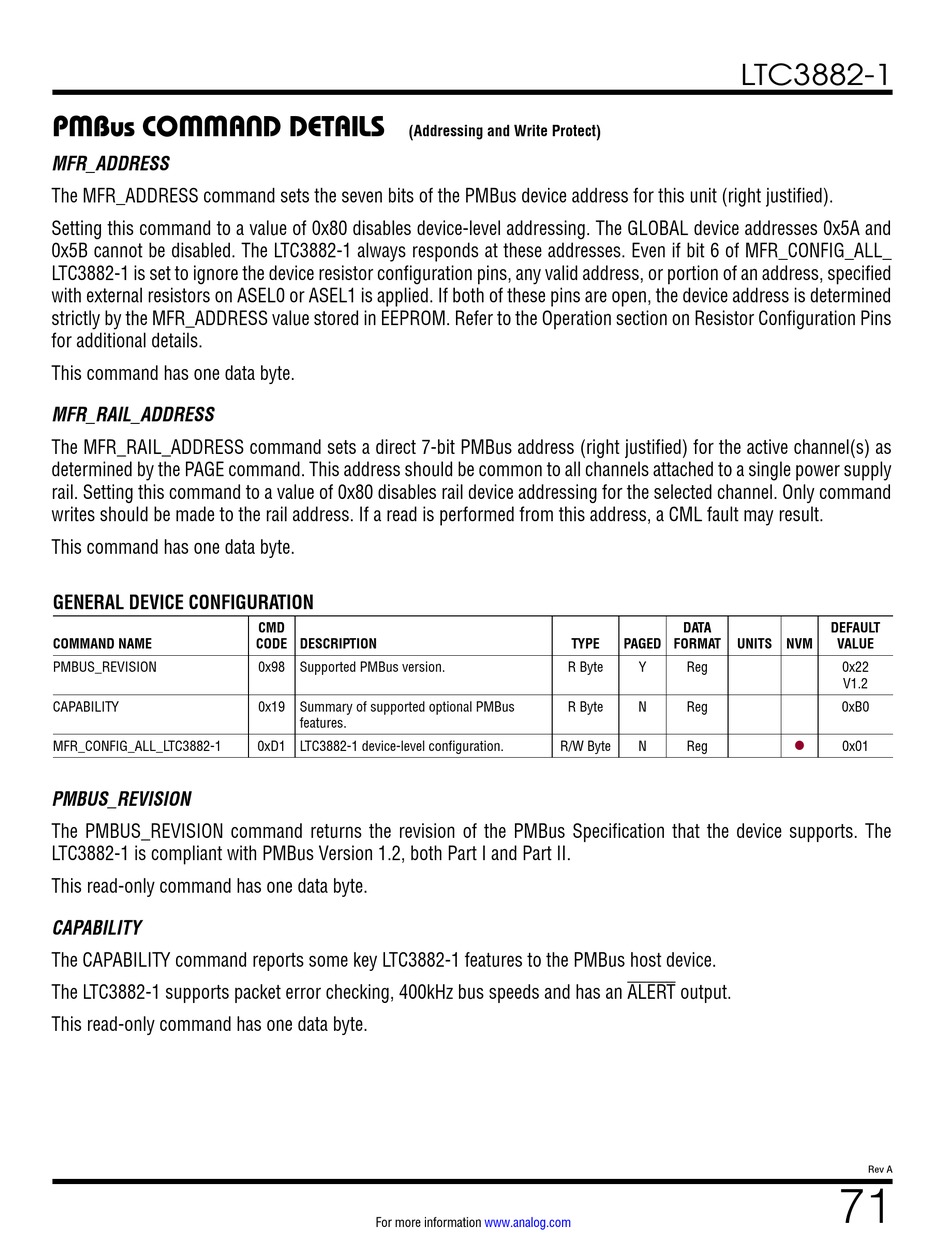

PMBus COMMAND DETAILS

MFR_ADDRESS

The MFR_ADDRESS command sets the seven bits of the PMBus device address for this unit (right justified).
Setting this command to a value of 0x80 disables device-level addressing. The GLOBAL device addresses 0x5A and
0x5B cannot be disabled. The LTC3882-1 always responds at these addresses. Even if bit 6 of MFR_CONFIG_ALL_
LTC3882-1 is set to ignore the device resistor configuration pins, any valid address, or portion of an address, specified
with external resistors on ASEL0 or ASEL1 is applied. If both of these pins are open, the device address is determined
strictly by the MFR_ADDRESS value stored in EEPROM. Refer to the Operation section on Resistor Configuration Pins
for additional details.
This command has one data byte.

MFR_RAIL_ADDRESS

The MFR_RAIL_ADDRESS command sets a direct 7-bit PMBus address (right justified) for the active channel(s) as
determined by the PAGE command. This address should be common to all channels attached to a single power supply
rail. Setting this command to a value of 0x80 disables rail device addressing for the selected channel. Only command
writes should be made to the rail address. If a read is performed from this address, a CML fault may result.
This command has one data byte.

GENERAL DEVICE CONFIGURATION

COMMAND NAME

PMBUS_REVISION

CAPABILITY

MFR_CONFIG_ALL_LTC3882-1
PMBUS_REVISION
The PMBUS_REVISION command returns the revision of the PMBus Specification that the device supports. The
LTC3882-1 is compliant with PMBus Version 1.2, both Part I and Part II.
This read-only command has one data byte.
CAPABILITY
The CAPABILITY command reports some key LTC3882-1 features to the PMBus host device.
The LTC3882-1 supports packet error checking, 400kHz bus speeds and has an ALERT output.
This read-only command has one data byte.
(Addressing and Write Protect)
CMD
CODE DESCRIPTION
0x98 Supported PMBus version.
0x19 Summary of supported optional PMBus
features.
0xD1 LTC3882-1 device-level configuration.
For more information
TYPE PAGED
R Byte Y
R Byte N
R/W Byte N
www.analog.com
LTC3882-1
DATA DEFAULT
FORMAT UNITS NVM VALUE
Reg 0x22
V1.2
Reg 0xB0
Reg 0x01
l
71
Rev A
