PCB Layout

4 PCB Layout

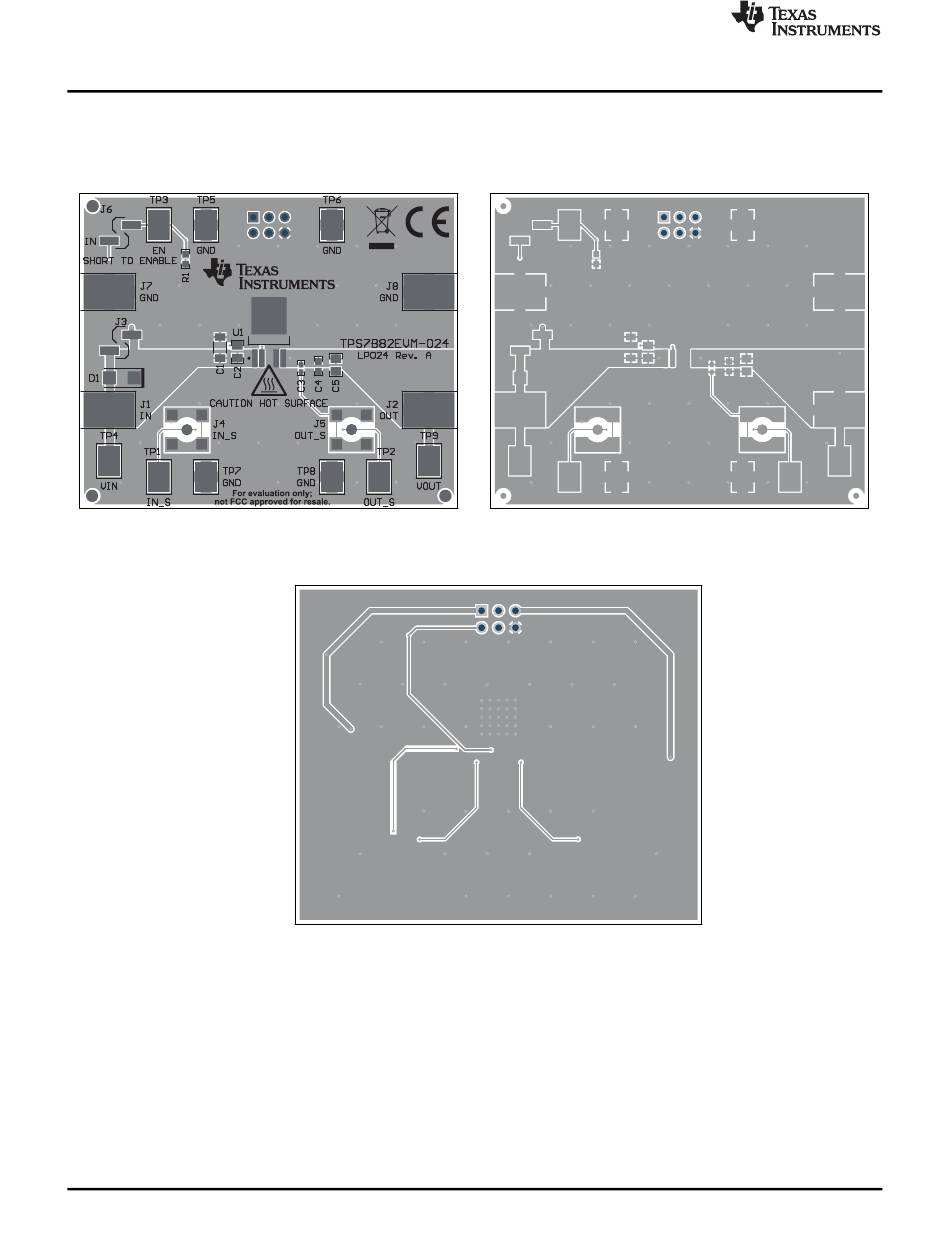

Figure 2 to Figure 4
Figure 2. Assembly Layer
6
TPS7B82EVM-024 Evaluation module
show the PCB layout for this EVM.
Figure 4. Bottom Layer Routing
Copyright © 2019, Texas Instruments Incorporated
Figure 3. Top Layer Routing
