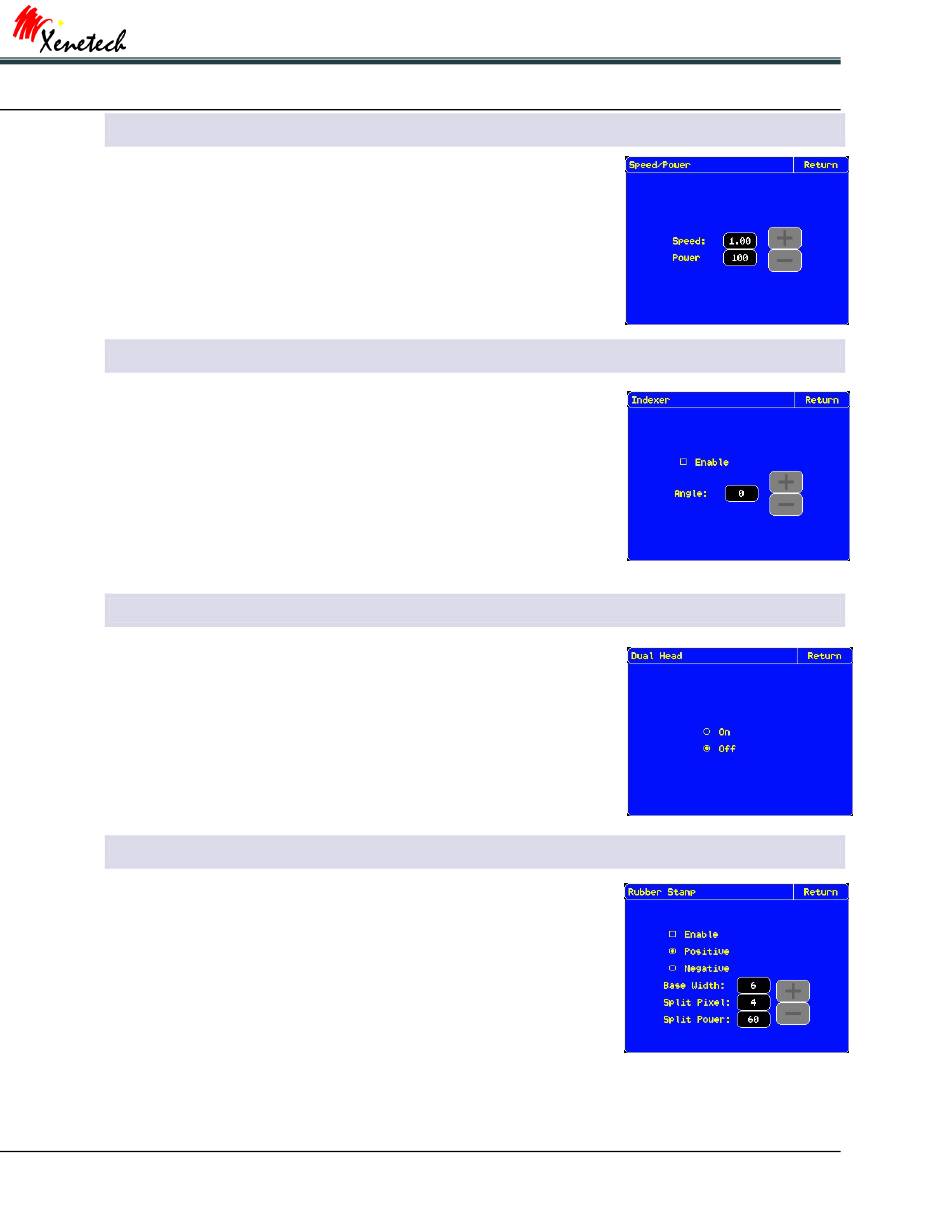

SPEED/POWER

There are several places where the speed and/or power can be adjusted. This
is one of them. This option is primarily for the use of PLT files that are being
dropped into the inbox directly. When doing so, come here first and set the
power and/or speed.

INDEXER

Indexing is used in conjunction with a cylindrical attachment. For example, to
engrave a box with 4 sides, you would enable the indexer. Next, you would set
the angle to 90. This is because at every 90 degrees the next face of the box
would be facing upward. Now when the laser is engraving and finishes one
side, it will go home, the cylindrical will turn 90 degrees and then the lens
carriage will move back out and laser the next side. This will repeat for each of
the four sides.

DUAL HEAD

If your Xenetech Laser is a dual head system, then this will turn the option on
and off. Remember that when turning the option off, you will need to remove
the additional head and bracket from the system.

RUBBER STAMP

Suggested settings for rubber stamps on gray laserable rubber are listed
below:
•
Split Pixel = 2
•
Split Power = 60%
•
Base Width = 6
Adjust the Split Pixel, Base Width, and Split Power to change the shape of the
stamp shoulder. Increasing the Split Power while decreasing the Split Pixel will
yield a steep shoulder. Decreasing the Split Power while increasing the base
width will yield a wide shoulder.
