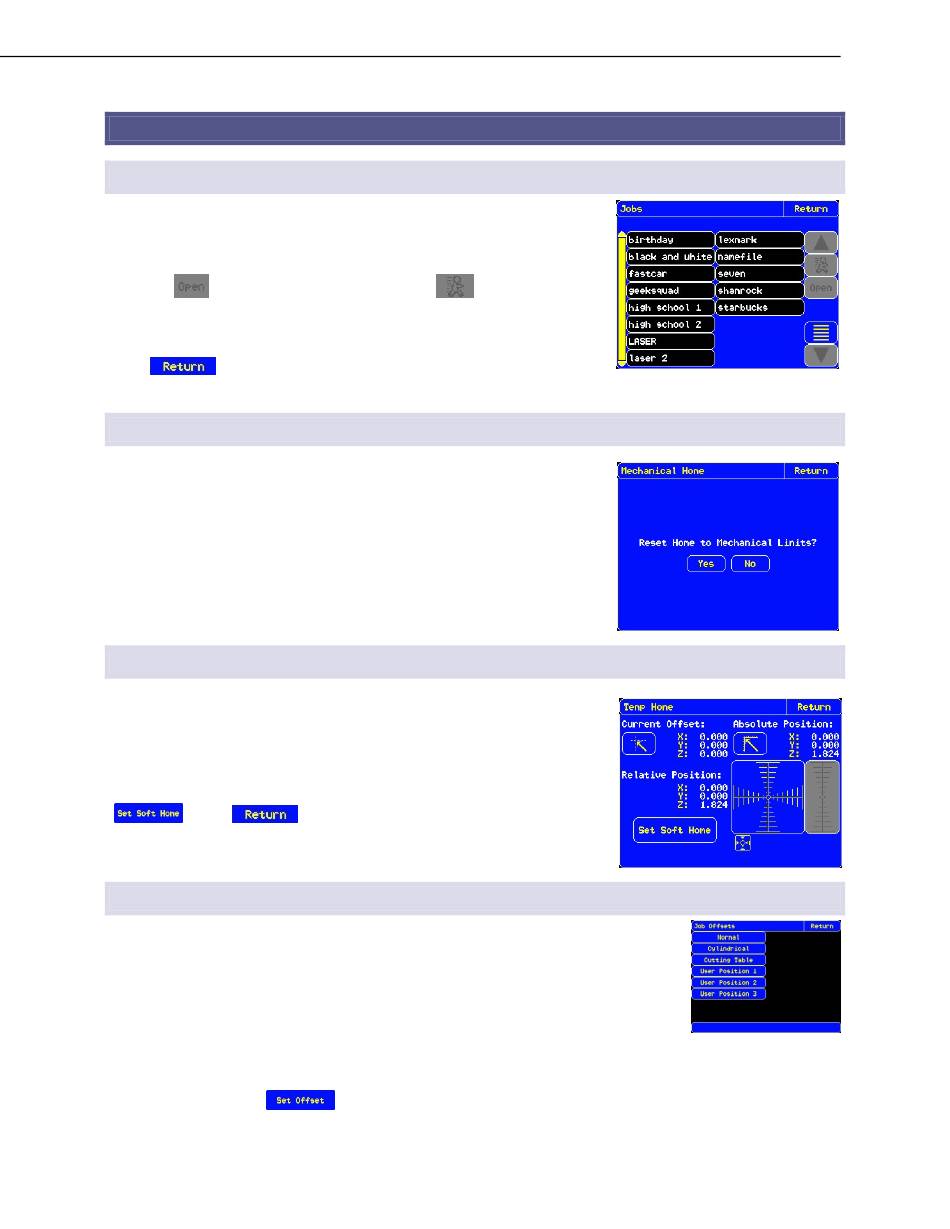

THE MAIN MENU

JOBS

When your Xenetech Laser is connected to VCS, you will be able to view jobs
that are in the outbox folder on the computer. The up and down arrows will
scroll one page at a time in that arrows direction. To open a folder, select it
and press . To run any job, select it and press
If there is no active connection with VCS, this option will not be available.
Press to return to the main menu.

MECHANICAL HOME

Mechanical Home will send the motion system back to its set mechanical
limits. There, it will test each limit switch by physically contacting them
before moving out to its home position. When pressing Mechanical Home
from the main screen, you will be presented with a confirmation screen.
Upon confirmation, you will have the option to cancel as the system moves
toward the home position.

TEMP HOME

A temporary home position will allow you to set a position out on the table
that will be reported to be a 0.000 position for the X and the Y-axis. This
home position will remain constant until you either mechanical home or
restart the system. To set a temp home position, use the directional
indicators to move the motion system to its desired position then press
. Press

JOB OFFSETS

Your Xenetech Laser has six programmable offsets. Three of the more common offsets
are already named for you. Keep in mind that these are only named and there are no
offsets programmed, that will be up to you to set, as you should so wish. To set or
change an offset:
13. Press the Job Offsets button on the touch screen
14. Select the offset which you want to set
15. Move the motion system as well as the work table to the desired position
16. Press
to return to the main menu.
