8. Cylindrical Attachment Engaged/Disengaged – This will indicate whether or not your cylindrical
attachment is plugged in and ready for use. A grey icon
attachment is not attached. A red icon
and ready for use.
9. Z Axis UP/DOWN Directional – This directional indicator will move the Z-axis up and down.
Using the center as a marker, pressing above center will move the table up and pressing below
the center point will move the table down. Not only that, but the farther you move your finger
from center, the faster the Z-axis will travel.
10. X and Y Axis Directional – This directional indicator will move the motion system left, right,
forward and backward. Using the center as a center point, pressing the directional indicator in
any direction (diagonals included) will move the motion system in that direction. Not only that,
but the farther you move your finger from center, the faster the motion system will travel.
11. Status Bar – During a job, this will display information such as the name of the job, the time that
has elapsed and the current power and speed.
12. Menu Options – Under each file menu there are various menu options. Each option will open up
a new screen with choices and options of their own.
At the top right hand corner of each menu there is a Return button. Touching this
button will confirm a given menu choice and return you to the main menu.
WHEN CONFIRMING CERTAIN MENU OPTIONS, IT IS POSSIBLE THAT THE SYSTEM WILL NEED TO MOVE TO
PERFORM THE REQUESTED OPERATION. IT IS RECOMMENDED THAT BEFORE YOU CONFIRM THESE CHOICES TO
MAKE CERTAIN THAT YOU REMOVE ANY MATERIALS THAT MIGHT OBSTRUCT THE MOVEMENT OF THE MOTION
SYSTEM UNLESS OTHERWISE DIRECTED. ALWAYS BE AWARE OF THE WHEREABOUTS OF THE PLUNGER AND/OR
THE DIAMOND TIP WHEN THE MOTION SYSTEM AND/OR WORK TABLE IS IN MOTION.

ONE FINAL NOTE

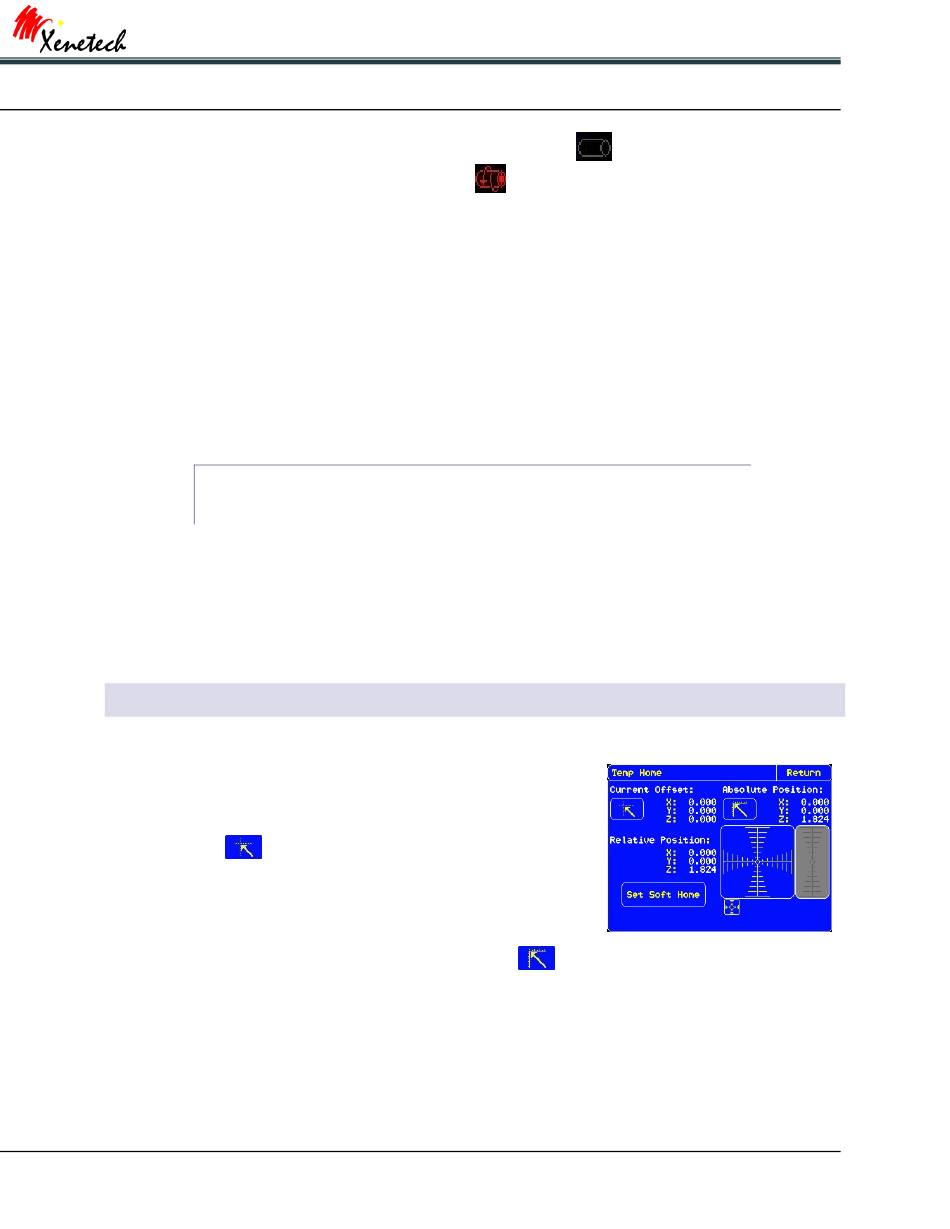

A few of the menus you will encounter look like the one below. Let's take a moment to go over the three different
types of positions to help familiarize you with each.
•
Current Offset – For whichever menu option you are in, if you
have an offset already in memory it will be displayed here.
Pressing under Current Offset, will move the X, Y-axis to that
position.
•
Absolute Position – This is the current position of the X, Y and Z-
axis. You will note as you move any of the three axis these values
will change to represent the current position. Pressing
Y-axis to the mechanical home position.
•
Relative Position – This value is the difference between the Absolute Position and the Current Offset.
Xenetech Duo 1218 Installation & Table Manual
indicates that the cylindrical attachment is attached
indicates that the cylindrical
under Absolute Position will move the X and
