Summary of Contents for CommScope Node AM4

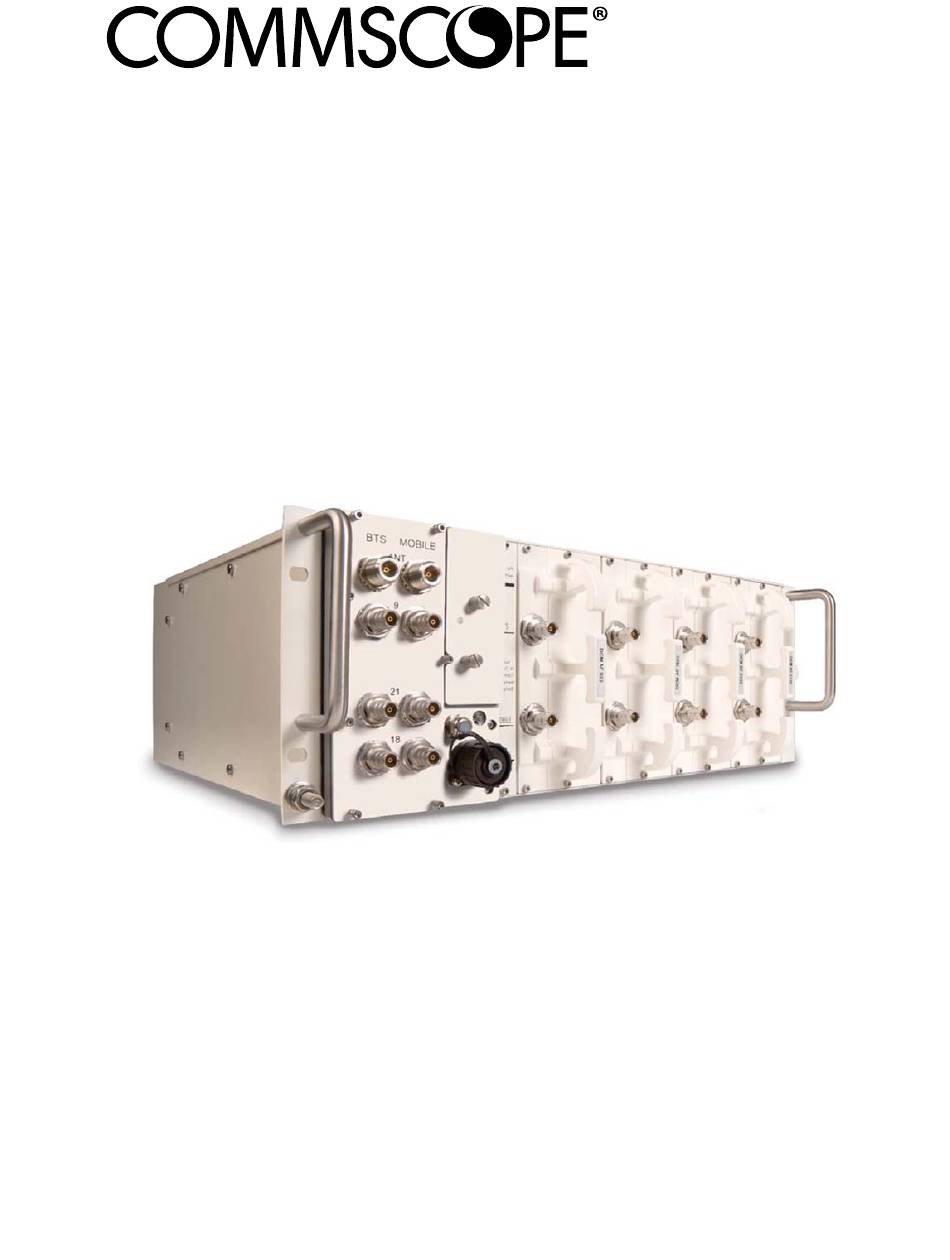

  • Page 1 Repeaters Node AM4 4 slots Network Elements Manual MF0121ACP...
  • Page 2 DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein.

  • Page 3: Table Of Contents

    Health and Safety for Mechanical Installation 19  3.1.2.  Property Damage Warnings for Mechanical Installation 19  3.1.3.  Removal of Transport Protection Cover 20  3.1.4.  19 Inch Rack Mounting of the Node AM4 20  3.1.5.  RF Card Installation 22  3.2.  ELECTRICAL INSTALLATION 23  3.2.1. ...
  • Page 4 7.5.  MODEMS 78  7.5.1.  HC25 / PHS8 / PLS8 / MC88 / TRM-5 78  7.5.2.  Wireless Router M!DGE (Racom) 78  SPARE PARTS LIST     INDEX       LIST OF CHANGES   Page 4 MF0121ACP_uc.docx Manual for Node AM4...
  • Page 5   figure 3-6 Connecting the CAT5 cable to the Node AM for the local connection..33   figure 4-3 Layout of a Node AM4 (combiner with three pairs of band ports), maximum equipment ....................36   figure 4-4 Node AM4 3-band combiner (850-900, 1800, 2100 MHz) with three pairs of band ports) ....................
  • Page 6 3-1 Description of Node AM4 antenna connectors ........... 26   table 3-2 AC Mains connector, PIN assignment ............31   table 3-3 Node AM4, voltage range & external breaker ..........32   table 4-1 Pin assignment of relay contacts ..............45  ...

  • Page 7: General

    Time Division Multiple Access Transmitter User Equipment Uplink UMTS Universal Mobile Telecommunication System Uninterruptable Power Supply VSWR Voltage Standing Wave Ratio WCDMA Wide Code Division Multiple Access WEEE Waste Electrical and Electronic Equipment (Directive) MF0121ACP_uc.docx Manual for Node AM4 Page 7...

  • Page 8: Health And Safety

    6. Notice: Keep operating instructions within easy reach and make them available to all users. 7. Notice: Read and obey all the warning labels attached to the unit. Make sure that all warning labels are kept in a legible condition. Replace any missing or damaged labels. Page 8 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 9: Compliance

    AWS uplink band, the type of donor antenna must be selected in way not to exceed the 1 watt EIRP. Selection of antenna type and execution of installation has to be done in accordance to relevant FCC part and is in responsibility of the installer. MF0121ACP_uc.docx Manual for Node AM4 Page 9...
  • Page 10 émetteur. Les utilisateurs et les installateurs doivent être fournis avec des instructions d’installation de l’antenne et des conditions de fonctionnement de l’émetteur pour satisfaire la conformité aux expositions RF. Page 10 MF0121ACP_uc.docx Manual for Node AM4...
  • Page 11 10. Note: This unit complies with European standard EN60950-1 / EN62368-1. 11. Note: This unit must be installed in areas with restricted access for skilled employees only. MF0121ACP_uc.docx Manual for Node AM4 Page 11...
  • Page 12 CONSOMMATION. Il est conçu pour être installé par un installateur approuvé par un titulaire de licence d’ISDE. Pour utiliser cet appareil, vous DEVEZ détenir une LICENCE d’ISDE ou avoir obtenu le consentement exprès d’un titulaire de licence autorisé par ISDE. Page 12 MF0121ACP_uc.docx Manual for Node AM4...
  • Page 13 Electrical and Electronic Equipment (WEEE) Directive and implementing regulations is available on CommScope’s website. http://www.commscope.com/About-Us/Corporate-Responsibility-and-Sustainability/Environment/#recycling Required Antenna Distances Node AM/A+ Antenna gain Maximum Distance   without ISED cable loss [dBi] inches inches DCM AF 1727E .251 9.88 .386 15.19 MF0121ACP_uc.docx Manual for Node AM4 Page 13...

  • Page 14: About Commscope

    To make the most of this product, we recommend you carefully read the instructions in this manual and commission the system only according to these instructions. For technical assistance and support, please also contact the local office or CommScope directly at one of the addresses listed in the following chapter.

  • Page 15: International Contact Addresses For Customer Support

    1. General 1.6. International Contact Addresses for Customer Support Canada United States CommScope Canada Andrew LLC, A CommScope Company 505 Consumers Road, Suite 803 620 North Greenfield Parkway Mail Mail Toronto M2J 4V8, Canada Garner, NC 27529, U.S.A. +1-905-878-3457 (Office)
  • Page 16 E-mail wisupport.ch@commscope.com Italy Iberia Region - Spain & Portugal CommScope Italy S.r.l., Faenza, Italy Andrew España S.A. A CommScope Company Via Mengolina, 20 Avda. de Europa, 4 - 2ª pta. Mail 48018 Faenza (RA) Mail Parque Empresarial de la Moraleja...

  • Page 17: Introduction

    In the downlink (DL), the Node AM4 picks up signals coming from the base station, filters them, amplifies them, and retransmits them to the mobile. In the uplink (UL), it picks up signals from the mobile, filters them, amplifies them, and retransmits them to the base station.

  • Page 18: Quick Start Checklist

    Connect power and the antenna coaxial cables to the Node AM4. Open the small User Interface cover plate Establish a connection from the laptop or computer to the Node AM4. Login to the unit and use the Technician Setup page (see Software manual) for configuration.

  • Page 19: Installation

    Node AM4 is 220 m³/h which will be reached at an environmental temperature of around 45°C and above. We suggest to supply the repeater at the air inlet with fresh air and to conduct warm air at the air outlet off the Node AM4 without feedback in order to avoid a 'thermal short-circuit'.

  • Page 20: Removal Of Transport Protection Cover

    Note: because it is required if the Node has to be sent back, e.g. for a repair or upgrade. 3.1.4. 19 Inch Rack Mounting of the Node AM4 1) 19’’ Rack for Node AM4 (and LMR450) rack mounting 2) Mounting material:...
  • Page 21 1 HU to ensure sufficient air circulation. The rear side 100 mm of the Node AM4 needs a distance of the rear side of the 19’’ rack of at least 100 mm. Hook the cage nuts from behind in the vertical mounting rail of the 19’’...

  • Page 22: Rf Card Installation

    Note 4: It is recommended to disconnect the Node AM4 from mains (power-supply line) before an RF card is mounted or dismounted. In case the Node AM4 is not allowed to be disconnected from mains, the RF card which needs to be replaced must be disabled via software in the Technician page before removing it.

  • Page 23: Electrical Installation

    8. Notice: Use an appropriate torque wrench for the coupling torques: for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening, e. g. item no. 244379 available from the CommScope e-catalog for 7/16 DIN-type (25 N-m / 19 ft lb) with 1 ¼ in opening, e.

  • Page 24: Grounding

    Plain washer M8 DIN125 figure 3-1 Grounding bolt  Note: The PE cables must have a minimum cross section of 16 mm The local ground cable requires an adequate ear for the M8 GND bolt. Page 24 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 25: Interconnection Cabling

    RF cards. However, the antennas may also be mounted directly on the RF card connectors. figure 3-2 Example for interconnecting cabling for a Node AM4 (combiner with three pairs of band ports) 3.2.5. Connection of the Antenna Cables The antenna connectors of the Node AM combiner are N female.

  • Page 26: Figure 3-3 Front View Of Node Am4 Antenna Connections (Combiner With Three Pairs Of Band Ports)

    3. Installation Multiband combiner Slots 1 figure 3-3 Front view of Node AM4 antenna connections (combiner with three pairs of band ports) Description of connector/ port 30 dB coupling probe of antenna ports BTS (for testing only) 30 dB coupling probe of antenna ports Mobile (for testing only)

  • Page 27: Cleaning Procedure For Rf Cable Connectors

    Notice: for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening, e. g. item no. 244379 available from the CommScope e-catalog for 7/16 DIN-type (25 N-m / 19 ft lb) with 1 ¼ in opening, e. g. item no. 244377 available from the CommScope e-catalog SMA connectors have a specified torque of 60 N-cm.
  • Page 28 5. Clean the lip of the inner ring with a cotton bud drenched with isopropyl alcohol. 6. Clean the inside surface of the inner ring with a cotton bud drenched with isopropyl alcohol. Page 28 MF0121ACP_uc.docx Manual for Node AM4...
  • Page 29 10. Continue with the winding area using lint-free wipe drenched with isopropyl alcohol. 11. Continue with the inside mating surface of the inner ring. 12. Clean the outside surface of the center pin. MF0121ACP_uc.docx Manual for Node AM4 Page 29...

  • Page 30: Antenna Cable Connector Assembly

    For angled antenna connectors use your wrench hand to retain the cable connector and fasten the coupling nut with the torque wrench. Make sure only the coupling nut is turned, not the cable connector. Page 30 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 31: Power Connection

    3.2.3 and connected via external circuit breaker (see table 3-3). Mains power must be connected at the mains connector. The mains cable (assembled feed line) is included in the Node AM4. The PIN assignment of the mains connector is as follows:...

  • Page 32: Table 3-3 Node Am4, Voltage Range & External Breaker

    Make sure to connect the correct voltage to the unit. Depending on the Node AM4 power class, please refer for the minimum cross section of mains cable and external circuit breaker to the corresponding following tables:...

  • Page 33: Connection To The Node Am

    Via the remote connection, the operator can monitor and control the Node AM using the Web browser interface remotely. In addition, the remote connection may be used for an OMC-type software platform and SMS alarm forwarding. MF0121ACP_uc.docx Manual for Node AM4 Page 33...

  • Page 34: Functional Description

    4. Functional Description 4.1. Architecture The Node AM4 is designed to amplify signals between multiple mobiles and a base station. The unit consists of a filter and amplifier chain in the downlink and one filter and amplifier chain in the uplink. The uplink and downlink paths are connected via a duplexer on both ends of each path.

  • Page 35: Frequency Hopping

    A corresponding measurement is also made for the output levels. RSSI measurements are done for each band segment; for further details please refer to the Node AM/ Node AM SW manual. MF0121ACP_uc.docx Manual for Node AM4 Page 35...

  • Page 36: Alarm Forwarding

    SMS. For further details please contact CommScope. 4.3. Components The actual configuration of the individual Node AM4 can be seen in the configuration list, which is part of the delivery. It is also available as an electronic list accessible via software.

  • Page 37: Multiband Combiner

    DO NOT connect the Modem RF probe [1] on the "Mobile" side of the Node AM repeater with the 30 dB coupling probes [3]! Front view 3-D-view figure 4-2 Node AM4 3-band combiner (850-900, 1800, 2100 MHz) with three pairs of band ports) MF0121ACP_uc.docx Manual for Node AM4...

  • Page 38: Figure 4-5 Node Am4 2-Band Combiner (800-900 And 1800-2100 Mhz) With Two Pairs Of Band Ports

    4. Functional Description Front view 3-D-view figure 4-3 Node AM4 2-band combiner (800-900 and 1800-2100 MHz) with two pairs of band ports Via an additional external 10 dB directional coupler the modem can be connected using the direct Modem RF port [1]. In case an external 10 dB directional coupler cannot be used, an integrated directional probe (QMA connector at the rear side of the combiner;...

  • Page 39: Digital Channel Modules (Dcm) / Rf Cards

    With certain RF cards, use of a slot duplexer is obligatory. This duplexer is installed in an RF card slot, i.e. if such a duplexer is equipped, maximally three RF cards are available. For details on the card types see chapter 8. MF0121ACP_uc.docx Manual for Node AM4 Page 39...

  • Page 40: Dummy Card

    4.3.4. Power Supply Unit The power supply unit is mounted in the interior cabinet of the Node AM4. This device transforms mains power into predefined DC voltages. When performing maintenance, ensure that all circuits are voltage-free and that the Node AM4 is disconnected from mains.

  • Page 41: User Interface Board (Ui1 Board)

    To delete the false alarm, the unit has to be shut down and powered up again. During shutdown, the battery disconnect button must not be pressed see also notice in chapter 5.2.2). The following figure illustrates the general type; of UI1 Board. MF0121ACP_uc.docx Manual for Node AM4 Page 41...

  • Page 42: External Alarms

    The external alarms are used to monitor the status of one or more external devices via the Node AM. A UPS or entry alarm is among the items that might be connected to the contact relay and monitored via the Node AM4. The cage clamp connectors are located on the UI1-board.

  • Page 43: Figure 4-12 Pin Assignment

    Ext_Alarm_3 Summary Alarm: normally open PIN (closed in alarm Ext_Alarm_4 condition) * LED_UI0 Ext_Alarm_5 LED_UI1 Pin1 * galvanically isolated figure 4-10 PIN assignment External alarm clamps figure 4-11 Schematics of external alarm clamps MF0121ACP_uc.docx Manual for Node AM4 Page 43...

  • Page 44: Summary Alarm

    The summary alarm is a DC potential-free contact relay. Observe that the cross-sectional area of the wires to be connected must be in the range from 0.4 – 0.8 mm (AWG 26-20). Pin No.: figure 4-13 Summary alarm relay Page 44 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 45: Figure 4-16 Relay Contacts, Alarm Condition

    Closed in normal condition table 4-1 Pin assignment of relay contacts Pin 4 Pin 5 Pin 6 figure 4-14 Relay contacts, alarm condition Summary alarm clamps figure 4-15 Schematics of summary alarm clamps MF0121ACP_uc.docx Manual for Node AM4 Page 45...

  • Page 46: User Interface 2 Board With Optional Features

    The User Interface 2 (UI2) board is equipped on a carrier plate together with the optional features of the Node AM4. These are the VSWR module, the Battery Backup option, and the modem. Besides, the UI2 board offers additional USB ports and an Ethernet port.

  • Page 47: Figure 4-19 Position Of Ui2 Board And Bbu

     Then the battery pack can be removed easily.  Insert the new battery pack and fasten the M3x16 hexagon socket-head-cap screw again.  Reconnect the DC connector to the "Battery" connector at the UI2 board. MF0121ACP_uc.docx Manual for Node AM4 Page 47...

  • Page 48: Optional Modems

    GPS is only supported by PHS8 (formerly HC25) and PLS8. Modem type RV50X is supported but it is not available from CommScope. It can only be ordered directly from the manufacturer. A wireless modem is used to establish a remote connection to the Node AM. The...

  • Page 49: Figure 4-21 Cable From The Modem To The Multiband Combiner, Exemplary

    G3266M381 according to QA 7.5.1.090/F1011P0 Part(s) to be clean and free of all chips, burrs, sharp edges and foreign material figure 4-20 Modem Kit HC25 / PHS8 / PLS8 Node AM, schematic wiring MF0121ACP_uc.docx Manual for Node AM4 Page 49...

  • Page 50: Figure 4-23 Modem Kit Mc88/Trm-5 Node Am, Schematic Wiring

    To insert the SIM card, use a pen and press the small yellow button. Then, the SIM-card drawer will come out and the SIM-card can be inserted. Carefully push the drawer to its original position. Yellow button SIM-card drawer figure 4-23 SIM-card drawer Page 50 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 51: Figure 4-26 Installation Of Modem Rv50X

    4. Functional Description Installation of modem RV50X This modem type is not available from CommScope. It can only be ordered directly from the manufacturer. For the installation, proceed as illustrated in the following: figure 4-24 Installation of modem RV50X MF0121ACP_uc.docx...

  • Page 52: Maintenance

    Maintenance of the Node AM should be performed on a field replaceable unit (FRU) basis only. Do not damage the warranty labels on the components as this voids the warranty. Unless otherwise agreed to in writing by CommScope, CommScope’s general limited product warranty (http://www.commscope.com/Resources/Warranties/) shall be the warranty governing the Node AMs, including the installation, maintenance, usage and operation of the Node AMs.

  • Page 53: Table 5-1 Specified Torques For Stainless Steel Screws

    Nominal torque sleeve nut M 16 x 1.5 20.00 N-m 15.00 N-m M 20 x 1.5 30.00 N-m 20.00 N-m PG 7 6.50 N-m 0.42 N-m table 5-3 Standard torques for metal cable glands MF0121ACP_uc.docx Manual for Node AM4 Page 53...

  • Page 54: Table 5-4 Specified Standard Tolerances

    This is to avoid possible damage when inserting the new RF card. If any FRU not contained in the following chapter needs to be replaced, please contact customer service for additional instructions. Page 54 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 55: Multiband Combiner

     Note: Removal and installation of a combiner on-site must only be done by a service technician of CommScope or by a qualified person authorized and trained for this procedure who is observing the corresponding safety procedures required by local, regional and country-specific regulations which have to be observed during all times of this procedure.
  • Page 56 Attention: Be careful with all cables connected. Do not squeeze or damage any cables, and make sure that no cables get disconnected by accident. Fasten the screws of the combiner tight to restore watertightness (for screw positions, see illustration at the beginning of the procedure). Page 56 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 57: Modem / Battery

    Modem and battery are located on a carrier plate located behind the combiner carrier plate. Thus, for replacing the modem or the battery, the combiner has to be removed first. To do so refer to chapter 5.2.1, observing the corresponding warning messages. MF0121ACP_uc.docx Manual for Node AM4 Page 57...
  • Page 58 Note: In some cases, a cable tie (as illustrated to the right) might be used. Cutting this cable tie is not necessary if you proceed exactly in the order as described in the following Page 58 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 59: Figure 5-1 Installation Of Modem Onto Adapter Kit

    * In case of an upgrade with the new adapter kit (see also chapter 8), mount the new modem onto the adapter kit as illustrated in the following figure: figure 5-1 Installation of modem onto adapter kit MF0121ACP_uc.docx Manual for Node AM4 Page 59...
  • Page 60 Mounting plates of combiner and modem connected by screw locked into long hole (seen from both sides). For the final installation of both, refer to the explanation in chapter 5.2.1, strictly observing the corresponding warning messages. Page 60 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 61: Vswr Module (Optional)

    Note: Be careful with the RF connectors! Do not confuse REV and FWD connectors! Ensure to re-connect the FWD-RF connector and cable to their correct positions before the replacement, (as illustrated in figure 5-3 VSWR module, position of RF connectors). MF0121ACP_uc.docx Manual for Node AM4 Page 61...

  • Page 62: Status Led

    (indicated in the figure above) from the (external alarm) terminal block. After replacing the cover, fasten the screws tight to restore watertightness. figure 5-5 Status LED and connection cables Page 62 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 63: Power Supply

    Note: We strongly recommend not to replace a defect PSU on-site but to send the Node AM to CommScope for repair. A replacement on-site must only be done by a service technician of CommScope or by an equally trained person who...
  • Page 64 To disconnect the mains cable, observe the precautions illustrated on the next page. To disconnect cable, press metal-holder safety clip to the rear! Observe that the snap-in clip of I C bus cable has to be pressed while loosening the cable. Page 64 MF0121ACP_uc.docx Manual for Node AM4...
  • Page 65 Then, fasten the power supply with the ten hexagon socket head cap screws. Reinstall the RF and dummy cards and fasten all their screws tight to restore watertightness. MF0121ACP_uc.docx Manual for Node AM4 Page 65...

  • Page 66: Rf Card Exchange / Upgrade With Additional Rf Cards

    Use the guide rails on top and bottom to fit in the RF card smoothly. Reconnect the cables. Page 66 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 67: Fan Unit

    5 at the bottom, 2 at each side. Carefully pull the complete fan unit from the cabinet. Unscrew the fan unit connector and disconnect it. To mount the new fan unit, proceed in reverse order. MF0121ACP_uc.docx Manual for Node AM4 Page 67...

  • Page 68: Bottom Type

    Fan tray Ensure to remember the exact position cables connected! NOT squeeze any cables. Holding devices Just loosen the 3 screws (circle-marked) slightly at the holding devices for the fan tray and cable. Page 68 MF0121ACP_uc.docx Manual for Node AM4...
  • Page 69 Fan connector Then you get access to cable disconnected. Fan tray Carefully lift the fan tray to be replaced. To mount the new fan unit, proceed as follows: MF0121ACP_uc.docx Manual for Node AM4 Page 69...
  • Page 70 Take care to properly place cables again before replacement. squeeze them. Lugs Reconnect the fan cable connectors and bring the fan cable into position. Tighten holding devices for fan tray and cable again. Installation finished: Page 70 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 71: Illustrations

    6. Illustrations 6. Illustrations 6.1. Cabinet Drawings Node AM figure 6-1 Cabinet of a Node AM4 (fan unit backside type) 6.2. Layout figure 6-2 Layout of the Node AM4, example MF0121ACP_uc.docx Manual for Node AM4 Page 71...

  • Page 72: Specifications

    LTE and UMTS uplink composite output power (dBm) valid for sub-bands ≤ 10 MHz, slight reduction of output power for sub- bands > 10 MHz only”] Downlink output power @ 2 carriers for AF936, AF936R, AF936RE: 30 dBm/carrier table 7-1 RF card options, EMEA, single band cards Page 72 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 73: Table 7-2 Rf Card Options For Usa, Single Band Cards

    27 (UMTS, LTE) 25 (UMTS, LTE) LTE 2100 Output power per carrier (dBm) = composite output power (dBm) - 10 log (no. of carriers) table 7-3 RF card options, dual band cards MF0121ACP_uc.docx Manual for Node AM4 Page 73...

  • Page 74: Bandwidths Available In Ul And Dl Per Rack (Single-Band Cards)

    The digital architecture allows sub-band filtering and is shared between all RF Cards inserted into the Node AM rack. The Node AM4 can provide up to filter resources (up to 5 MHz each). Additional filtering capability is provided by on- card digital signal processing at dual-band RF cards to satisfy increasing demand of sub- bands for further RF-bands or MIMO deployments.

  • Page 75: Bandwidths Available In Ul And Dl Per Dual-Band Card

    7. Specifications Example of filter resources allocation (up to 5 MHz wide) of Node AM4 rack (single- band cards): 46 47 ∆ Operator A GSM 900 1 Band 6 MHz ∆ Operator A GSM 1800 1 Band 32 MHz ∆...

  • Page 76: Table 7-7 Filter Resources Allocation (Up To 5 Mhz Wide), Example

    In response to this trend, CommScope has enhanced the radio band capacity of its existing Node AM platform by providing Dual Band RF cards. Following a software upgrade, two medium power RF front ends can be operated in the same space of a legacy single band plug-in module.

  • Page 77: Mechanical Specifications

    7. Specifications 7.2. Mechanical Specifications 177.0 x 482.3 x 462.8 mm Height, Node AM4 chassis (with fan at backside) (7 x 19 x 18.2 in) width, 177.0 x 482.3 x 436.3 mm depth Node AM4 chassis (with fan at bottom) (7 x 19 x 17.2 in)

  • Page 78: Modems

    RS232, 2x Ethernet, USB, SMA Power consumption Connectors Data, power, RF M!DGE Wireless Router supported by software, mounting kit incl. cables available; M!DGE router must be purchased directly at Racom or any distributors. Page 78 MF0121ACP_uc.docx Manual for Node AM4...

  • Page 79: Spare Parts List

    8. Spare Parts List 8. Spare Parts List The following list contains all FRUs available for the Node AM4. The Node AM4 configuration is available in the web interface. Designation ID No Node AM4 7613589 Adapter Kit Modem Node AM...
  • Page 80 Rechargeable battery pack 6 V 7613775-00 Slot Duplexer passive (876-915/921-960 MHz) 7621867-00 User Interface 2 - Kit > V2.0.6 7814162 User's Manuals for Node AM4 7617868-00 VSWR Kit 925-960 MHz 7622883 VSWR-Module 925-960 MHz 7614218-00 Modem-Kit PHS8 is the successor of Modem-Kit HC25 which has been discontinued Due to a PCB update on the UI2 Board (see also chapter 4.3.6), SW version V2.0.6 is mandatory for...

  • Page 81: Index

    9. Index 9. Index A  L  Abbreviations............7 Layout Node AM4 ..........71 AC Breaker ............. 32 Layout, Components ..........36 Alarm Forwarding ........... 36 LED Kit ..............62 Alarms, External ............. 42 Local Connection ........... 33 B  M  Battery Backup - Option ......... 46 Mains Power Interruption ........

  • Page 82: List Of Changes

    M0121ACP - Chapters 1.1 and 1.4 updated (AWS, WEEE) 30-August-2018 - Chapters 4.3.6, 5.2.1, and 5.2.2 updated due to new modem mounting plate - RF card options for US added (table 7-2) - Chapter 8 updated. Page 82 MF0121ACP_uc.docx Manual for Node AM4...
