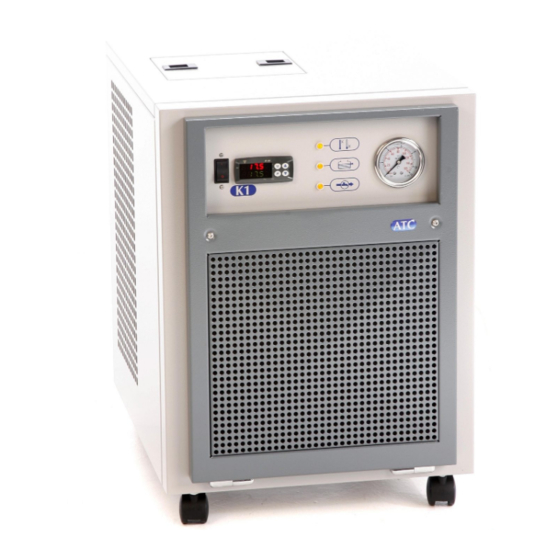

- Page 1 Applied Thermal Control Limited Unit 1 Garden Court, Gee Road, Whitwick Business Park, Coalville, Leicestershire, LE67 4NB. United Kingdom T:+44 (0)1530 839998 – sales@app-therm.com – www.app-therm.com K SERIES CHILLERS STANDARD MODELS INSTRUCTION MANUAL Issue 3.2...
-
Page 3: Table Of Contents
KT1 series chillers – Installation and Operation manual Contents 1.0 Introduction Safety 1.1 Unpacking Site requirements Warranty registration 2.0 Installation Voltage selection Coolant filling 3.0 Operation 4.0 Maintenance and service requirements 4.1 Troubleshooting 5.0 Return of goods procedure 6.0 Dimensions and performance 7.0 EC Declaration of Conformity Issue 3.2... -
Page 4: Introduction
Please read this manual carefully to ensure you understand the operation of the machine and how to use the unit safely and efficiently. If you have any questions regarding installation or repair of this unit, please contact ATC direct. -
Page 5: Safety
Warning: Use of this equipment in any manner not specified by the manufacturer may result in the protection provided by the equipment being impaired. Warning: Failure to comply with a ‘Warning’ may result in personal injury or death. ATC does not accept any liability for injury caused through use of this equipment. -
Page 6: Unpacking
Please check that both the packaging and the unit are undamaged. If there is any doubt, it is vital that you inform both ATC and the carrier before making a claim on the carrier. There are no hidden shipping bolts or other fixings. You should inspect the packaging for signs of transit damage before signing for the unit, and if possible unpack the unit before signing. -
Page 7: Site Requirements
KT1 series chillers – Installation and Operation manual 1.2 Site requirements • Hard, level surface. Ideally smooth to allow freewheeling of castors, which are designed for indoor use. • Clean, dust free environment. Air-cooled chillers move large volumes of air, and large amounts of air-borne contamination will result in fouling of the condenser, reducing the capacity of the unit and in extreme cases causing a system shut-down. -
Page 8: Warranty Registration
ATC’s standard warranty terms are Return to Base (RTB) – issues with chillers are often easily solvable over the phone or email, or by reviewing ATC’s technical guidance on the web and in the product manual. On occasion, at the discretion of ATC, goods may be serviced on site FOC or a service loan unit may be supplied. -
Page 9: Installation
The system should be flushed clean with tap water to remove all traces of cleaner prior to filling the system. All connections should be made using either the ATC ‘easy clamp’ or a jubilee type clip. Where threaded or compression type fluid joints are to be made, always use a suitable jointing compound such as PTFE tape. -
Page 10: Coolant Filling
Caution: Always use ATC recommended fluids in your K series chiller. Never use other anti-freeze mixtures, as they may corrode your application and will damage the K series pump seals. -
Page 11: Operation
KT1 series chillers – Installation and Operation manual Operation KT1 chiller has been configured to provide temperature stability to +0.1°C. The chiller includes a dual digital display, high/low temperature and low fluid level alarms. High temperature alarm: 10°C above set point Low temperature alarm: 10°C below set point Low fluid alarm / No flow alarm:... - Page 12 KT1 series chillers – Installation and Operation manual Fluid flow and pressure KT1 series chillers contain a high-pressure volumetric pump capable of 150 psi. All units are normally supplied with a pre-set maximum of 50 psi unless a different pressure is required.
-
Page 13: Maintenance And Service Requirements
KT1 series chillers – Installation and Operation manual Caution: Changing the flow/pressure with the pressure relief valve will also change the pre-set pressure safety set-point. This will move to a lower pressure than the factory setting when decreasing the flow/pressure, and to a higher pressure when increasing the flow/pressure. -
Page 14: Troubleshooting
KT1 series chillers – Installation and Operation manual 4.1 Troubleshooting Symptom Causes Compressor not running, Is the controller displaying an alarm? but fan running If there is no obvious cause, check… • The condenser is clean • Ambient not too high •... -
Page 15: Return Of Goods Procedure
4. Upon receipt of the completed RMA form, an engineer will be allocated or a service loan unit* will be despatched if available. * Please note that ATC will raise an invoice as part of the service loan procedure, and you will receive a credit against this upon the safe return of the loan unit. -
Page 16: Dimensions And Performance
KT1 series chillers – Installation and Operation manual 6.0 Dimensions and performance Cooling Capacity 1000 Watts 50Hz At 20°C set point and 20°C ambient 1200 Watts 60Hz Dimensions H x W x D 490 x 370 x 560 mm Weight 60 Kg Temperature range 4°C - 35°C... -
Page 17: Ec Declaration Of Conformity
AUTHORISATION TO COMPILE THE TECHNICAL FILE Mitchell Howard, Applied Thermal Control Ltd, Garden Court, Gee Road, Whitwick, LE67 4NB, UK DESCRIPTION & IDENTIFICATION OF MACHINERY Generic denomination; K-Series. Function; Recirculating chiller Model; All with ‘K’ prefix. Type; Air-cooled or water-cooled vapour compression-based.
