Invertek Drives OPTISTICK 2 User Manual page 2

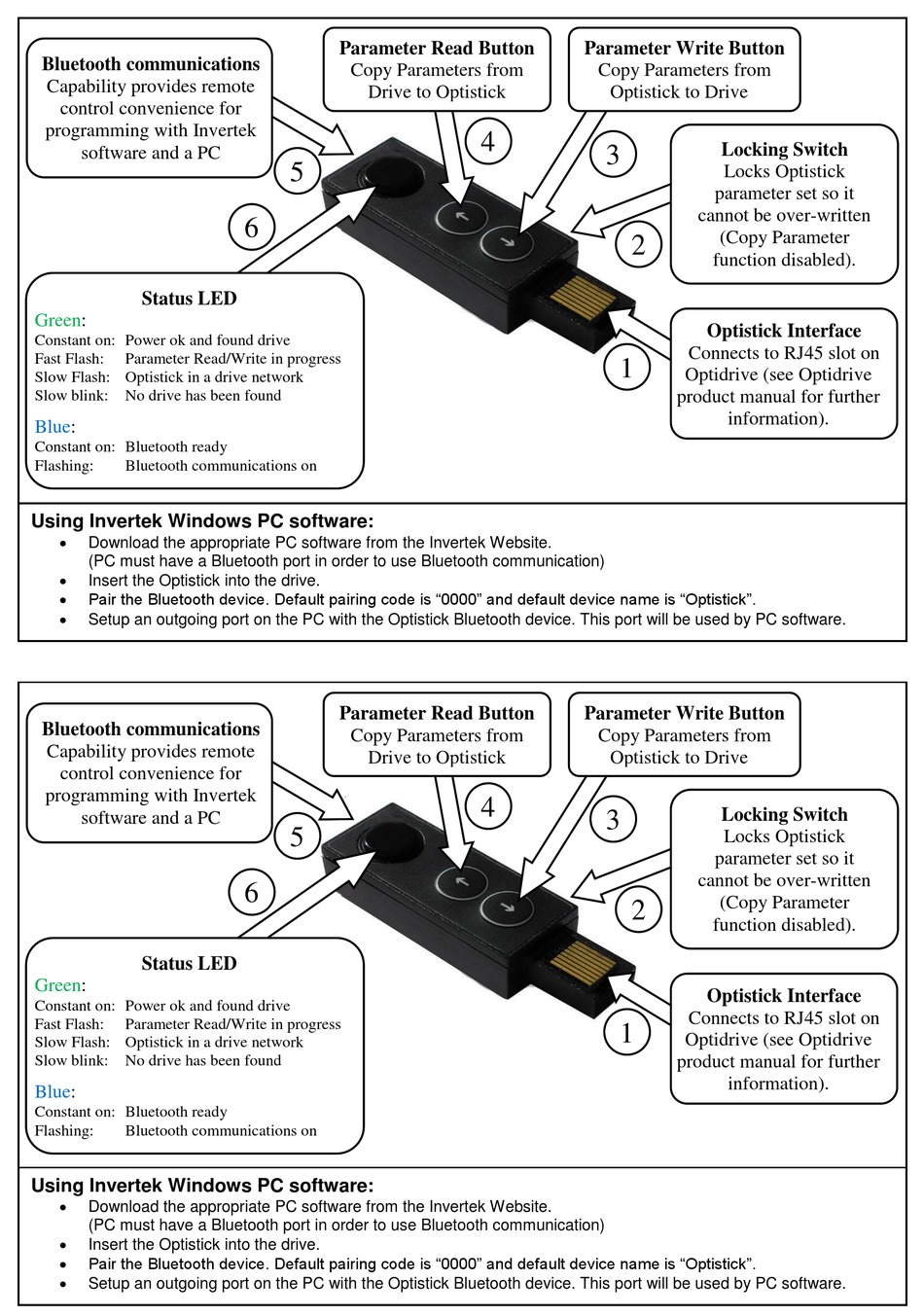

Bluetooth communications
Capability provides remote
control convenience for
programming with Invertek
software and a PC
Status LED
Green:
Constant on: Power ok and found drive
Fast Flash: Parameter Read/Write in progress
Slow Flash: Optistick in a drive network
Slow blink: No drive has been found
Blue:
Constant on: Bluetooth ready
Flashing: Bluetooth communications on
Using Invertek Windows PC software:

Download the appropriate PC software from the Invertek Website.
(PC must have a Bluetooth port in order to use Bluetooth communication)

Insert the Optistick into the drive.

Pair the Bluetooth device. Default pairing code is "0000" and default device name is "Optistick".

Setup an outgoing port on the PC with the Optistick Bluetooth device. This port will be used by PC software.
Bluetooth communications
Capability provides remote
control convenience for
programming with Invertek
software and a PC
Status LED
Green:
Constant on: Power ok and found drive
Fast Flash: Parameter Read/Write in progress
Slow Flash: Optistick in a drive network
Slow blink: No drive has been found
Blue:
Constant on: Bluetooth ready
Flashing: Bluetooth communications on
Using Invertek Windows PC software:

Download the appropriate PC software from the Invertek Website.
(PC must have a Bluetooth port in order to use Bluetooth communication)

Insert the Optistick into the drive.

Pair the Bluetooth device. Default pairing code is "0000" and default device name is "Optistick".

Setup an outgoing port on the PC with the Optistick Bluetooth device. This port will be used by PC software.
Parameter Read Button
Copy Parameters from
Drive to Optistick
5
6
Parameter Read Button
Copy Parameters from
Drive to Optistick
5
6
Parameter Write Button
Copy Parameters from
Optistick to Drive
4
3
2
1
Parameter Write Button
Copy Parameters from
Optistick to Drive
4
3
2
1
Locking Switch
Locks Optistick
parameter set so it
cannot be over-written
(Copy Parameter
function disabled).
Optistick Interface
Connects to RJ45 slot on
Optidrive (see Optidrive
product manual for further
information).
Locking Switch
Locks Optistick
parameter set so it
cannot be over-written
(Copy Parameter
function disabled).
Optistick Interface
Connects to RJ45 slot on
Optidrive (see Optidrive
product manual for further
information).
