4. OPERATING INSTRUCTIONS

4.1.

INSTRUMENT DESCRIPTION

4.1.1. Controls description

4.1.2. Alignment marks

Put the conductor within the jaws on intersection of the indicated marks as close as
possible (see Fig. 2) in order to meet the meter accuracy specifications.
1.800.561.8187

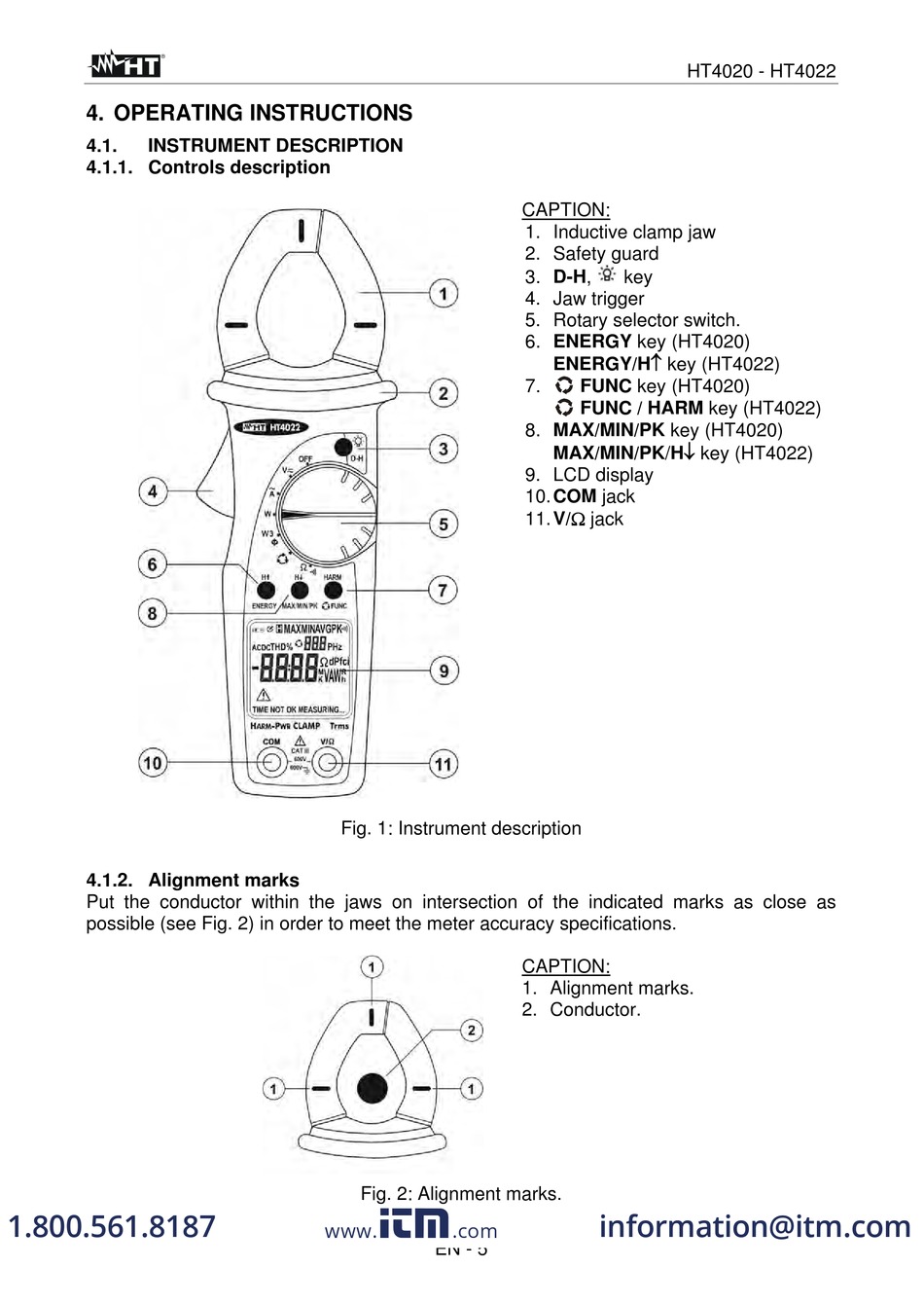

Fig. 1: Instrument description
Fig. 2: Alignment marks.
www. .com
EN - 5
HT4020 - HT4022
CAPTION:
1. Inductive clamp jaw
2. Safety guard
3. D-H, key
4. Jaw trigger
5. Rotary selector switch.
6. ENERGY key (HT4020)
ENERGY/H key (HT4022)
7. FUNC key (HT4020)
FUNC / HARM key (HT4022)
8. MAX/MIN/PK key (HT4020)
MAX/MIN/PK/H key (HT4022)
9. LCD display
10. COM jack
11. V/ jack
CAPTION:
1. Alignment marks.
2. Conductor.
