Summary of Contents for Dräger Polytron 2 XP Tox

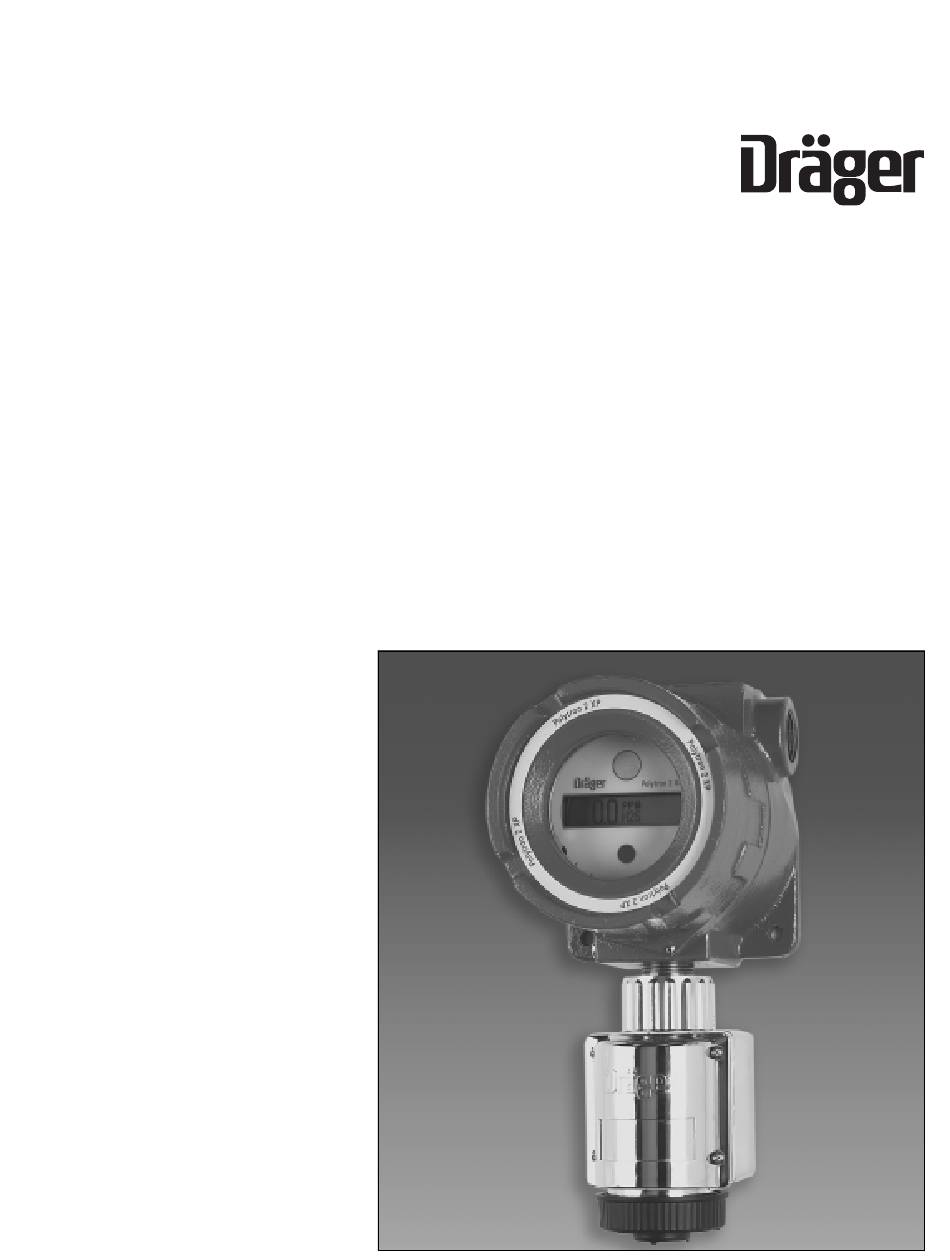

- Page 1 Polytron 2 XP Tox Transmitter for Electrochemical Sensors Operating Manual...
- Page 2 Operation Installation Diagrams Installing Electrical Connections at the Transmitter Hart Multidrop Installation ® 2.2.1.2 HART Multidrop Installation ® • Unscrew cover from transmitter. • Lift the handle and pull the bucket with the electronics out of the enclosure. • Turn the bucket over and pull off the 5-pin connector. •...
-
Page 3: Installing The Sensor
Installing the Sensor • Use only Dräger sensors which are designed to be used with the Polytron 2 XP Tox transmitter. • When the sensor is installed, the electronics of the transmitter automatically adjusts to the operating parameters of the sensor. -
Page 4: Technical Information
Technical Information Approvals Signal Transmission to Central Control Unit Voltage of Power Supply Physical Specifications Technical Information Approvals UL, CSA ......................Class I, Div 1, Groups B, C, D ATEX ..................II 2G EEx d [ia] IIC T6 (Ta = -40 to +65°C) II 3D EEx d [ia] IIC T85 (Ta = -40 to +65°C): IP66 CE marking ............ -
Page 5: Environmental Parameters
Technical Information Environmental Parameters Relay Specification Ambient Influences Environmental Parameters Temperature ....................–40 to 150 °F (–40 to 65 °C) Pressure .................. 20.7 to 38.4 in. of Hg (700 to 1300 mbar) Humidity ........................ 0 to 100% RH, transmitter Maximum Air Velocity ....................≤ 19.5 ft/s (≤ 6 m/s) Relay Specification (Optional) Relays ...................... -
Page 6: Order Information
Order Information Calibration Supplies Replacement Parts Order Information Order # Description 4543070 Polytron 2 XP Tox without sensor and relays; UL/ATEX/CSA version 4543200 Polytron 2 XP Tox without sensor, with relays: UL/ATEX/CSA version Calibration Supplies For NAFTA Order # Description Calibration System #1 - for calibration with disposable gas cylinder. - Page 7 Order Information Accessories Accessories For NAFTA Order # Description 4543052 Remote Control, UL, C/UL Version* 4509315 Splash Guard For all other countries Order # Description 4543052 Remote Control, UL, C/UL Version* 6807549 Splash Guard *Replacement batteries “AA” alkaline (IEC Type LR6) of the following type: Panasonic AM3, Duracell MN 1500, Energizer E91, Varta 4006...
- Page 8 Certifications...
- Page 9 Certifications...
- Page 10 Certifications...
- Page 11 Certifications...
- Page 12 Certifications...
