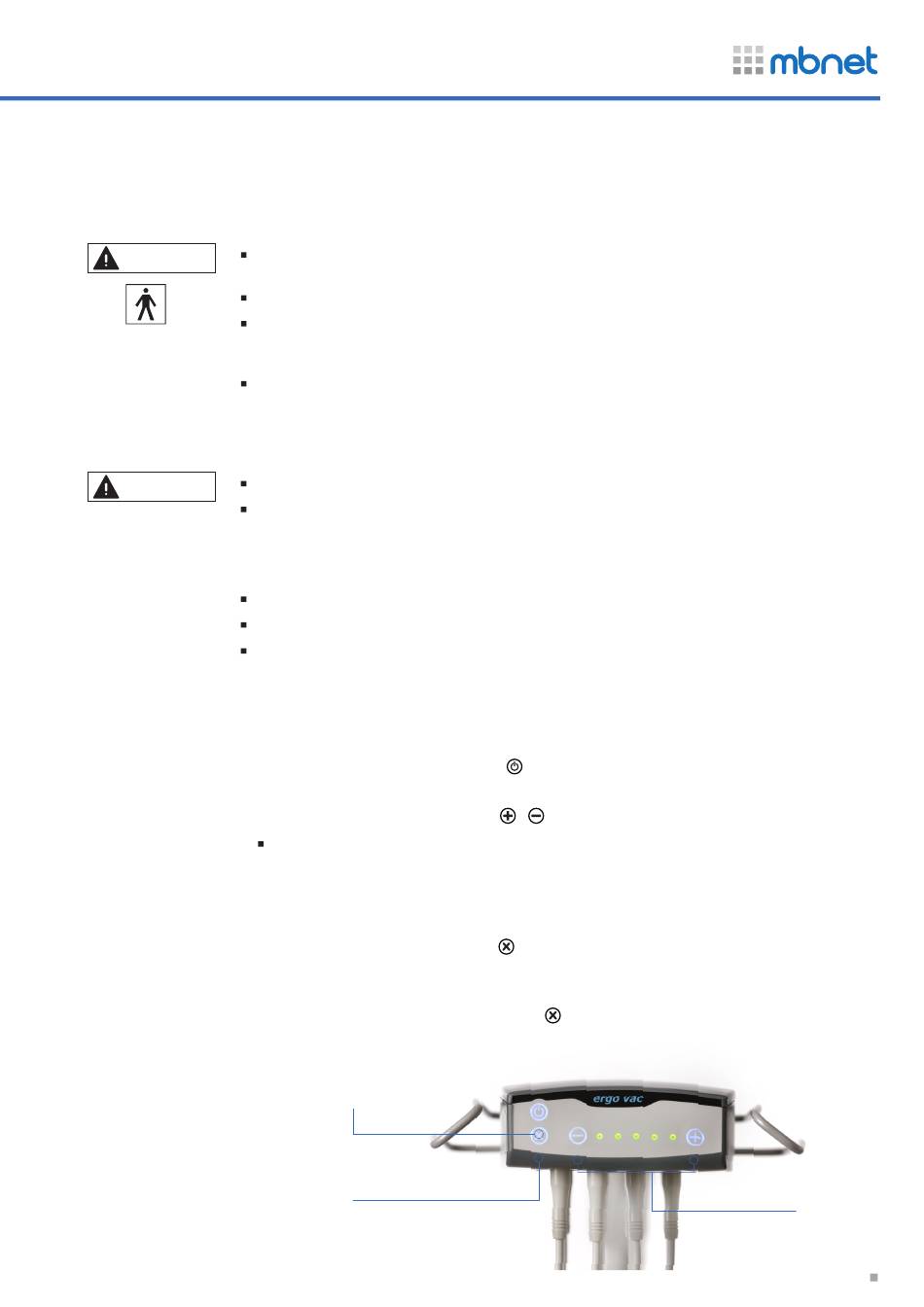

Application

Do not take an ECG picture until you have read and understood the safety instructions at the
Caution
beginning of these instructions for use.
The device is a BF type device.
During ECG recording, make sure that neither the patient- nor the conductive parts of the
patient connection or the electrodes (including the neutral ones) come into contact with other
persons or conductive parts (even if they are grounded).
The device must not be used if the mains connection cable is damaged or there is a
suspicion of damage.
6.1

Operating Conditions

The device is not suitable for continuous operation; switch off again after use.
Caution
High-frequency fields and radiation can influence the quality of ECG leads..
The device can be operated under the following environmental conditions:
Ambient temperature: +10 °C and +40 °C
Relative humidity: between 30 % and 75 %
Air pressure: between 700 hPa and 1060 hPa
6.2

Starting a Recording

1 Preparing the patient
2 Switch on device and apply electrodes
3 Ask the patient about their well-being (note the suction strength of the electrodes)
4 Determine and adjust suction strength
5 Performing a measurement
6 Switch off the vacuum pump with the
7 The system switches off automatically after 10 seconds.
8 (Optional) After long periods of use and/or heavy perspiration by patients, the system can blow
out air by the pressing of the cleaning button.
9 Cleaning the electrodes (See. Chapter 7.2.1)
The lower the pressure level, the better the skin tolerance!
Étape 1 & 2: for smooth skin
Étape 3: for lightly-hairy skin
2
6, 8
User guide
/
Étape 4: for medium-hairy skin
Étape 5: for very hairy skin
button, the electrodes detach from the patient
ergo vac
4
