Operator' s Guide
6-Channel Modbus

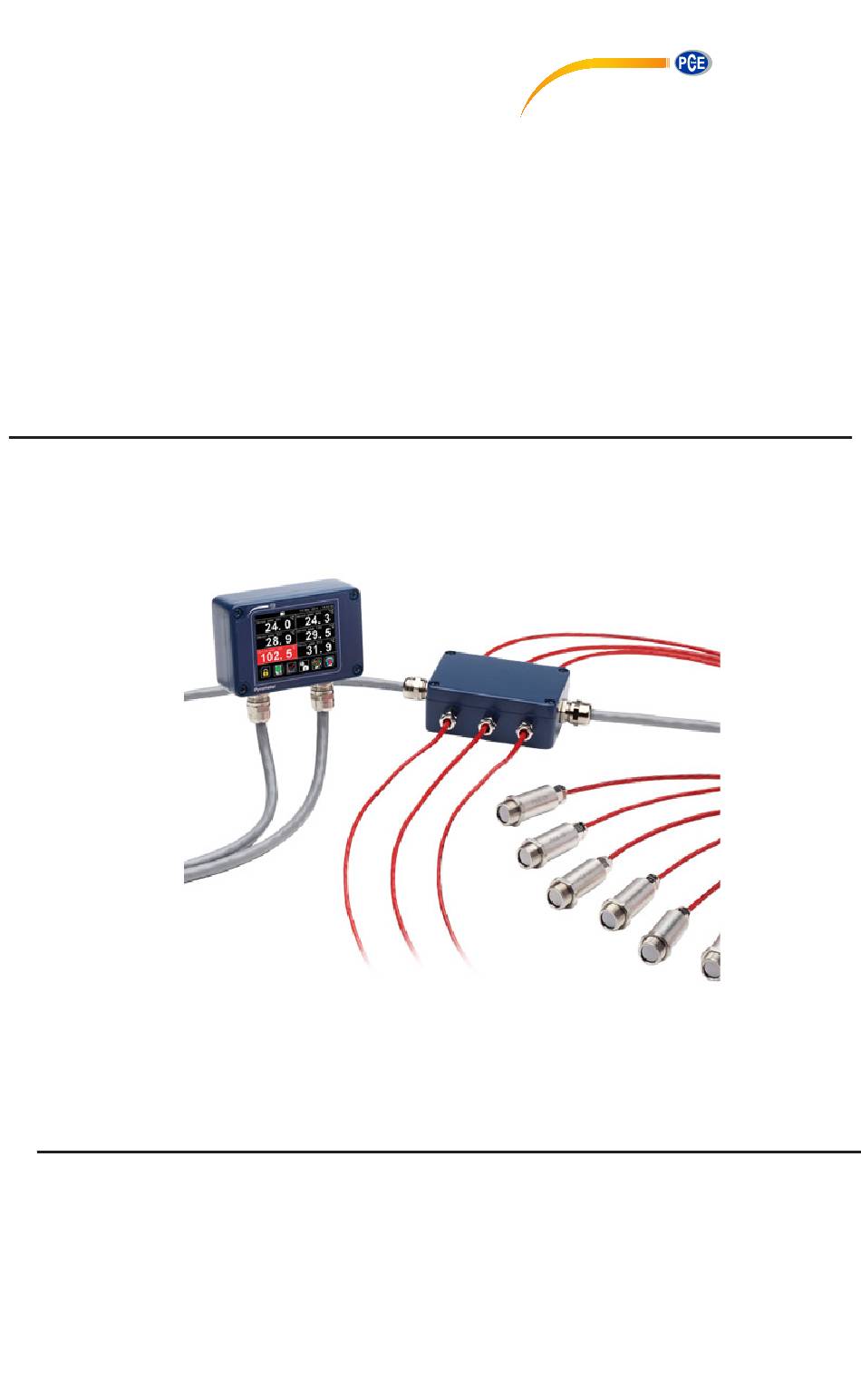

Infrared Thermometer PCE-IR 56
Advertisement
Table of Contents
Related Manuals for PCE Instruments PCE-IR 56
Summary of Contents for PCE Instruments PCE-IR 56
- Page 1 United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@industrial-needs.com www.pce-instruments.com/english www.pce-instruments.com Operator’ s Guide 6-Channel Modbus Infrared Thermometer PCE-IR 56...
-
Page 2: Specifications

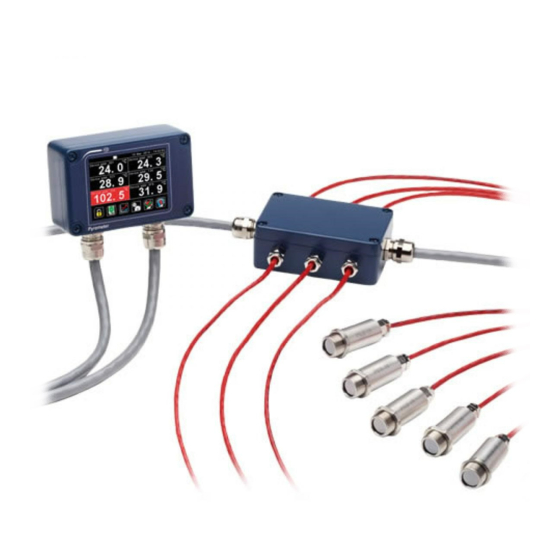

The P C E - I R 5 6 PCE Instruments infrared temperature sensors. The P C E - I R 5 6 functions as the Modbus Master on an RS485 network of up to 6 temperature sensors, and can itself be connected as a slave device to another RS485 network via a second, isolated Modbus interface. -
Page 3: Data Logging
Settings menu. If the PCE-IR 56 is connected via the slave interface to another Modbus network, logging may also be started remotely by the Modbus Master on that network. - Page 4 The MicroSD Card and battery slots are located on the touch screen circuit board. Unscrew the lid of the PCE-IR 56 to access them. The battery is optional. With a battery tted, the internal clock will continue to run when the power is o .
- Page 5 PyroMiniBus PyroBus PyroMini or FibreMini sensor sensor sensor +24 V DC +12 V DC PASSWORD The default password is 1234. The password may be changed via the touch screen interface.
-
Page 6: Supported Functions
L e n g t h Description (words) 0x0000 MODBUS slave address 0x0001 Sensor identi cation string in ASCII "PCE-IR 56 vx.xx" where x.xx is the rmware version 0x0008 Serial number 0x000A Sample Period (1 to 86400) 0x000C Number of Samples (0 to 86400) - Page 7 SENSOR SETTINGS ADDRESS SPACE The settings of attached sensors can be read by adding the following offsets to the addresses speci- fied by the sensor manufacturer: Sensor index Address offset 0x1000 0x1100 0x1200 0x1300 0x1400 0x1500 0x1600 See sensor manual for further details. Notes: 1.
